Middle Atlantic BANGLE-4 – 4-Bay BGR Raised Floor Support Angles, Pair

Product Overview

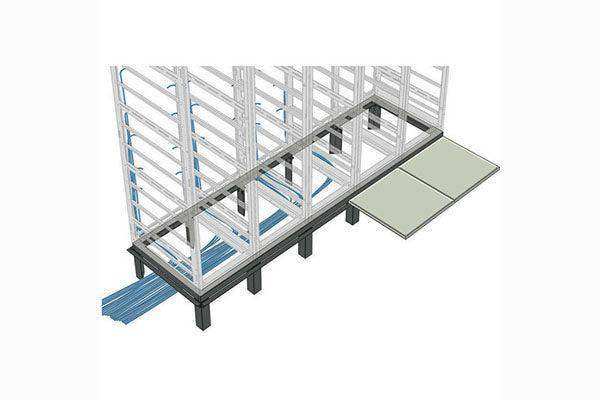

The Middle Atlantic BANGLE-4 is a pair of 4-bay raised floor support angles for BGR Series rack installations on access flooring. Used with the RIB-4-BGR-27 Riser Base and VFEET-4-12 Raised Floor Riser Feet, the angles support the surrounding floor tiles where the rack base interrupts the raised floor grid. Each angle is formed from 11-gauge steel, phosphate pre-treated, and finished in a durable black powder coat. For data center and equipment room projects on raised floors, the BANGLE-4 completes a properly supported BGR riser installation.

Product Description

Mounting a multi-bay rack system on access flooring introduces a structural detail that is easy to overlook at the design stage: once the riser base penetrates the floor grid, the adjacent floor tiles lose part of their perimeter support. The BANGLE-4 raised floor support angles restore that support for 4-bay BGR Series configurations. Installed with the RIB-4-BGR-27 Riser Base and VFEET-4-12 Raised Floor Riser Feet, the angles carry the tile edges around the rack footprint so the floor remains stable for technicians, equipment carts, and day-to-day traffic in the equipment room. This is the kind of commercial integration hardware that prevents callbacks, because sagging or rocking tiles next to a loaded enclosure become both a safety issue and a service nuisance. Middle Atlantic forms each angle from 11-gauge steel, giving the part the section strength to handle floor loading without deflection. A phosphate pre-treatment under the black powder coat improves coating adhesion and corrosion resistance, which matters in under-floor environments where conditioned air and condensation can reach the hardware. The pair covers a 4-bay installation; match the angle model to your bay count when laying out the riser system. Source the complete BGR riser ecosystem, including bases and riser feet, from the Middle Atlantic collection at Creation Networks.

Key Features

• Raised Floor Tile Support — Supports access floor tiles around a 4-bay BGR rack riser installation.
• System-Matched Hardware — Designed for use with the RIB-4-BGR-27 Riser Base and VFEET-4-12 Raised Floor Riser Feet.
• 11-Gauge Steel Construction — Heavy-gauge steel resists deflection under floor loading.
• Phosphate Pre-Treatment — Surface preparation improves finish adhesion and corrosion resistance in under-floor environments.
• Durable Black Powder Coat — Finish stands up to installation handling and long-term service.
• Sold as a Pair — Two angles cover a complete 4-bay BGR floor support installation.

Technical Specifications
