Middle Atlantic BANGLE-2 – 2-Bay BGR Raised Floor Support Angles, Pair

Product Overview

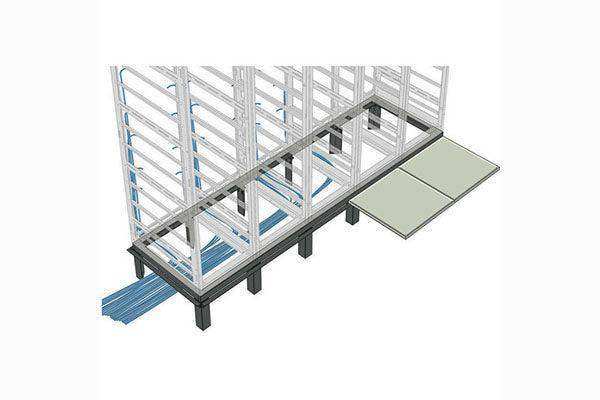

The Middle Atlantic BANGLE-2 is a pair of raised floor support angles for 2-bay BGR Series rack installations. When a BGR enclosure is installed on an access floor using the RIB-2-BGR-27 Riser Base and VFEET-2-12 Raised Floor Riser Feet, these angles support the surrounding floor tiles where they meet the rack footprint. Constructed from 11-gauge steel with a phosphate pre-treatment and black powder coat, they are a purpose-built piece of BGR raised floor hardware rather than a field-fabricated workaround.

Product Description

Installing a heavy BGR Series rack on a raised access floor changes how the floor tiles around the rack are supported. The riser base and riser feet carry the rack load down to the structural slab, but the cut tiles around the rack opening still need a clean bearing edge. That is the job of the BANGLE-2 raised floor support angles. Designed for 2-bay BGR configurations, the pair installs with the RIB-2-BGR-27 Riser Base and VFEET-2-12 Raised Floor Riser Feet to provide support to the floor tiles at the rack location, keeping tile edges from sagging or rocking where they have been cut to fit the riser system. Each angle is formed from 11-gauge steel, giving it the section strength to carry tile loads in data center and equipment room environments. The steel is phosphate pre-treated before receiving a durable black powder coat, so the finish resists corrosion and wear under the floor where inspection is infrequent. For integrators specifying a complete BGR raised floor installation, the BANGLE-2 is the tile-support component of the documented Middle Atlantic system for 2-bay builds; matching angles are available for other bay counts. Sold as a pair to complete one 2-bay installation. See additional Middle Atlantic BGR rack hardware at Creation Networks.

Key Features

• Raised Floor Tile Support — Supports access floor tiles around a 2-bay BGR rack installed on a riser base system.
• System-Matched Design — Engineered for use with the RIB-2-BGR-27 Riser Base and VFEET-2-12 Raised Floor Riser Feet.
• 11-Gauge Steel Construction — Heavy-gauge steel provides the strength needed to carry floor tile loads reliably.
• Corrosion-Resistant Finish — Phosphate pre-treatment under a durable black powder coat protects the steel in under-floor environments.
• Sold as a Pair — Two angles complete one 2-bay BGR raised floor installation.
