Middle Atlantic BANGLE-1-38 – BGR Raised Floor Support Angles, 38" Pair

Product Overview

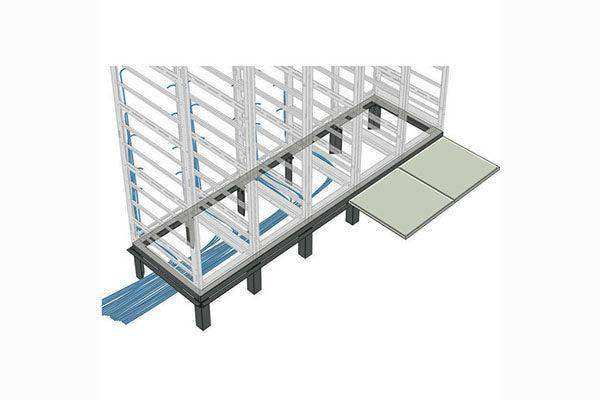

The Middle Atlantic BANGLE-1-38 is a pair of raised floor support angles engineered for installing a single-bay BGR series rack over raised access flooring. Sized for 38" (1067 mm) deep BGR enclosures, the angles transfer the rack load through the raised floor structure so the enclosure sits securely above the floor tiles. Heavy 11-gauge steel construction with a phosphate pre-treatment and black powder coat finish makes them a durable, corrosion-resistant mounting foundation for data center and equipment room builds.

Product Description

Raised access floors are standard in data centers, control rooms, and large AV head-end spaces, but floor tiles alone are not a proper anchor point for a loaded equipment rack. The BANGLE-1-38 raised floor support angles solve this by providing dedicated structural members beneath a single-bay BGR rack, allowing the enclosure to be secured over raised flooring rather than resting on tile. Each kit includes a pair of angles sized to match the footprint of a 38" (1067 mm) deep BGR series enclosure, Middle Atlantic's heavy-duty gangable rack platform for data and AV infrastructure. The angles are formed from 11-gauge steel, giving them the section strength needed to support fully loaded enclosures, and the phosphate pre-treatment under the black powder coat resists corrosion in conditioned underfloor environments. Using vendor-matched floor angles instead of fabricated brackets keeps the installation aligned with the BGR rack's mounting points and simplifies inspection and approval on commercial projects. For multi-bay BGR rows, Middle Atlantic offers companion BANGLE models sized for additional bays and depths, so a consistent support method can be carried across the entire lineup. This kit covers one bay at 38" depth and ships as a matched pair.

Key Features

• Purpose-Built for Raised Floors — Provides a secure structural mounting method for BGR racks installed over raised access flooring.
• Sized for 38" Deep BGR Racks — Matches the footprint of a single-bay 38" (1067 mm) BGR series enclosure.
• 11-Gauge Steel Construction — Heavy-gauge steel angles support the load of a fully populated equipment rack.
• Phosphate Pre-Treated — Surface treatment under the finish improves corrosion resistance in underfloor environments.
• Black Powder Coat Finish — Durable finish matches BGR series hardware and resists wear during installation.
• Sold as a Pair — One kit supplies both support angles required for a single rack bay.

Technical Specifications
