Middle Atlantic AXS-IR-4127-20 – AXS In-Rack 41SP 27"D 20"W

Product Overview

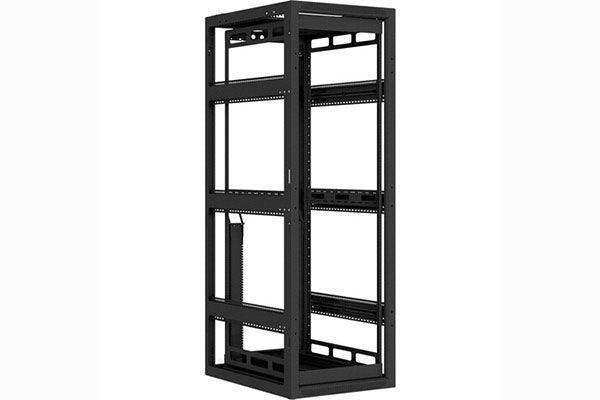

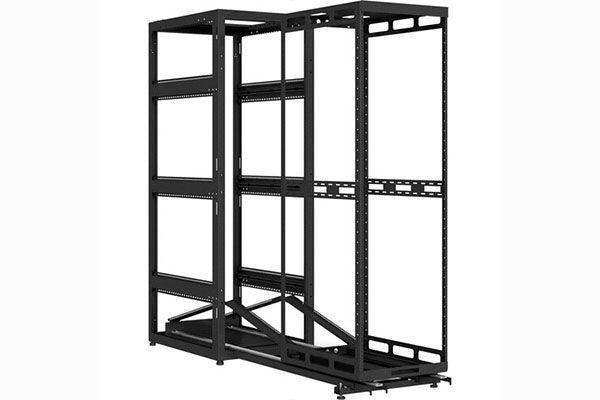

The Middle Atlantic AXS-IR-4127-20 is a 41-space, 27"-deep, 20"-wide integrated in-rack enclosure built for deployments where floor space and aisle clearance are limited. It combines a rigid welded steel frame with factory-configured cable management to reduce on-site integration time. The AXS series is designed for AV integrators and IT professionals who need a finished, rack-ready solution without custom fabrication.

Product Description

The AXS-IR-4127-20 provides 41 rack spaces in a 27"-deep, 20"-wide footprint — a configuration suited to medium-density AV and IT equipment loads where standard 24"-wide racks cannot fit. The welded steel frame delivers structural rigidity without requiring field assembly of the rack body. Factory-installed 10-32 threaded strip rails are positioned at the front and rear to accept standard rack-mount hardware. The 20" width allows installation in tight alcoves, closets, and under-counter spaces that a full-width rack would not accommodate. Cable entry is available at the top, bottom, and rear, supporting structured cabling and power distribution runs. The unit ships pre-configured, reducing the number of loose components an integrator must source and install separately. Ventilation clearances are maintained through the open-frame sides, making it compatible with passive and active cooling strategies. Available through Creation Networks, your authorized Middle Atlantic dealer at creationnetworks.net.

Key Features

• 41 Rack Spaces — Accommodates a full medium-density equipment load in a single enclosure.
• 27" Interior Depth — Fits most standard 1U–4U AV and IT equipment without rear obstruction.
• 20" Width — Designed for tight-space installations where standard 24" racks are too wide.
• Welded Steel Frame — Arrives structurally complete; no field assembly of the rack body required.
• 10-32 Threaded Rails — Front and rear rails accept standard rack-mount hardware.
• Multiple Cable Entry Points — Top, bottom, and rear openings support clean cable routing.
• Open-Frame Sides — Maintains airflow compatibility with passive and active cooling.

Typical Applications

• AV equipment closets with limited floor width
• Under-counter rack installations in conference rooms and classrooms
• Alcove or recessed rack bays in corporate and education facilities
• Secondary equipment racks in broadcast and production environments

Technical Specifications

Frequently Asked Questions

What equipment depth does this rack support?

The 27" interior depth accommodates most standard 1U–4U rack-mount equipment. Verify your deepest component's rear-connector-to-front-panel measurement before ordering.

Why choose 20" width over a standard 24" rack?

The 20" width is intended for installations where the available opening or alcove is narrower than a standard rack requires — common in retrofit commercial and residential AV projects.

Is this rack compatible with standard rack-mount hardware?

Yes. Front and rear rails are 10-32 threaded and accept standard cage nuts and rack screws.

Where can I order the AXS-IR-4127-20?

Available through Creation Networks, an authorized Middle Atlantic distributor.
