Middle Atlantic AXS-FAN-119 – 220-240V Slim Fan Kit for AXS Racks
Product Overview

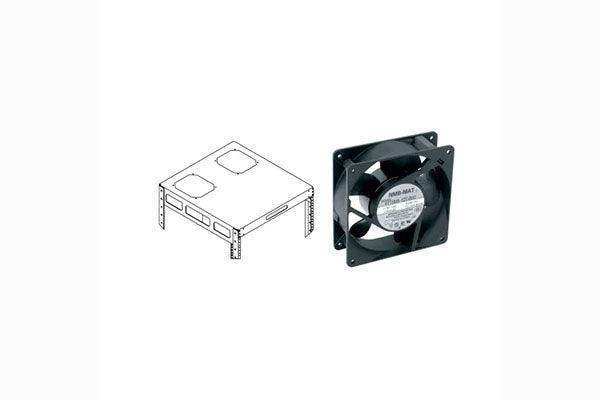

The Middle Atlantic AXS-FAN-119 is a 220-240VAC slim fan kit designed to fit AXS Series slide-out racks. The 4-1/2 in. ball-bearing fan moves 1.6 m³/min (approximately 57 CFM) at a quiet 30 dBA measured at 1 meter, making it suitable for noise-sensitive installations on international power. Assembly hardware and a power cord are included.
Product Description
AXS Series racks place equipment in tight cabinetry and millwork where heat can build quickly, and the AXS-FAN-119 provides the active cooling those installations need on 220-240V mains. Its slim profile is purpose-built to fit within the AXS rack frame without intruding on equipment space. The fan uses a smooth, long-life ball-bearing design for extra-quiet operation — rated at just 30 dBA at 1 meter — so it will not draw attention in living rooms, conference rooms, or other occupied spaces. Operating at 230V nominal, the 4-1/2 in. fan delivers 1.6 m³/min (about 57 CFM) of airflow to carry heat away from amplifiers, network gear, and source components. Built-in overtemp and fan failure notification via contact closure lets a control or monitoring system flag cooling problems before equipment is damaged. The kit ships with assembly hardware and a power cord, and the unit is CE compliant for international deployments. Note that fan guards are not included. For 120V North American installations, see the standard Middle Atlantic AXS-FAN, which offers the same slim AXS-specific design for domestic power. Order the AXS-FAN-119 from Creation Networks, an authorized Middle Atlantic dealer.
Key Features
- 220-240VAC Operation — 230V nominal fan for international and export installations; CE compliant.
- Quiet Ball-Bearing Design — Smooth, long-life ball bearings keep noise to 30 dBA at 1 meter.
- Slim AXS Fit — Low-profile design made to fit Middle Atlantic AXS Series racks.
- Effective Airflow — 4-1/2 in. fan rated at 1.6 m³/min (approx. 57 CFM).
- Failure Notification — Overtemp and fan failure alerts via contact closure for system monitoring.
- Complete Kit — Includes assembly hardware and power cord; fan guards not included.
Technical Specifications
| Model | AXS-FAN-119 |
|---|---|
| Product Type | Slim fan kit for AXS Series racks |
| Voltage | 220-240VAC (230V nominal) |
| Fan Size | 4-1/2 in. |
| Airflow | 1.6 m³/min (approx. 57 CFM) |
| Noise Level | 30 dBA at 1 meter |
| Bearing Type | Ball bearing |
| Monitoring | Overtemp and fan failure notification via contact closure |
| Compliance | CE |
| Included | Assembly hardware, power cord (fan guards not included) |
