Middle Atlantic AXS-38-26 26"DP AX-S,38 SPACE

Product Overview

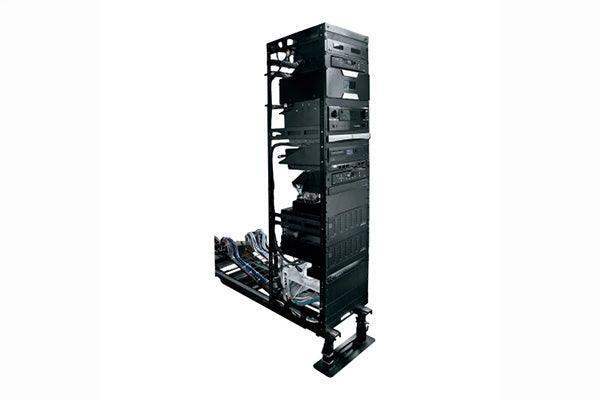

The Middle Atlantic AXS-38-26 is a 38-space, 26-inch-deep floor-standing AV rack from the AX-S Series, built for professional installations requiring substantial mounting capacity and full-depth equipment clearance. At 38 rack spaces, this model provides enough height to consolidate AV control, amplification, signal routing, power distribution, and network infrastructure in a single enclosure. The 26-inch depth eliminates the need for adapter rails with any standard full-depth rack equipment.

Product Description

The AXS-38-26 is fabricated on a welded steel frame with a black anodized finish, engineered for structural stability in high-density, long-term installations. The 26-inch internal depth accommodates enterprise network chassis, large power amplifiers, rack-mount UPS systems, and other full-depth hardware without modification. Front and rear 10-32 tapped rails at EIA-310 spacing ensure universal compatibility with equipment from all major AV and IT manufacturers. The open side-panel design enables passive convection cooling across a full 38U of equipment, reducing thermal risk in heavily loaded builds. Top and bottom cable pass-throughs provide clean paths for power, audio, video, and data cabling, keeping the front of the rack organized. Leveling feet are included and allow stable positioning on finished or uneven floors; optional caster accessories support in-building mobility. Locking doors are available as optional Middle Atlantic accessories for environments where access security is required. The rack frame integrates with the full Middle Atlantic accessory line, including panels, shelves, and blank fillers. All assembly hardware is included, and the rack ships knocked down to reduce shipping weight and freight costs. The AXS-38-26 meets UL and ETL listing standards for professional North American deployment.

Key Features

• 38 Rack Spaces — Large capacity for complete AV and IT system consolidation.
• 26-Inch Depth — Full-depth clearance for amplifiers, UPS, and enterprise network hardware.
• Welded Steel Frame — High load capacity and structural stability for permanent installs.
• EIA-310 Tapped Rails — 10-32 threaded, front and rear, for universal rackmount fit.
• Passive Convection Airflow — Open side panels reduce thermal buildup in dense builds.
• Integrated Cable Pass-Throughs — Top and bottom openings for organized cable routing.
• Leveling Feet Included — Stable placement on finished or uneven flooring.
• Middle Atlantic Accessory Compatible — Supports doors, shelves, blank panels, and casters.

Typical Applications

• Large boardroom and conference center AV racks
• Operations center and control room equipment builds
• Broadcast, production studio, and post-production facilities
• University and institutional AV system integration
• IT equipment rooms and network infrastructure deployments

Technical Specifications

Frequently Asked Questions

How deep is the AXS-38-26 internally?

The AXS-38-26 provides 26 inches of internal usable depth, which is 6 inches more than the AXS-38-20. This accommodates full-depth amplifiers, enterprise UPS systems, and deep network chassis without adapter rails.

Does this rack include locking doors?

No. The AXS-38-26 ships as an open rack. Optional locking front and rear doors are available separately from Middle Atlantic.

Can I mount casters on this rack?

Yes. Compatible Middle Atlantic caster accessories can be fitted to the AXS-38-26 for in-building mobility during installation or final positioning.

Where can I buy the AXS-38-26?

The AXS-38-26 is available through Creation Networks at creationnetworks.net.
