Middle Atlantic AXS-37-26 26"DP AX-S,37 SPACE

Product Overview

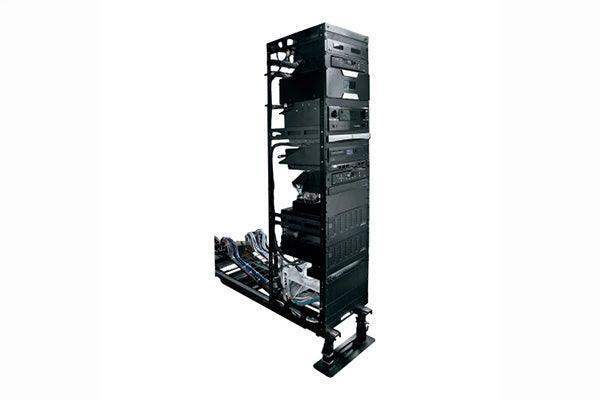

The Middle Atlantic AXS-37-26 is a 37-space, 26-inch-deep floor-standing AV rack from the AX-S Series, providing professional-grade mounting capacity for complex AV and IT system integration projects. The 26-inch internal depth supports full-depth rack equipment across 37 usable rack spaces, making this model a practical choice for consolidated single-rack builds that include control systems, signal distribution, power conditioning, and networking in one enclosure. It is designed for permanent installation environments where structural stability, cable organization, and long-term serviceability are priorities.

Product Description

The AXS-37-26 is built on a welded steel frame finished in black anodized coating, providing durability and corrosion resistance for long-term use in professional installations. The 26-inch internal depth accommodates full-depth rack hardware, including high-power amplifiers, enterprise UPS systems, and deep network chassis without requiring depth adapter rails. Front and rear 10-32 tapped rails are spaced at EIA-310 standard intervals for universal rackmount equipment compatibility. The open side-panel construction promotes passive convection airflow, which is particularly beneficial in high-density builds involving multiple active components. Cable pass-throughs at the top and bottom of the enclosure allow power, audio, video, and data cables to be routed cleanly without crossing the front of the rack. Leveling feet are included for stable placement on finished floors, and optional Middle Atlantic caster accessories enable mobility during installation. Locking doors are available as optional accessories to convert the open rack to a secured enclosure. Middle Atlantic blanks, shelves, and panels can be integrated directly into the AXS-37-26 frame to complete a custom build. The rack ships knocked down with all assembly hardware included to reduce shipping costs and simplify transport. The AXS-37-26 meets UL and ETL listing requirements for professional North American installations.

Key Features

• 37 Rack Spaces — Sufficient capacity for full AV control, signal, power, and networking in one rack.
• 26-Inch Depth — Clears full-depth amplifiers, UPS units, and enterprise networking hardware.
• Welded Steel Construction — Structural rigidity for heavy equipment loads in permanent installations.
• EIA-310 Compliant Rails — 10-32 tapped front and rear rails for universal compatibility.
• Open Airflow Design — Side panels support passive convection in dense equipment configurations.
• Top and Bottom Cable Pass-Throughs — Organized routing for all cable types without front-panel clutter.
• Leveling Feet Included — Stable positioning on any floor surface.
• Full Accessory Compatibility — Works with Middle Atlantic doors, shelves, panels, and casters.

Typical Applications

• Corporate boardroom and conference room AV consolidation
• Control room and command center equipment racks
• Broadcast and production studio builds
• Higher education and government facility AV integration
• IT equipment closets and data room deployments

Technical Specifications

Frequently Asked Questions

What is the internal depth of the AXS-37-26?

The AXS-37-26 provides 26 inches of internal usable depth, which is 6 inches deeper than the AXS-37-20 and sufficient for full-depth amplifiers, UPS units, and enterprise network hardware.

Are doors included?

The AXS-37-26 ships as an open rack without doors. Locking front and rear doors are available as optional Middle Atlantic accessories.

Can I add casters to this rack?

Yes. Middle Atlantic caster accessories are compatible with the AXS-37-26 for installation mobility or repositioning.

Where can I purchase the AXS-37-26?

The AXS-37-26 is available through Creation Networks at creationnetworks.net.
