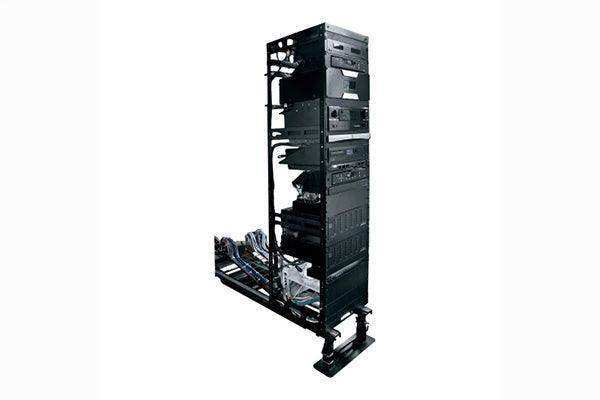

Middle Atlantic AXS-34-26 26"DP AX-S,34 SPACE

Product Overview

The Middle Atlantic AXS-34-26 is a 34-space, 26-inch-deep floor-standing AV rack engineered for installations where rack depth is a critical constraint. Part of the AX-S Series, the AXS-34-26 delivers the same rugged steel construction and professional cable management provisions found across the line, in a footprint 6 inches deeper than the 20-inch variant to accommodate larger signal processors, amplifiers, and UPS units. With 34 rack spaces of usable mounting height, it suits mid-sized AV systems in boardrooms, control rooms, and equipment closets.

Product Description

The AXS-34-26 is built on a welded steel frame with a black anodized finish, providing long-term resistance to corrosion and wear in demanding installation environments. The 26-inch depth accommodates full-depth rack equipment including large power amplifiers, network switches, and enterprise UPS systems without requiring adapters or modified cable runs. Front and rear 10-32 tapped rails are spaced at standard EIA-310 intervals, ensuring compatibility with virtually any rackmountable equipment. The open side-panel design promotes natural convection airflow, reducing heat buildup across dense equipment loads. Integrated top and bottom cable pass-throughs allow clean routing of power, audio, video, and data cabling without cluttering the front of the rack. The rack ships with leveling feet for stable placement on uneven floors and casters are available as an accessory for mobile applications. Locking front and rear doors are available as optional accessories, making the AXS-34-26 adaptable to both open-bay and secured equipment room deployments. The rack frame accepts Middle Atlantic panel accessories, blanks, and shelves, enabling customized builds for any AV or IT integration project. All hardware is included for assembly, and the rack ships knocked down to reduce freight costs. The AXS-34-26 is backed by Middle Atlantic's warranty and is manufactured to meet UL and ETL listing requirements.

Key Features

• 34 Rack Spaces — Ample mounting capacity for mid-sized AV and IT equipment builds.
• 26-Inch Depth — Fits full-depth amplifiers, UPS units, and network hardware without adapters.
• Welded Steel Construction — Provides structural rigidity for heavy equipment loads.
• EIA-310 Compliant Rails — 10-32 tapped front and rear rails accept standard rackmount hardware.
• Open Convection Design — Side panels promote airflow to reduce thermal buildup.
• Integrated Cable Pass-Throughs — Top and bottom openings route cabling cleanly inside the rack.
• Leveling Feet Included — Ensures stable positioning on uneven or finished flooring.
• Accessory Compatible — Accepts Middle Atlantic doors, panels, shelves, and blank panels.

Typical Applications

• Corporate boardroom and conference room AV systems
• Control room equipment racks
• Broadcast and production studio installations
• Education AV system integration
• Equipment closet and server room deployments

Technical Specifications

Frequently Asked Questions

How does the AXS-34-26 differ from the AXS-34-20?

The AXS-34-26 offers 26 inches of internal depth versus 20 inches, accommodating larger power amplifiers, enterprise UPS units, and full-depth network hardware that would not fit in the shallower model.

Are doors included with the AXS-34-26?

Doors are available as optional accessories. The base unit ships as an open rack to maximize airflow flexibility; locking front and rear doors can be added to suit secured equipment room requirements.

Can I add casters to this rack?

Yes. Middle Atlantic caster accessories are compatible with the AXS-34-26, enabling the rack to be repositioned on the job site or used in mobile applications.

Where can I purchase the AXS-34-26?

The AXS-34-26 is available through Creation Networks at creationnetworks.net.
