Middle Atlantic AX-SXR-33 20"DP AX-SXR,33 SPACE

Product Overview

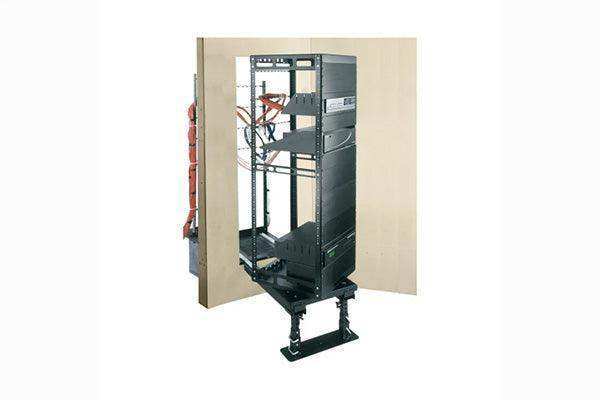

The Middle Atlantic AX-SXR-33 is a 33-space, 20"-deep floor-standing rack designed for AV installations where standard rack depth is unavailable. Its shallow 20" cabinet profile fits comfortably in wiring closets, under-counter spaces, and AV back-of-house rooms without sacrificing structural integrity. Standard 10-32 tapped rails and numbered rack spaces simplify equipment mounting and future serviceability. Available from Creation Networks at creationnetworks.net.

Product Description

The AX-SXR-33 belongs to Middle Atlantic's AX-SXR series, a line of shallow-depth, side-access racks built for environments where a standard 24" or deeper rack enclosure will not fit. At 33 rack spaces and only 20" deep, this unit is well-suited for wiring closets, closet-based AV systems, and under-counter AV furniture. The welded steel frame uses Middle Atlantic's interlocking corner joint construction for a rigid chassis that does not require extensive on-site assembly. Front and rear 10-32 threaded rack rails are fixed and include numbered spaces for clean documentation and fast equipment identification. The open-frame side-access design lets technicians install or service gear from the sides without reaching over the top. Cable management accessories from the Middle Atlantic ecosystem mount directly to the frame. The floor-standing base provides stability without wall anchoring in most installations, with anchor provisions for seismic or high-traffic environments. This rack ships ready to accept equipment and requires no special tools for rail installation.

Key Features

• 33 Rack Spaces — Accommodates a full complement of 1U to multi-U AV and IT equipment in a compact footprint.
• 20" Cabinet Depth — Fits in shallow wiring closets, under-counter installations, and back-of-house rooms where standard-depth racks will not.
• 10-32 Tapped Rails — Compatible with standard rack hardware; numbered spaces aid documentation and future changes.
• Side-Access Design — Allows equipment installation and service from the sides, improving ergonomics in tight spaces.
• Welded Steel Construction — Interlocking corner joints provide structural rigidity and straightforward assembly.
• Floor-Standing Base — Stable freestanding installation; anchor provisions available for seismic compliance.
• Middle Atlantic Ecosystem Compatible — Accepts standard MA cable management, power, and ventilation accessories.

Typical Applications

• Wiring closets with limited floor depth
• Under-counter AV equipment installations
• AV back-of-house and equipment rooms with space constraints
• House of worship and education AV systems in tight utility spaces
• Corporate AV rack builds where full-depth racks are not permitted

Technical Specifications

Frequently Asked Questions

What is the rack depth of the AX-SXR-33?

The AX-SXR-33 has a 20" cabinet depth, suitable for shallow-depth installations where standard 24"+ racks will not fit.

What rail thread standard does the AX-SXR-33 use?

It uses standard 10-32 tapped rails, compatible with the vast majority of rack-mount AV and IT equipment.

Can the AX-SXR-33 be used with Middle Atlantic cable management accessories?

Yes. The AX-SXR series is compatible with Middle Atlantic's standard cable management, power distribution, and ventilation accessory lines.

Where can I purchase the AX-SXR-33?

The AX-SXR-33 is available through Creation Networks at creationnetworks.net.
