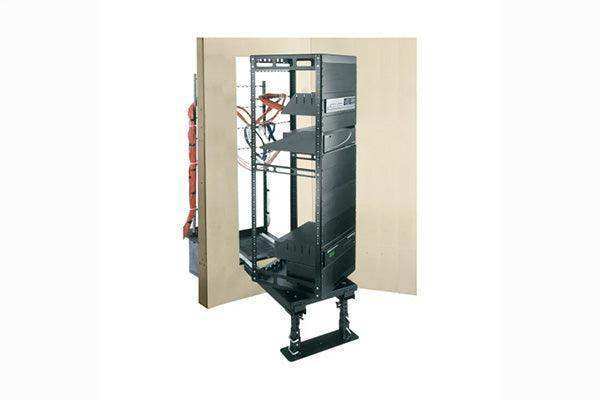

Middle Atlantic AX-SXR-28 – 28SP 20" Shallow AV Rack

Product Overview

The Middle Atlantic AX-SXR-28 delivers 28 rack spaces within a 20-inch-deep enclosure, representing one of the highest-capacity configurations available in the Middle Atlantic AX-SXR shallow rack series. For AV integrators and IT managers specifying a 20-inch deep rack mount with 28U for a large-scale commercial system, the AX-SXR-28 is the definitive choice in this shallow AV equipment rack line. It brings full enterprise-level mounting capacity into installations that cannot accommodate standard-depth enclosures.

Product Description

At 28 rack spaces and 20" of usable depth, the AX-SXR-28 is engineered for the most demanding shallow rack applications in commercial AV and IT: large auditoriums, broadcast studios, data-and-AV convergence rooms, and any facility where a 30" or 36" rack would require architectural modifications to install. The Side-X-Rail design provides side access to all 28 10-32 tapped rail positions — a critical feature when a 28U rack is pushed against a wall or placed in an enclosed equipment bay where front-only servicing is not practical. All 28 positions are factory-tapped to 10-32, so no cage nut hardware is needed anywhere in the rack; this is a significant time saving on a fully populated 28U installation. The heavy-gauge all-steel frame is rated for the cumulative structural load of 28U of commercial equipment, including high-current amplifiers, rackmount UPS units, and large video distribution systems. The AX-SXR-28 is the top of the recommended range for integrators who need shallow rack capacity without stepping up to the extended AX-SXR configurations. It is compatible with the complete Middle Atlantic AX accessory catalog, ensuring consistent fit and finish across multi-rack installations. Purchase the AX-SXR-28 at creationnetworks.net and explore the full AX-SXR series for adjacent space count options.

Key Features

• 28U Capacity — Maximum shallow rack capacity for enterprise AV and IT deployments.
• 20" Usable Depth — Enterprise-level capacity in a shallow enclosure that fits depth-restricted spaces.
• Side-X-Rail Access — Side access across all 28 rail positions for enclosed bay and wall-adjacent installations.
• 10-32 Tapped Rails — All 28U factory-tapped; no cage nuts anywhere in the rack.
• 19" EIA-310 Compatible — Accepts all professional 19" rackmount equipment including enterprise UPS units.
• Heavy-Gauge All-Steel Frame — Structural integrity for fully loaded 28U enterprise deployments.
• Full AX Catalog Compatibility — Works with all Middle Atlantic AX accessories for consistent multi-rack installations.
• Floor-Standing Configuration — Stable, permanent installation footprint for commercial environments.

Typical Applications

• Large auditorium and performance venue AV equipment rooms
• Broadcast studio and production support racks
• Data-and-AV convergence closets in enterprise facilities
• Multi-rack AV system installations requiring shallow enclosures
• Facilities where standard-depth racks require architectural modifications

Technical Specifications

Frequently Asked Questions

Is the AX-SXR-28 the largest model in the AX-SXR series?

No. The AX-SXR series extends to 43 rack spaces. The AX-SXR-28 is the largest of the 14 active models in this commercial product listing range.

What is the advantage of 28U in a shallow rack over a smaller AX-SXR model?

The AX-SXR-28 supports full enterprise system builds — including UPS, dual DSP, multiple amplifiers, and comprehensive network infrastructure — that smaller models cannot accommodate in a single enclosure.

How does the AX-SXR-28 handle thermal management for a full 28U load?

Middle Atlantic AX-series fan panels and vented blanks are compatible accessories. For high-density thermal loads, contact creationnetworks.net for a thermal management recommendation.

Can the AX-SXR-28 be used in a broadcast studio environment?

Yes. The 28U capacity and 20" depth suit broadcast production support racks where full-depth racks are impractical in control room or production suite installations.

Where can I purchase the AX-SXR-28?

The AX-SXR-28 is available at creationnetworks.net. The full AX-SXR series is also available there for adjacent space count specifications.
