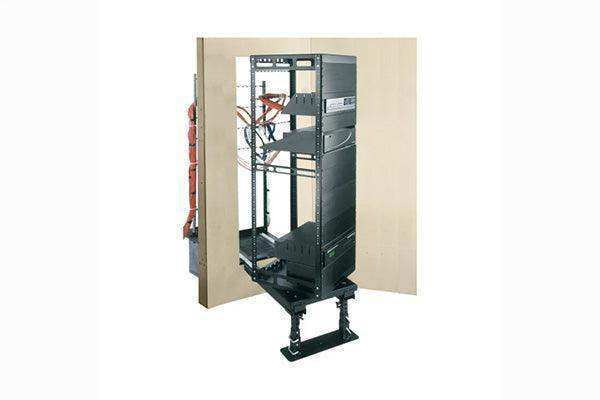

Middle Atlantic AX-SXR-26 – 26SP 20" Shallow AV Rack

Product Overview

The Middle Atlantic AX-SXR-26 is a 26-space, 20-inch-deep shallow rack that brings near-full-size rack capacity into the Middle Atlantic AX-SXR shallow rack product line. For AV integrators and IT managers who need a 20-inch deep rack mount with 26U for a large commercial system build, the AX-SXR-26 is a direct answer. This AX series rack commercial AV unit is designed for permanent installations in facilities where depth restrictions have historically forced compromises on system design.

Product Description

With 26 rack spaces at 20" of usable depth, the AX-SXR-26 gives integrators the mounting capacity of a large traditional rack in a form factor that fits in wiring closets, equipment alcoves, and back-of-house AV rooms previously considered too shallow for serious system builds. The Side-X-Rail design delivers lateral access to all 26 10-32 tapped rail positions, enabling efficient installation and service in locations where front-of-rack access is obstructed. No cage nuts are needed — standard 10-32 screws thread directly into the tapped rails at all 26 positions, which accelerates job site installation timelines on multi-rack commercial projects. The heavy-gauge steel frame is sized to handle the combined weight of 26U of commercial AV gear including large-format amplifiers, multi-output video distribution equipment, and high-current power systems. The AX-SXR-26 is a core offering for integrators building AX series rack commercial AV systems at scale. It is fully compatible with Middle Atlantic's AX accessory catalog, maintaining a consistent look and functional compatibility across multi-rack installations. Available at creationnetworks.net.

Key Features

• 26U Capacity — Near-full-size capacity for large-scale AV and IT commercial builds.
• 20" Usable Depth — Shallow depth enables installation in previously impractical locations.
• Side-X-Rail Access — Lateral access to all 26 rail positions for obstructed front-of-rack environments.
• 10-32 Tapped Rails — All 26 positions factory-tapped; no cage nut hardware required.
• 19" EIA-310 Standard — Full compatibility with professional 19" rackmount equipment.
• Heavy-Gauge Steel Frame — Handles the combined load of fully populated 26U commercial deployments.
• AX Series Accessory Compatible — Matches Middle Atlantic AX blanks, power, and cable management.

Typical Applications

• Large-scale commercial AV infrastructure builds
• Multi-room AV system equipment rooms
• AX series rack commercial AV installations requiring 26U
• Facilities with wiring closets too shallow for conventional racks
• Entertainment venue and event space AV back-end rooms

Technical Specifications

Frequently Asked Questions

What types of facilities benefit most from the AX-SXR-26?

Facilities with wiring closets or AV rooms built before modern AV racks became standard — older office buildings, renovated historic structures, and venues with under-stage or in-wall equipment spaces benefit most from the 20" depth.

How does the AX-SXR-26 handle multi-rack commercial projects?

The consistent AX-SXR specification across all sizes means accessories, blanks, and power management ordered for any AX-SXR model will also fit the AX-SXR-26, simplifying multi-rack procurement.

Can the AX-SXR-26 be used for IT infrastructure as well as AV?

Yes. The 10-32 tapped rails and EIA-310 standard support standard IT rackmount hardware including 1U servers, patch panels, and network switches.

Is the AX-SXR-26 floor-standing only?

Yes, the AX-SXR-26 is a floor-standing unit. Contact creationnetworks.net for alternative mounting configurations if needed.

Where can I order the AX-SXR-26?

Order the AX-SXR-26 at creationnetworks.net.
