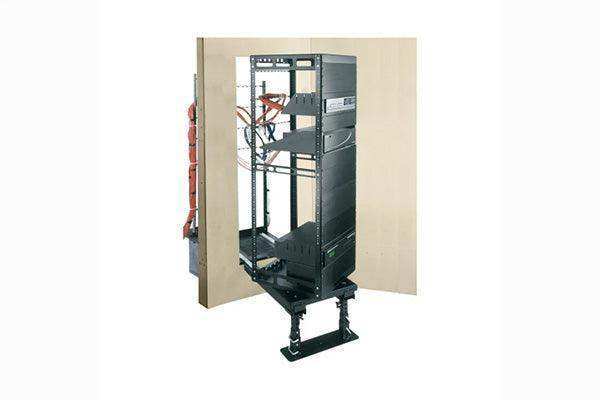

Middle Atlantic AX-SXR-25 – 25SP 20" Shallow AV Rack

Product Overview

The Middle Atlantic AX-SXR-25 offers 25 rack spaces within a 20-inch-deep enclosure, providing significant mounting capacity in the compact Middle Atlantic AX-SXR shallow rack format. For integrators and IT managers who need a 20-inch deep rack mount with 25U of capacity for a demanding commercial AV or network installation, the AX-SXR-25 delivers without requiring the floor or wall space of a full-depth enclosure. Its 25U profile suits large wiring closet rack installations and AV equipment rooms with depth constraints.

Product Description

The AX-SXR-25 brings 25 rack spaces to the shallow rack category, enabling integrators to mount a large-format AV or IT system in a location that a 30" or 36" deep rack simply cannot occupy. The Side-X-Rail design gives technicians lateral access to the 10-32 tapped rails, which is critical when the rack is in a large wiring closet rack installation with limited front clearance. All 25 positions are factory-tapped to 10-32, so rack screws thread directly into the rails without cage nuts or adapters. The commercial-grade steel construction supports the full structural load of 25U of equipment in a permanent installation. Integrators working on large-scale corporate, healthcare, or education AV infrastructure projects will find the AX-SXR-25 provides the mounting capacity of a large rack while fitting within the spatial constraints of an existing equipment closet. Compatibility with the Middle Atlantic AX accessory family ensures consistent finish and interoperability with power management, blanks, and cable management solutions already in use. The AX-SXR-25 ships floor-standing and is available at creationnetworks.net.

Key Features

• 25U Capacity — Twenty-five rack spaces for large-scale AV and IT infrastructure builds.
• 20" Usable Depth — Large system capacity in a shallow wiring closet-compatible enclosure.
• Side-X-Rail Access — Lateral rail access for large wiring closet rack installations.
• 10-32 Tapped Rails — Factory-tapped across all 25U; cage nuts not required.
• 19" EIA-310 Compatible — Universal standard for all professional rackmount equipment.
• Commercial Steel Construction — Handles the structural demands of 25U permanent deployments.
• Full AX Accessory Support — Interoperable with Middle Atlantic AX power, blanks, and cable management.

Typical Applications

• Large corporate AV infrastructure installations
• Healthcare facility AV and IT equipment rooms
• Education campus AV wiring closets
• Large wiring closet rack deployments requiring 25U
• Depth-constrained spaces needing large-system capacity

Technical Specifications

Frequently Asked Questions

Is the AX-SXR-25 suitable for a healthcare AV installation?

Yes. The 25U capacity and shallow 20" depth make it appropriate for healthcare AV rooms and IT closets where infection control and space constraints often preclude full-depth racks.

How does the AX-SXR-25 differ from the AX-SXR-24?

One additional rack space: the AX-SXR-25 has 25U versus 24U. All other specifications are identical.

Can I use the AX-SXR-25 in a shared IT and AV rack environment?

Yes. The 10-32 tapped rails and EIA-310 standard mean IT patch panels, network switches, and AV equipment all mount using the same hardware.

Are Middle Atlantic AX power conditioners compatible with the AX-SXR-25?

Yes. Middle Atlantic AX-series power management products are fully compatible and available at creationnetworks.net.

What is the lead time for the AX-SXR-25?

Contact creationnetworks.net for current stock and lead time information.
