Middle Atlantic AX-SXR-24 – 24SP 20" Shallow AV Rack

Product Overview

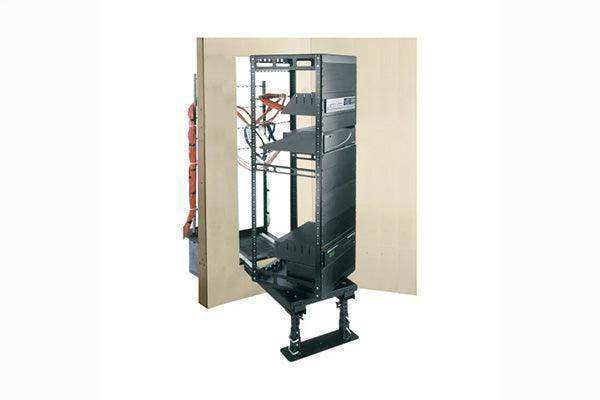

The Middle Atlantic AX-SXR-24 provides 24 rack spaces within a 20-inch-deep enclosure — two full vertical feet of rackmount capacity in a Middle Atlantic AX-SXR shallow rack that fits depth-restricted commercial spaces. This 24U, 20-inch deep rack mount is a natural specification for integrators building out large conference rooms, broadcast support rooms, and government AV facilities where space efficiency is required. The AX-SXR-24 brings full-size AV system capacity into a shallow AV equipment rack footprint.

Product Description

At 24 rack spaces and 20" of usable depth, the AX-SXR-24 is a high-capacity shallow rack for installations that cannot accommodate full-depth enclosures but cannot afford to sacrifice mounting capacity. The Side-X-Rail design provides side access to the 10-32 tapped rails, which is valuable in government facilities, broadcast support rooms, and other environments where racks are built into furniture or mounted in enclosed bays. All 24 rail positions are factory-tapped to 10-32, eliminating cage nut hardware from the installation workflow entirely. The commercial-grade steel structure handles the weight of a fully populated 24U system, including high-current power conditioners and large format video processing equipment. AV integrators who specify a shallow AV equipment rack for large-venue installs will find that the 24U capacity matches well with major AV system design templates. The AX-SXR-24 is compatible with Middle Atlantic's full AX accessory catalog, and the consistent specification across the AX-SXR family means that blanks, power strips, and cable managers ordered for other AX-SXR sizes will also fit this unit. Order at creationnetworks.net.

Key Features

• 24U Capacity — High-capacity 24 rack spaces for large AV and broadcast installations.
• 20" Usable Depth — Shallow depth for built-in furniture and enclosed bay installations.
• Side-X-Rail Access — Lateral rail access for government and broadcast enclosed equipment bays.
• 10-32 Tapped Rails — Factory-tapped rails across all 24U; no cage nuts required.
• 19" EIA-310 Compatible — Accepts all professional 19" rackmount equipment.
• Commercial-Grade Steel — Rated for the structural demands of fully loaded 24U deployments.
• AX Accessory Ecosystem — Compatible with Middle Atlantic AX blanks, power, and cable management.

Typical Applications

• Large conference room and boardroom AV racks
• Broadcast support room equipment enclosures
• Government facility AV and IT equipment rooms
• Built-in furniture AV equipment bays
• Depth-restricted spaces requiring 24U capacity

Technical Specifications

Frequently Asked Questions

Can the AX-SXR-24 fit into a built-in furniture AV bay?

The 20" depth is compatible with many built-in furniture AV bay designs. Verify the bay's available depth — typically 20"–22" — before ordering.

Is 24U considered a large or standard rack size?

24U is a large rack size, typically used for full AV system builds in large conference rooms, broadcast facilities, and government AV rooms.

What AV equipment fits in the AX-SXR-24?

Any standard 19" EIA-310 device with a chassis depth of 20" or less — including video processors, amplifiers, DSP units, network switches, and patch panels.

How does the AX-SXR-24 differ from the AX-SXR-25?

One rack space: the AX-SXR-24 has 24U and the AX-SXR-25 has 25U. All other specifications are identical.

Where can I buy the AX-SXR-24?

The AX-SXR-24 is available at creationnetworks.net.
