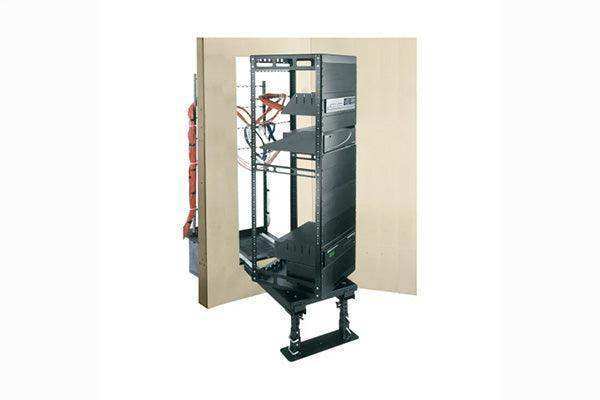

Middle Atlantic AX-SXR-20 – 20SP 20" Shallow AV Rack

Product Overview

The Middle Atlantic AX-SXR-20 is a 20-space, 20-inch-deep shallow rack that delivers a full half-rack of capacity within the compact Middle Atlantic AX-SXR shallow rack form factor. For AV integrators and IT managers, this 20-inch deep rack mount at 20U is a practical specification for back-of-house AV rooms, wiring closets, and wall alcoves where depth is constrained. The AX-SXR-20 is a proven under-counter rackmount enclosure option when 20 rack spaces are required without a standard-depth enclosure.

Product Description

Twenty rack spaces at 20" of usable depth gives the AX-SXR-20 a memorable specification: the number of spaces matches the depth in inches. This makes it easy to remember on job sites and simple to communicate to facilities managers. The Side-X-Rail design provides access to the mounting rails from the side, which is critical in under-counter rackmount enclosure applications where the front is fixed below a countertop or desk surface. All 20 positions use 10-32 tapped rails, delivering fast, tool-minimal equipment installation on busy integration job sites. The all-steel frame meets the durability requirements of permanent commercial installations in hospitality, corporate, and government facilities. Integrators specifying an under-counter rackmount enclosure will find the AX-SXR-20's side access and shallow depth combine to solve the constraints of counter-height installations efficiently. The AX-SXR-20 is compatible with the complete Middle Atlantic AX accessory catalog. Vented blanks, power conditioners, and cable management panels from the AX series all fit without modification. Available now at creationnetworks.net.

Key Features

• 20U Capacity — A full 20 rack spaces for complete AV or IT system integration.
• 20" Usable Depth — Shallow enclosure depth for under-counter and alcove installations.
• Side-X-Rail Access — Side rail access essential for counter-height equipment bays.
• 10-32 Tapped Rails — Fast equipment mounting without cage nuts.
• 19" EIA-310 Compatible — Accepts any standard 19" rackmount device.
• Permanent Commercial Build — All-steel construction for long-term deployed environments.
• Full AX Accessory Support — Compatible with all Middle Atlantic AX-series panels and accessories.

Typical Applications

• Under-counter rackmount enclosure installations at reception desks and workstations
• Hospitality and hotel AV equipment rooms
• Government and corporate AV wiring closets
• Shallow back-of-house AV rooms
• Counter-height equipment bays in retail environments

Technical Specifications

Frequently Asked Questions

What makes the AX-SXR-20 suited for under-counter installations?

The 20" depth keeps the rack within the footprint of most countertops, and the side-access rails allow servicing without pulling the rack forward.

Is 20U enough for a full AV system?

For most commercial AV system designs in mid-size rooms, 20U provides ample space for a complete signal chain including DSP, amplifiers, switcher, and power management.

Can I order the AX-SXR-20 with accessories included?

Accessories are sold separately. Contact creationnetworks.net for bundle pricing on blanks and power management.

What is the weight capacity of the AX-SXR-20?

For current load rating specifications, contact creationnetworks.net or refer to Middle Atlantic's published data sheet for the AX-SXR series.

Does the AX-SXR-20 come in other depths?

No. The AX-SXR series is a fixed 20" depth line. For deeper options, consider Middle Atlantic's other rack series available at creationnetworks.net.
