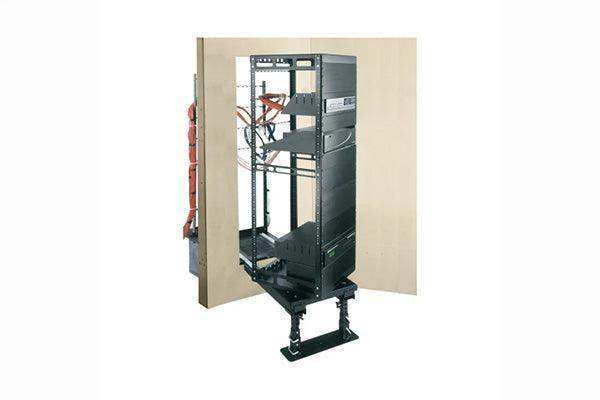

Middle Atlantic AX-SXR-19 – 19SP 20" Shallow AV Rack

Product Overview

The Middle Atlantic AX-SXR-19 provides 19 rack spaces in a 20-inch-deep enclosure, making it one of the most versatile sizes in the Middle Atlantic AX-SXR shallow rack lineup. A 19U shallow AV equipment rack at 20" depth fits naturally into wiring closets, back-of-house rooms, and wall alcoves where a compact rack integrator approach is required. The AX-SXR-19 handles full-featured commercial AV and IT system builds without the spatial footprint of a standard deep rack.

Product Description

With 19 rack spaces available in a 20" deep form factor, the AX-SXR-19 gives integrators a full rack unit count that aligns with many pre-designed AV system templates while keeping the enclosure shallow enough for restricted locations. The Side-X-Rail architecture enables side-mounted rail access — a feature that pays off in alcove builds, under-stair equipment rooms, and any space where the rack back is not easily reached. All 19 positions use 10-32 tapped rails, eliminating cage nut installation steps that slow down high-volume commercial projects. The steel frame is appropriate for long-term, permanent floor-standing use in commercial environments. This model is a natural fit for small wiring closet rack applications in offices, retail spaces, or academic buildings. The AX-SXR-19 pairs with Middle Atlantic's AX accessory line, including vented blanks, brush panels, and horizontal cable managers. Its specification is identical to every other AX-SXR model except for the 19U space count, making it straightforward to spec into any project that calls for a Middle Atlantic AX-SXR shallow rack at this capacity. Purchase at creationnetworks.net.

Key Features

• 19U Capacity — Nineteen rack spaces for full-featured AV and IT system installations.
• 20" Usable Depth — Shallow rack footprint for alcoves, closets, and depth-restricted spaces.
• Side-X-Rail Access — Rails reachable from the side for under-stair and alcove builds.
• 10-32 Tapped Rails — Direct-mount threading; no cage nuts required.
• 19" EIA-310 Compatible — Accepts all standard 19" professional rackmount equipment.
• Commercial Steel Construction — Built for permanent installations in commercial environments.
• AX Accessory Line Compatible — Works with vented blanks, brush panels, and cable managers.

Typical Applications

• Office IT and AV wiring closets
• Retail store AV and digital signage back-end racks
• Under-stair and wall alcove AV equipment rooms
• Small wiring closet rack installations in academic buildings
• Compact rack integrator deployments

Technical Specifications

Frequently Asked Questions

Why choose a 19U shallow rack over a deeper rack with the same space count?

A 19U shallow rack at 20" depth fits in locations a 19U standard rack cannot — wiring closets, alcoves, and under-counter spaces — without sacrificing rack unit capacity.

Is 19U a common size for AV system designs?

Yes. Many pre-designed AV system templates target rack counts in the 16–22U range, making the AX-SXR-19 a natural fit for off-the-shelf system designs.

Does the SXR-19 ship assembled?

Contact creationnetworks.net for current shipping and assembly details.

What accessories are recommended for the AX-SXR-19?

Middle Atlantic AX-series vented blanks, brush cable entry panels, and horizontal cable managers are commonly paired with this rack.

How does the AX-SXR-19 compare to the AX-SXR-20?

The AX-SXR-19 has one fewer rack space (19U vs 20U). All other specs are identical.
