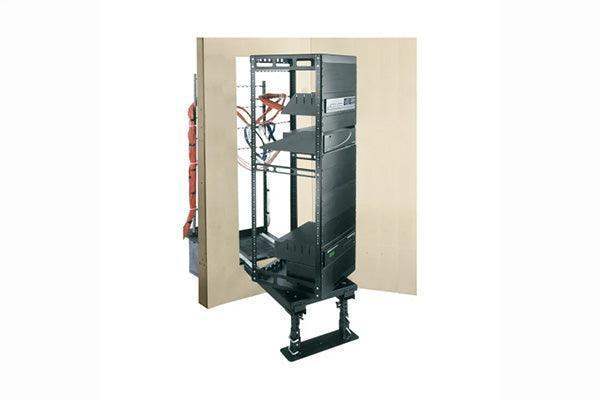

Middle Atlantic AX-SXR-17 – 17SP 20" Shallow AV Rack

Product Overview

The Middle Atlantic AX-SXR-17 is a 17-space, 20-inch-deep shallow rack designed for AV integrators and IT managers who need reliable rackmount capacity in depth-restricted environments. This Middle Atlantic AX-SXR shallow rack supports 17U of 19" EIA-310 equipment within a 20-inch deep rack mount form factor well suited to compact rack integrator workflows. The AX-SXR-17 is a strong candidate for wiring closets, under-counter installations, and any AV room where a standard-depth rack is simply too large.

Product Description

At 17 rack spaces and 20" of usable depth, the AX-SXR-17 is engineered to maximize equipment density without exceeding the tight spatial budgets common in commercial AV and IT installations. The Side-X-Rail (SXR) configuration provides lateral access to the mounting rails, allowing technicians to install and service equipment from the side — a meaningful advantage in alcoves or wall-recessed AV installations. All 17U positions feature 10-32 tapped holes, so equipment mounts directly with standard rack screws and no additional hardware. The all-steel frame is suited to permanent floor-standing use in back-of-house AV rooms and wiring closets alike. Integrators working on education AV systems, house-of-worship installs, or corporate conference room builds will find the 17U capacity accommodates a complete signal chain without overbuilding. The AX-SXR-17 is compatible with the full Middle Atlantic AX accessory ecosystem, including blanks, power conditioners, and vented panels. Its compact rack integrator profile means less material cost, less floor space consumed, and a cleaner overall installation. Available at creationnetworks.net.

Key Features

• 17U Capacity — Seventeen rack spaces for a complete, organized AV or IT build.
• 20" Usable Depth — Designed for spaces where standard racks will not fit.
• Side-X-Rail Access — Lateral rail access for alcove and wall-recess installations.
• 10-32 Tapped Rails — Tool-free cage nut elimination with direct-thread mounting.
• 19" EIA-310 Compatible — Universal compatibility with standard rackmount equipment.
• Permanent Installation Design — All-steel construction rated for long-term commercial use.
• AX Ecosystem Compatible — Full compatibility with Middle Atlantic AX blanks and accessories.

Typical Applications

• Education AV systems in classrooms and media rooms
• House-of-worship audio and video racks
• Corporate conference room AV installations
• Wiring closets with under-20" depth constraints
• Under-counter rackmount enclosure deployments

Technical Specifications

Frequently Asked Questions

Is the AX-SXR-17 suitable for a house-of-worship AV rack?

Yes. The 17U capacity handles a DSP, amplifiers, a media player, and network gear in a single compact unit that fits in a dedicated AV closet or alcove.

How does the side-access rail design help in tight spaces?

When a rack is recessed into a wall or placed in a narrow alcove, front-access-only racks can be difficult to service. The SXR design lets technicians reach the mounting rails from either side.

Can I use this rack on a wall or does it have to be floor-standing?

The AX-SXR-17 is configured as a floor-standing unit. For wall-mount options, contact creationnetworks.net for guidance.

What is the rail spacing standard?

The rails follow the standard 19" EIA-310 specification, the universal standard for professional rackmount equipment.

Are blanks included with the AX-SXR-17?

Blanks are sold separately. Middle Atlantic AX-series blanks and vented panels are fully compatible and available at creationnetworks.net.
