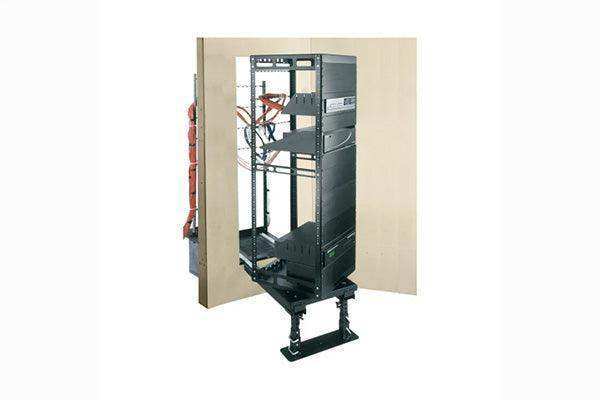

Middle Atlantic AX-SXR-16 – 16SP 20" Shallow AV Rack

Product Overview

The Middle Atlantic AX-SXR-16 delivers 16 rack spaces in a 20-inch-deep shallow rack profile purpose-built for professional AV and IT environments. This Middle Atlantic AX-SXR shallow rack fits where full-size enclosures cannot, making it a leading choice for the shallow AV equipment rack market. With 16U of capacity and a compact 20-inch deep rack mount footprint, the AX-SXR-16 handles demanding integrations in space-limited venues.

Product Description

The AX-SXR-16 provides 16 rack spaces of mounting capacity at just 20" of usable depth, striking the balance between storage capacity and physical footprint that many commercial installations demand. The Side-X-Rail construction allows the vertical mounting rails to be reached from the side, an advantage in tight back-of-house AV rooms where front access is restricted. Standard 10-32 tapped rails run the full 16U height, eliminating cage nut hardware from the installation process. The steel frame is engineered for the rigors of permanent commercial deployment, not temporary or portable use. AV integrators building out conference rooms, hospitality AV systems, or retail digital signage back-ends will find the 16U capacity hits a practical sweet spot. The AX-SXR-16 also suits side-access rack commercial applications where a contractor needs to work from the side rather than the front. Compatibility with the full Middle Atlantic AX accessory line means blanks, power management, and cable management options are all readily available. Sourced through creationnetworks.net, the AX-SXR-16 arrives ready for immediate integration.

Key Features

• 16U Capacity — Sixteen rack spaces for AV processors, network gear, and more.
• 20" Usable Depth — Shallow footprint for tight wiring closets and alcove installs.
• Side-X-Rail Access — Rail access from the side for efficient installation workflows.
• 10-32 Tapped Rails — Direct screw-in mounting; cage nuts not required.
• 19" EIA-310 Compatible — Accepts all standard 19" rackmount equipment.
• Commercial-Grade Steel — Built for long-term permanent installations.
• AX Accessory Compatible — Pairs with Middle Atlantic AX-series blanks, power strips, and panels.

Typical Applications

• Conference room AV equipment racks
• Hospitality and hotel back-of-house AV rooms
• Side-access rack commercial installations
• Wiring closets with restricted front access
• Retail digital signage equipment enclosures

Technical Specifications

Frequently Asked Questions

How many devices can I mount in the AX-SXR-16?

Up to 16U of standard 19" rackmount equipment. A 1U device takes one space; a 2U device takes two, and so on.

Do I need special hardware to mount equipment?

No. The 10-32 tapped rails accept standard 10-32 rack screws directly — no cage nut tool or inserts required.

Is 20" deep enough for most AV equipment?

Yes for the majority of AV processors, amplifiers, switches, and patch panels. Verify the chassis depth of any equipment before ordering.

Can I add a door or side panels to the AX-SXR-16?

Middle Atlantic offers compatible enclosure accessories. Contact creationnetworks.net for accessory recommendations.

What is the difference between the AX-SXR-16 and larger models?

Only the number of rack spaces differs. All other specifications — depth, rail type, construction, and compatibility — are identical across the AX-SXR series.
