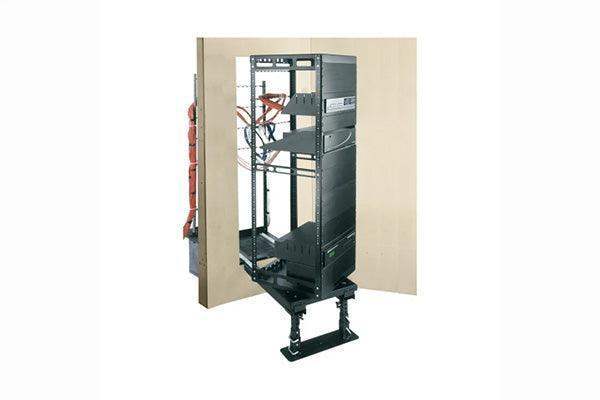

Middle Atlantic AX-SXR-15 – 15SP 20" Shallow AV Rack

Product Overview

The Middle Atlantic AX-SXR-15 is a 15-space, 20-inch-deep shallow rack engineered for professional AV and IT installations where full-depth enclosures are not practical. As a compact Middle Atlantic AX-SXR shallow rack, the AX-SXR-15 delivers full 19" EIA-310 compatibility in a 20-inch deep rack mount footprint. It is the right choice for wiring closets, back-of-house AV rooms, and any space-constrained environment requiring a reliable small wiring closet rack.

Product Description

The AX-SXR-15 provides 15 rack spaces (15U) of mounting capacity within a 20" usable depth — a dimension that opens installations that standard 24" or 30" deep racks simply cannot fit. The Side-X-Rail (SXR) design means the vertical rails are accessible from the side, simplifying cable management and equipment installation without requiring full front access. All 15 spaces are fitted with 10-32 tapped rails, accepting standard rackmount hardware without the need for cage nuts. The all-steel construction meets the structural demands of permanent commercial AV installations. AV integrators will appreciate the clean, uncluttered interior that keeps short-depth amplifiers, processors, and network switches organized. The AX-SXR-15 is equally at home in under-counter rackmount enclosure applications where vertical space is at a premium. Middle Atlantic's manufacturing consistency means this unit pairs directly with matching accessory panels, blanks, and power strips from the AX product family. At $1,795, the AX-SXR-15 is a purpose-built solution for integrators who refuse to compromise on build quality in tight spaces.

Key Features

• 15U Capacity — Accommodates 15 standard rack spaces of AV and IT equipment.
• 20" Usable Depth — Fits installations where full-depth racks are not an option.
• Side-X-Rail Access — Side-accessible rails simplify installation and cable routing.
• 10-32 Tapped Rails — Accepts standard rackmount screws; no cage nuts required.
• 19" EIA-310 Compatible — Mounts any standard 19" rackmount equipment.
• All-Steel Construction — Built for permanent commercial AV deployments.
• AX Family Compatible — Works with Middle Atlantic AX-series accessories and panels.

Typical Applications

• Wiring closets and IDF rooms with limited depth
• Back-of-house AV equipment rooms
• Under-counter rackmount enclosure installations
• Wall alcove AV system builds
• Small conference room AV racks

Technical Specifications

Frequently Asked Questions

What equipment fits in the AX-SXR-15?

Any standard 19" EIA-310 rackmount device up to 20" deep, including amplifiers, AV processors, network switches, patch panels, and power conditioners.

Does this rack require cage nuts?

No. The AX-SXR-15 uses 10-32 tapped rails, so standard 10-32 screws thread directly into the rail without cage nuts.

What makes this a "shallow" rack?

The 20" usable depth is significantly shorter than standard 24"–30" racks, allowing installation in wiring closets, alcoves, and under-counter spaces where deeper racks will not fit.

Is the AX-SXR-15 compatible with Middle Atlantic accessories?

Yes. It is part of the AX product family and accepts matching blanks, power strips, and accessory panels from Middle Atlantic's AX series.

Where can I purchase the AX-SXR-15?

The AX-SXR-15 is available at creationnetworks.net.
