Middle Atlantic AVIP-SF2 – 2RU Swing-Out AVIP Connector Panel

Product Overview

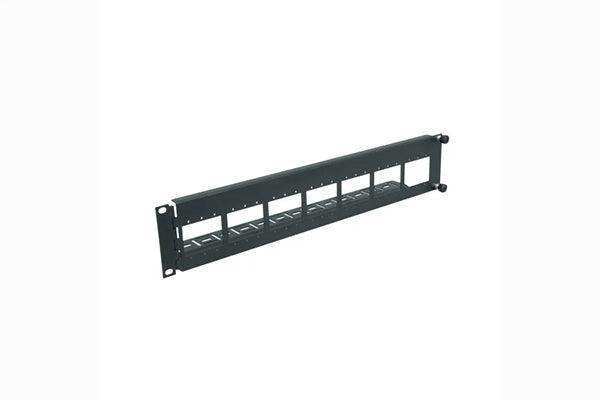

The Middle Atlantic AVIP-SF2 is a 2RU swing-out rackmount connector panel from the AVIP Rackmount Panel System. It consolidates up to 21 single, 7 dual, or 7 triple connector plates into two rack spaces, turning a rack face into an organized AV interface point. The frame accepts Wiremold AVIP, Extron MAAP, and FSR IPS device plates, covering the most common modular plate standards in commercial AV. A hinged, tool-free design gives technicians fast access to terminations behind the panel.

Product Description

The Middle Atlantic AVIP-SF2 swing-out connector panel brings modular AV input plates to any standard 19-inch rack. Across its 2RU frame, the panel accepts 21 single-width plates, 7 dual plates, or 7 triple plates, giving integrators dense, flexible capacity for HDMI, audio, network, and control connections at the rack. Compatibility spans three major plate ecosystems: Wiremold AVIP, Extron MAAP, and FSR IPS device plates all mount directly, so the panel fits into existing plate standards rather than forcing a change of spec. Behind the plates, included strain relief and cable management are optimized for device plate wiring, keeping terminations supported and dressed instead of hanging loose in the rack. Service access is where the swing-out design earns its keep: the panel is hinged on one side, and captive 10-32 threaded thumbscrews open without tools, swinging the entire plate field outward to expose the rear terminations. That means moves, adds, and changes happen at the rack face without pulling equipment or working blind behind the rail. For conference rooms, lecterns, and equipment closets that route user-facing connections through the rack, the AVIP-SF2 is a clean, serviceable interface solution.

Key Features

• High Plate Capacity — Accepts 21 single, 7 dual, or 7 triple connector plates in just 2RU.
• Multi-Standard Compatibility — Mounts Wiremold AVIP, Extron MAAP, and FSR IPS device plates.
• Swing-Out Hinged Frame — Hinged on one side so the full plate field swings open for interior access.
• Tool-Free Service — Captive 10-32 threaded thumbscrews open the panel without any tools.
• Integrated Strain Relief — Included cable management is optimized for device plate wiring behind the panel.

Technical Specifications
