Middle Atlantic AVIP-SF1 – 1RU Swing-Out AVIP Rackmount Panel
Product Overview

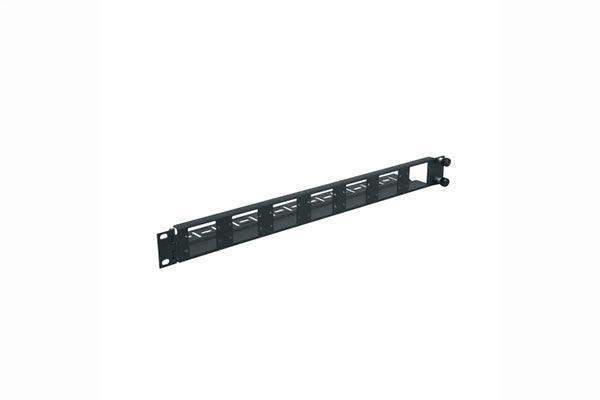

The Middle Atlantic AVIP-SF1 is a 1-space (1RU) hinged 19-inch rackmount panel that consolidates AV interface plates into a single horizontal connection point. It accepts 14 single or 7 dual connector plates, including Wiremold AVIP, Extron MAAP, and FSR IPS device plates. A side hinge and tool-free captive thumbscrews give installers fast access to terminations behind the panel.
Product Description
The AVIP-SF1 brings modular interface plates into the equipment rack, creating an organized, labeled patch point for the inputs and outputs a system presents to other gear. In a single rack space, the panel accepts up to 14 single-width or 7 dual-width connector plates, and its openings are compatible with three of the most widely specified modular plate formats: Wiremold AVIP, Extron MAAP, and FSR IPS. That cross-compatibility lets integrators mix HDMI, audio, network, and control interface modules from the plate families they already stock. Behind the face, the panel includes strain relief and cable management optimized for device plates, keeping terminations supported so connectors are not stressed by cable weight. The panel is hinged on one side, swinging open for interior access without unloading the rack, and its captive 10-32 threaded thumbscrews open by hand with no tools. For projects that need twice the plate capacity, the 2-space AVIP-SF2 version of this panel is available separately. As part of Middle Atlantic's AVIP rackmount panel system, the AVIP-SF1 standardizes interface wiring in a serviceable, professional package.
Key Features
- 14 Single or 7 Dual Plate Capacity — High interface density in a single 19-inch rack space.
- Multi-Format Compatibility — Accepts Wiremold AVIP, Extron MAAP, and FSR IPS device plates.
- Hinged Swing-Out Design — Opens from one side for interior access without removing the panel.
- Tool-Free Access — Captive 10-32 threaded thumbscrews open by hand.
- Integrated Strain Relief — Cable management optimized for device plate terminations.
- Horizontal 19" Format — Standard EIA rackmount panel occupying 1RU.
Technical Specifications
| Model | AVIP-SF1 |
|---|---|
| Brand | Middle Atlantic Products (Legrand AV) |
| Product Type | Hinged AVIP rackmount connector panel |
| Rack Spaces | 1U (1 space), 19" horizontal |
| Plate Capacity | 14 single or 7 dual connector plates |
| Plate Compatibility | Wiremold AVIP, Extron MAAP, FSR IPS |
| Access | Hinged one side; captive 10-32 thumbscrews, tool-free |
| Cable Management | Strain relief optimized for device plates |
