Middle Atlantic APV-4 4SP SLOTTED ACCESS PANEL

Product Overview

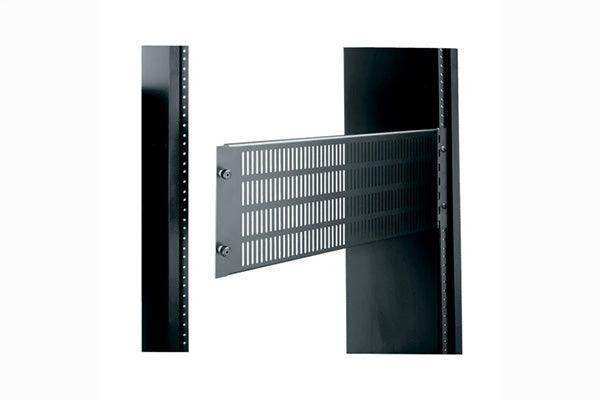

The Middle Atlantic APV-4 is a 4-space slotted hinged access panel fabricated from 13-gauge black powder coated steel. The vented slot design allows airflow through the panel while still preventing accidental contact with components mounted behind it. The hinged design provides quick access to rack interiors without panel removal, and captive 10-32 thumbscrews allow tool-free opening. This panel is well suited for installations where rear connector panel access is periodically required and passive airflow management is beneficial.

Product Description

The APV-4 Slotted Access Panel from Middle Atlantic Products spans 4 rack spaces and provides a hinged vented steel panel that allows passive airflow through the slot openings while still controlling accidental contact with components behind the panel. Unlike the solid AP Series panels, the slotted design of the APV-4 is the correct choice when some degree of passive cooling is desired at the panel position. The hinged side-mount design allows the panel to swing open without removal from the rack, providing unobstructed access to the rear for maintenance, connector changes, or cable management adjustments. The 13-gauge steel construction is machinable in the field for custom cutouts and connector openings if needed. Captive 10-32 threaded thumbscrews allow tool-free opening and prevent fastener loss during service operations. The black powder coat finish provides durability and a consistent appearance within standard black rack environments.

Key Features

• 4U / 4SP Form Factor — Spans 4 rack spaces in a standard 19-inch rack.
• Slotted Vented Design — Allows passive airflow while preventing accidental contact with interior components.
• Hinged One Side — Panel swings open without removal for quick interior access.
• Tool-Free Opening — Captive 10-32 thumbscrews allow opening without tools.
• 13-Gauge Steel — Machinable steel construction for field customization.

Technical Specifications
