Middle Atlantic 4SC3 4 BOLT CIRC (3) PORT UCP
Product Overview

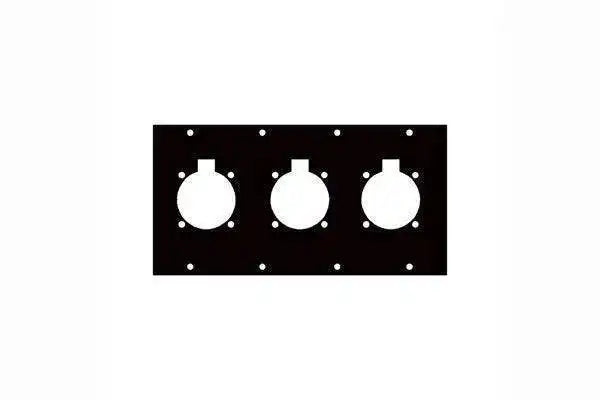

The Middle Atlantic 4SC3 is a 3-port UCP Series panel insert with 4-bolt circular punchouts for integration into Middle Atlantic UCP modular frame kits. The 4-bolt circular hole pattern accommodates Cannon AP and EP, Neutrik, NL8MPR, and NL4MPR (Speakon) connectors. Aluminum construction with a black brushed and anodized finish provides durability and professional aesthetics for audio and staging connector panel applications.
Product Description
The Middle Atlantic 4SC3 provides 3 circular punchout positions with a 4-bolt mounting pattern in a single UCP insert panel. The 4-bolt circular hole pattern fits Cannon AP and EP connectors, Neutrik connectors, NL8MPR (8-pole Speakon), and NL4MPR (4-pole Speakon) connector formats. Speakon connectors are widely used in professional audio for speaker and power amplifier connections in live sound and installed sound systems. The 4SC3 mounts into Middle Atlantic UCP Series frame kits, swinging frames, chassis, and cable trays for custom multi-connector panel configurations. Aluminum construction with a black brushed and anodized finish provides corrosion resistance and a professional panel face. Connectors are not included.
Key Features
- 3 Circular Punchouts — Provides 3 positions with 4-bolt circular mounting pattern in a single UCP insert.
- 4-Bolt Speakon and Cannon Compatible — Fits Cannon AP/EP, Neutrik, NL8MPR, and NL4MPR (Speakon) connectors.
- UCP Series Compatible — Mounts in UCP frame kits, swinging frames, chassis, and cable trays.
- Aluminum Construction — Black brushed and anodized aluminum provides durability and professional aesthetics.
- Connectors Not Included — Order Speakon or Cannon connectors separately.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 4SC3 |
| Connector Type | 4-bolt circular |
| Port Count | 3 |
| Compatible Connectors | Cannon AP and EP; Neutrik; NL8MPR; NL4MPR (Speakon) |
| Compatible System | UCP Series frame kits, swinging frame, chassis, cable tray |
| Width | 6.79 in (17.25 cm) |
| Height | 3.49 in (8.86 cm) |
| Depth | 0.13 in (0.33 cm) |
| Material | Aluminum |
| Finish | Black brushed and anodized |
| Brand | Middle Atlantic |
