Middle Atlantic 1 Elco Punchout Panel - 1ELCO56
Product Overview

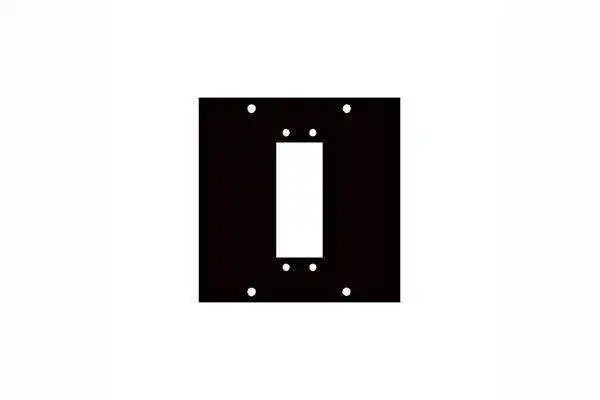

The Middle Atlantic 1ELCO56 is a UCP insert panel designed to accommodate 56-pin Elco/Edac multipin connectors in professional AV rack installations. This single-module panel fits within the Middle Atlantic UCP Series ecosystem, providing a dedicated punchout opening for large-format multipin connections commonly used in touring, broadcast, and installed AV systems. The 1ELCO56 is also compatible with 38, 90, and 120 pin Elco/Edac connectors, making it a versatile choice for systems that use a range of Elco/Edac connector sizes. It installs directly into UCP frame kits, swinging frames, chassis, and cable trays without tools.
Product Description
The Middle Atlantic 1ELCO56 is a UCP module designed for integrators who need a clean, rack-integrated breakout point for Elco/Edac multipin connectors. The panel features a single punchout sized to accept 56-pin Elco/Edac shells, along with compatibility for 38, 90, and 120 pin variants of the same connector family. This makes it suitable across a broad range of signal snake, audio, and control applications. Constructed from aluminum with a brushed and black anodized finish, the 1ELCO56 matches the aesthetics of other Middle Atlantic UCP panels and accessories. The panel installs directly into UCP FK2 frame kits, UCP-SF swinging frames, UCP chassis, and UCP cable trays, integrating cleanly into any UCP-based connector panel configuration. At 3.39 x 3.49 inches, the module occupies a standard UCP slot position. For AV systems that rely on Elco/Edac multipin signal routing, the 1ELCO56 provides a purpose-built, finished-looking solution that keeps connections accessible at the rack front. Shop at Creation Networks for this and other Middle Atlantic UCP panel components.
Key Features
- Multi-Pin Punchout — Accepts 38, 56, 90, and 120 pin Elco/Edac connector shells for broad compatibility.
- Aluminum Construction — Durable aluminum panel with brushed and black anodized finish.
- UCP Series Compatible — Fits UCP frame kits, swinging frames (UCP-SF), chassis, and cable trays.
- Standard UCP Module Size — Dimensions of 3.39 x 3.49 inches fit any open UCP slot.
- Clean Rack Integration — Provides a finished appearance for Elco/Edac connector pass-throughs in professional installations.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1ELCO56 |
| Connector Compatibility | 38, 56, 90, 120 pin Elco/Edac |
| Construction | Aluminum |
| Finish | Brushed and black anodized |
| Dimensions | 3.39 x 3.49" |
| System Compatibility | UCP Series frame kits, swinging frame, chassis, cable tray |
