Middle Atlantic 1 Elco Punchout Panel - 1ELCO120
Product Overview

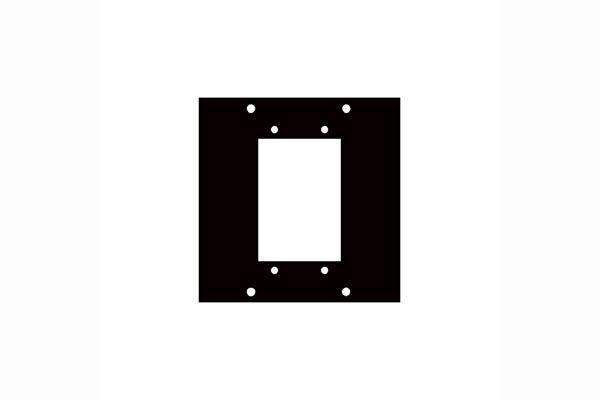

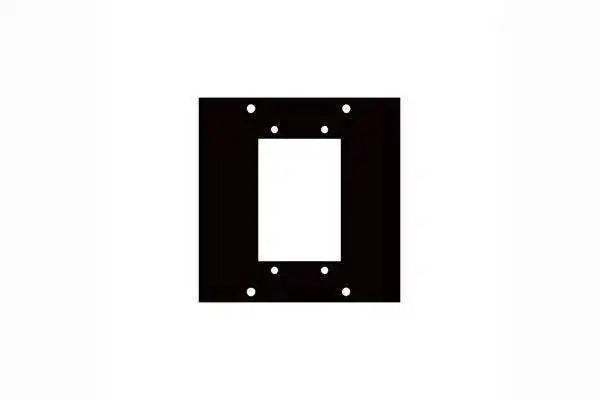

The Middle Atlantic 1ELCO120 is a UCP insert panel with a punchout opening for 120-pin Elco/Edac multipin connectors, and is also compatible with 38, 56, and 90 pin Elco/Edac variants. As part of the Middle Atlantic UCP Series, this module enables clean integration of large-format multipin signal connections into rack systems. The aluminum panel with brushed black anodized finish slots directly into UCP frame kits, swinging frames, chassis, and cable trays for a professional finished installation.
Product Description
The Middle Atlantic 1ELCO120 provides a dedicated rack-integrated punchout for 120-pin Elco/Edac multipin connectors within the UCP Series framework. The Elco/Edac connector family is widely used in professional audio and broadcast applications for multi-channel signal routing via large multipin snakes and breakout systems. The 1ELCO120 panel supports the full range of standard Elco/Edac pin counts including 38, 56, 90, and 120 pins, allowing a single panel type to serve multiple connector configurations as system needs evolve. The aluminum construction with brushed and black anodized finish provides durability and a consistent appearance alongside other Middle Atlantic rack components. Panel dimensions of 3.39 x 3.49 inches conform to the standard UCP module footprint, fitting any available UCP slot in FK2 frame kits, UCP-SF swinging frames, UCP chassis, and cable trays. Shop at Creation Networks for the complete range of Middle Atlantic UCP panels.
Key Features
- Multi-Pin Punchout — Accepts 38, 56, 90, and 120 pin Elco/Edac connector shells.
- Aluminum Construction — Brushed and black anodized finish for lasting durability.
- UCP Series Compatible — Fits UCP frame kits, swinging frames, chassis, and cable trays.
- Standard UCP Module Size — 3.39 x 3.49 inch footprint fits any open UCP slot.
- Broadcast and AV Ready — Suited for high-density multipin signal routing in professional installations.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1ELCO120 |
| Connector Compatibility | 38, 56, 90, 120 pin Elco/Edac |
| Construction | Aluminum |
| Finish | Brushed and black anodized |
| Dimensions | 3.39 x 3.49" |
| System Compatibility | UCP Series frame kits, swinging frame, chassis, cable tray |
