Middle Atlantic UMS1-5.5K – 1-Space Universal Shelf Kit, 5.5 In. Deep

Product Overview

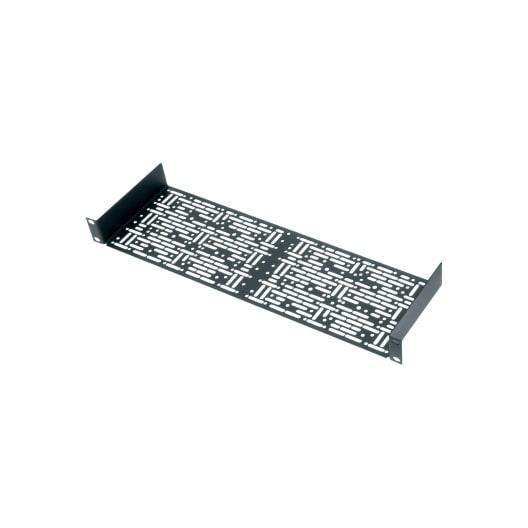

The Middle Atlantic UMS1-5.5K is a convenient 1U universal mounting shelf kit that combines a full-width 19-inch shelf, 5.5 inches deep, with four partial blank panels and mounting hardware. Its universal hole pattern is designed to hold small devices with nearly any mounting screw layout, including counter-sunk holes matched to popular Extron components, making it a practical mid-depth choice in the UMS rackshelf family.

Product Description

Between the shallow 3.5-inch and deep 11.5-inch versions of Middle Atlantic's UMS series sits the UMS1-5.5K, a 5.5-inch-deep universal rack shelf kit that covers the bulk of small AV devices: transmitters, receivers, audio interfaces, and half-rack processors. The full-width 19-inch steel shelf occupies a single rack space and mounts small items in either the front or the rear of the rack, with counter-sunk holes positioned to match popular Extron device footprints for direct, hardware-secured mounting. A black powder-coated finish keeps the shelf consistent with surrounding rack equipment. The kit approach saves a second order: four partial blank panels, 1/8, 1/4, and 1/2 widths along with a 1/8-height panel, are included to close gaps around mounted devices, improving the finished appearance and supporting proper thermal management. The 1/8-space panel mounts with tape while the 1/4 and 1/2 versions attach with supplied 4-40 screws. Fastening hardware for the devices themselves is also in the box: 3/16-inch flat head screws, sixteen #4 and four #6. Compare depths and find matching trim in the Middle Atlantic collection at Creation Networks.

Key Features

• Full-Width 19-Inch Shelf — 1U shelf holds small devices with nearly any mounting screw hole pattern.
• Mid-Range 5.5-Inch Depth — Practical fit for the majority of compact AV components.
• Extron-Matched Counter-Sunk Holes — Bolt popular Extron devices directly to the shelf surface.
• Front or Rear Mounting — Universal pattern secures items in either side of the rack.
• Blank Panels for a Clean Finish — Four partial panels (1/8, 1/4, 1/2 width and 1/8 height) improve appearance and thermal management.
• Simple Panel Attachment — 1/8-space panel mounts with tape; 1/4 and 1/2 panels use supplied 4-40 screws.
• Device Screws Included — 3/16 in. flat head screws: sixteen #4 and four #6.
