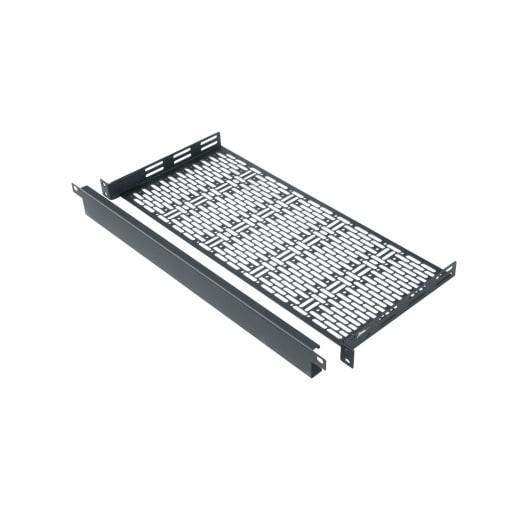

Middle Atlantic 1 RU UFA Rackshelf, 8 Inches Deep with 1 RU Faceplate - UFA-8-F1

Product Overview

The Middle Atlantic UFA-8-F1 is a 1U rack shelf measuring 8 inches deep with a matching 1U faceplate, designed for mounting cables and small devices in 19-inch rack enclosures. With a 35 lb weight capacity and sturdy steel construction, this shelf installs at the front or rear of standard rack rails. Pre-cut holes and slots support cable management and device mounting, and the included 1U faceplate provides a clean front panel appearance once the shelf is populated.

Product Description

The UFA-8-F1 rack shelf from Middle Atlantic Products provides a 1U mounting surface with an 8-inch depth for cables, small rack-mount devices, and miscellaneous AV components in standard 19-inch equipment racks. The 8-inch depth accommodates a practical range of small components while maintaining a compact profile within a rack bay. Pre-cut holes and slots in the shelf surface are positioned for common cable management and device mounting needs. Tie-down points allow cable bundles and components to be secured, reducing cable stress and preventing equipment from shifting during handling. The universal face-after design allows the 1U faceplate to be added or replaced even after the shelf is populated, without disturbing the installed items. The UFA-8-F1 differs from the UFA-8-F2 in that it includes a 1U faceplate instead of a 2U faceplate, making it the appropriate choice when the faceplate height should match the single rack space occupied by the shelf. Installation requires rack screws matching the thread pattern of the installed rack rails. This shelf is well suited for AV installations in houses of worship, concert venues, recording facilities, and commercial AV environments.

Key Features

• 1U Shelf with 1U Faceplate — 1-rack-space shelf with a matching 1U faceplate.
• 8-Inch Depth — Accommodates cables and small AV components with a compact footprint.
• 35 lb Weight Capacity — Steel construction supports up to 35 pounds of equipment and cabling.
• Pre-Cut Cable Management — Holes and slots reduce the need for field drilling.
• Face-After Design — Faceplate can be added or changed after shelf is installed and populated.
• Front or Rear Mounting — Attaches to front or rear rack rails in standard 19-inch systems.

Technical Specifications
