Middle Atlantic BNC Punchout Panel with (5) Holes - 1/2BNC5
Product Overview

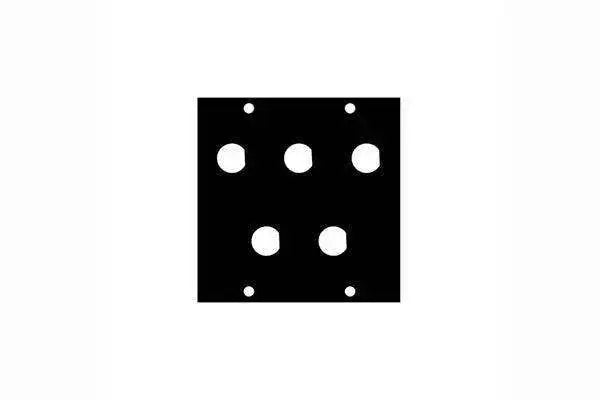

The Middle Atlantic 1/2BNC5 is a UCP insert panel with five punchout holes sized for 1/2-inch insulated BNC connectors, specifically suited for RGBHV video signal applications. Part of the Middle Atlantic UCP Series, this five-hole panel allows integrators to route all five signals of an RGBHV connection through a single UCP module slot. The aluminum panel with black finish installs in UCP frame kits, swinging frames, chassis, and cable trays.
Product Description
The Middle Atlantic 1/2BNC5 is a UCP punchout panel specifically designed for RGBHV video signal routing, providing exactly five 1/2-inch insulated BNC punchout positions to accommodate the full complement of RGBHV signals: Red, Green, Blue, Horizontal Sync, and Vertical Sync. This makes the 1/2BNC5 a purpose-built solution for installations using analog component video or computer graphics connections that require all five BNC signal paths in a single panel. Constructed from steel with a black finish and dimensioned at 3.390 x 3.490 inches, the panel fits the standard UCP module footprint and installs in UCP FK2 frame kits, UCP-SF swinging frames, UCP chassis, and cable trays. It is appropriate for presentation systems, video switching installations, and any rack that handles RGBHV signal distribution. Shop at Creation Networks for Middle Atlantic BNC UCP panels and components.
Key Features
- Five BNC Punchouts — Sized for 1/2" insulated BNC connectors, ideal for RGBHV video.
- RGBHV Ready — Five holes accommodate all five RGBHV signal paths in one module.
- Steel Construction — Black finish for durability and professional appearance.
- UCP Series Compatible — Fits UCP frame kits, swinging frames, chassis, and cable trays.
- Standard UCP Module Size — 3.390 x 3.490 inch footprint for any open UCP slot.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1/2BNC5 |
| Hole Size | 1/2" (insulated BNC) |
| Number of Holes | 5 |
| Intended Application | RGBHV video signal routing |
| Construction | Steel |
| Finish | Black |
| Dimensions | 3.390 x 3.490" |
| System Compatibility | UCP Series frame kits, swinging frame, chassis, cable tray |
