Middle Atlantic UCP Panel - Four 1/2 BNC - 1/2BNC4
Product Overview

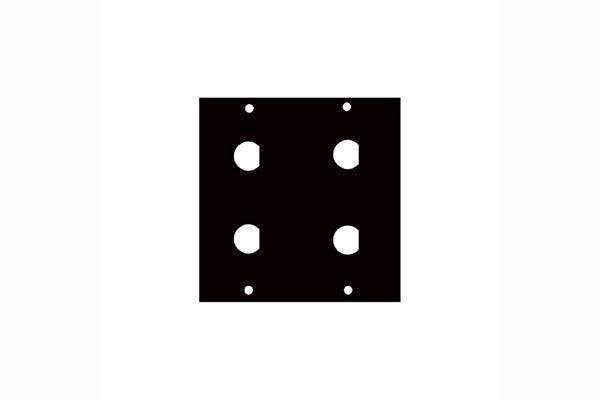

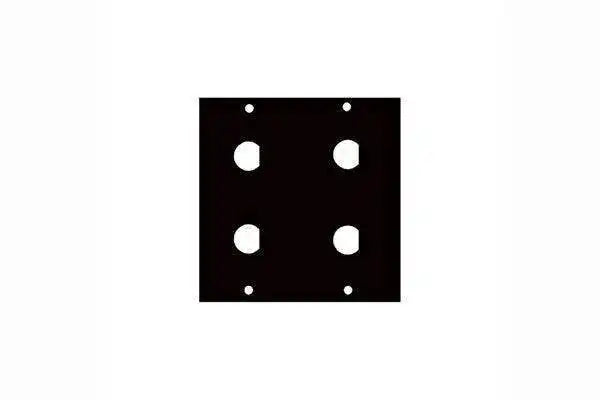

The Middle Atlantic 1/2BNC4 is a UCP insert panel with four punchout openings for 1/2-inch and 3/8-inch diameter BNC connector shells, as well as most insulated BNC shells and fuses. Part of the Middle Atlantic UCP Series, this four-port module provides BNC signal access within a rack connector panel configuration. The panel features a brushed black anodized finish and installs in UCP frame kits, swinging frames, chassis, and cable trays.
Product Description
The Middle Atlantic 1/2BNC4 provides four punchout positions in a UCP module panel, each sized for 1/2-inch and 3/8-inch diameter BNC connector shells along with most insulated BNC shells and fuses. This four-port configuration is well suited for quad-channel video, four-channel SDI routing, or composite video applications where four BNC connections are needed in a single panel. The brushed black anodized finish gives the panel a clean, professional look alongside other Middle Atlantic UCP components. At 3.4 x 3.5 x 0.5 inches (86 x 89 x 13mm), the 1/2BNC4 occupies a standard UCP slot in FK2 frame kits, UCP-SF swinging frames, UCP chassis, and cable trays. Shop at Creation Networks for the full range of Middle Atlantic BNC UCP panels.
Key Features
- Four BNC Punchouts — Accepts 1/2" and 3/8" diameter BNC shells, insulated shells, and fuses.
- Brushed Black Anodized Finish — Professional appearance for installed rack systems.
- UCP Series Compatible — Fits UCP frame kits, swinging frames, chassis, and cable trays.
- Standard UCP Module Size — 3.4 x 3.5 x 0.5" (86 x 89 x 13mm) for any open UCP slot.
- Video and RF Applications — Suited for quad-channel SDI, composite video, and RF distribution.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1/2BNC4 |
| Hole Size | 1/2" and 3/8" diameter |
| Number of Holes | 4 |
| Compatible Connectors | 1/2" and 3/8" BNC shells, insulated shells, fuses |
| Finish | Brushed Black Anodized |
| Dimensions | 3.4 x 3.5 x 0.5" (86 x 89 x 13mm) |
| System Compatibility | UCP Series frame kits, swinging frame, chassis, cable tray |
