Middle Atlantic UCP Panel - One 1/2 BNC - 1/2BNC1
Product Overview

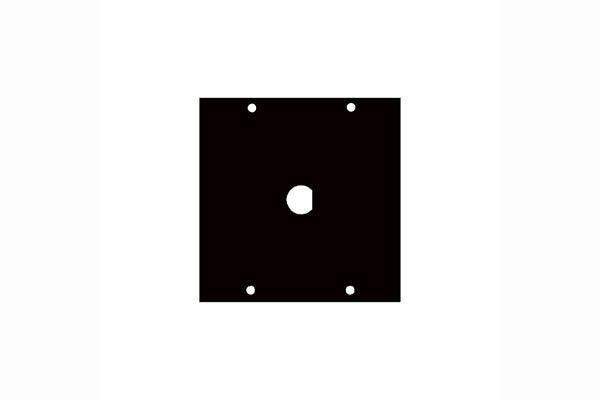

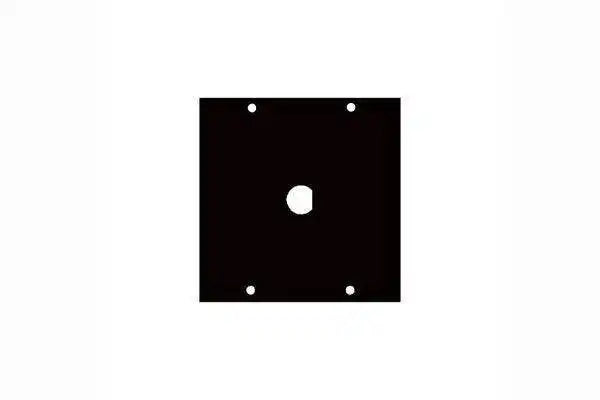

The Middle Atlantic 1/2BNC1 is a UCP insert panel with a single punchout opening for 1/2-inch and 3/8-inch diameter BNC connector shells, including most insulated BNC shells and fuses. As part of the Middle Atlantic UCP Series, this single-port panel is the most compact option in the BNC UCP panel line, suited for installations where only one BNC connection point is needed within a given UCP module slot. The brushed black anodized finish panel installs in UCP frame kits, swinging frames, chassis, and cable trays.
Product Description
The Middle Atlantic 1/2BNC1 is a single-port UCP BNC punchout module, providing one punchout opening sized to accept 1/2-inch and 3/8-inch diameter BNC connector shells as well as most insulated BNC shells and fuses. This is the minimum-footprint option in the Middle Atlantic BNC UCP panel series, and it is appropriate when a single BNC signal pass-through is all that is required within a UCP slot. Installations may use this panel to add individual BNC connections alongside other UCP modules within the same frame. With a brushed black anodized finish and standard UCP module dimensions of 3.4 x 3.5 x 0.5 inches (86 x 89 x 13mm), the 1/2BNC1 integrates cleanly into any UCP FK2 frame kit, UCP-SF swinging frame, UCP chassis, or cable tray. Shop at Creation Networks for Middle Atlantic BNC UCP panels in all port counts.
Key Features
- Single BNC Punchout — Accepts 1/2" and 3/8" diameter BNC shells, insulated shells, and fuses.
- Brushed Black Anodized Finish — Consistent appearance with other Middle Atlantic UCP components.
- UCP Series Compatible — Fits UCP frame kits, swinging frames, chassis, and cable trays.
- Standard UCP Module Size — 3.4 x 3.5 x 0.5" (86 x 89 x 13mm) for any open UCP slot.
- Single-Port Flexibility — Allows individual BNC connections to be added alongside other UCP modules.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 1/2BNC1 |
| Hole Size | 1/2" and 3/8" diameter |
| Number of Holes | 1 |
| Compatible Connectors | 1/2" and 3/8" BNC shells, insulated shells, fuses |
| Finish | Brushed Black Anodized |
| Dimensions | 3.4 x 3.5 x 0.5" (86 x 89 x 13mm) |
| System Compatibility | UCP Series frame kits, swinging frame, chassis, cable tray |
