Midas M32 LIVE Digital Mixer Bundle With DL32 Stage Box

Product Overview

The Midas M32 digital mixing console bundle pairs the M32 LIVE 40-channel console with the DL32 digital stage box to deliver a complete M32 digital snake system ready for immediate deployment in house of worship installations, touring rigs, and fixed venue applications. This 40-channel digital console AES50 system connects via a single Cat5e or Cat6 cable, positioning the DL32 up to 100 meters from the front-of-house position while maintaining full digital audio integrity. The combination gives engineers a Midas M32 DL32 stage box bundle that extends total system input capacity well beyond the console's onboard connections, with all processing handled by the M32's 40-bit floating-point engine. For any house of worship digital mixer bundle or live sound digital mixing system requiring reliable remote I/O, this pairing is a proven industry-standard solution.

Product Description

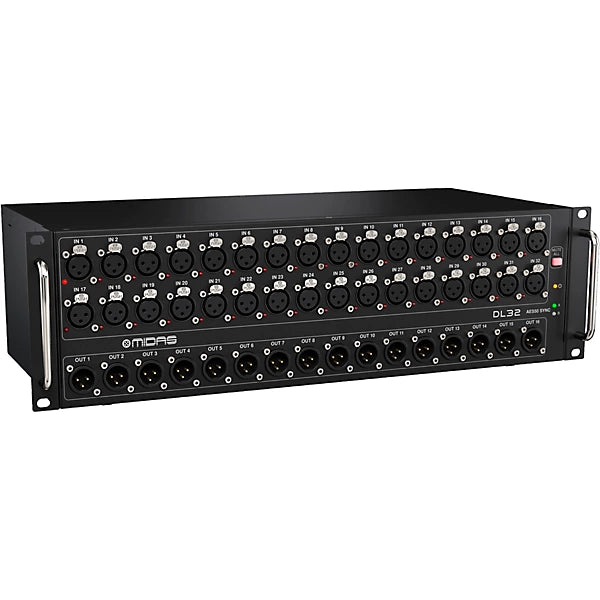

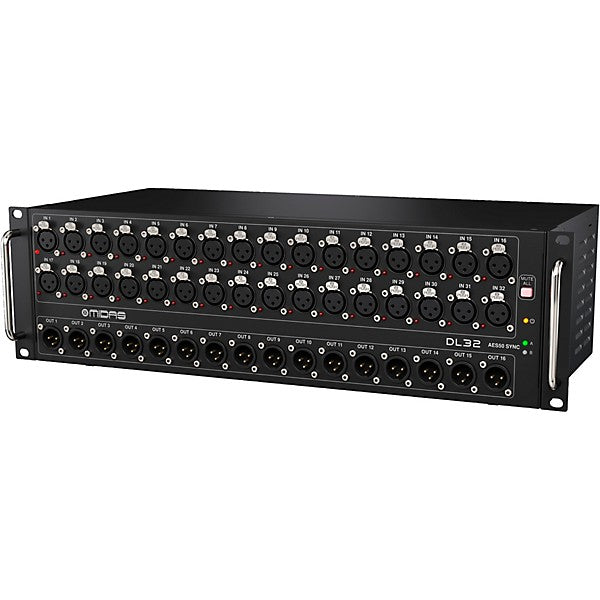

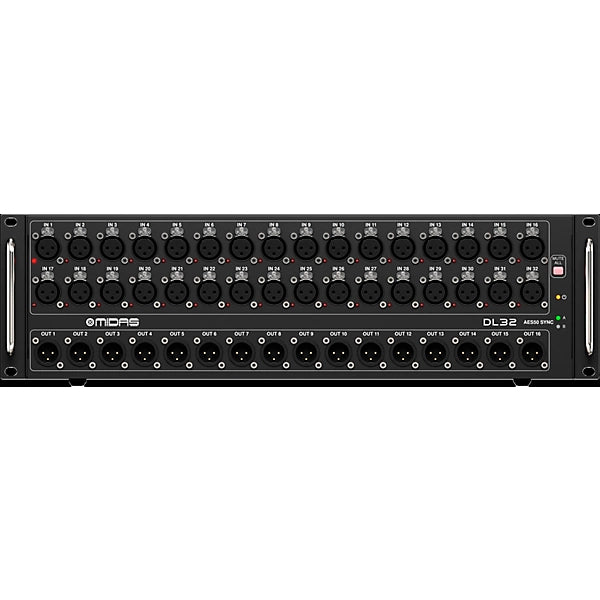

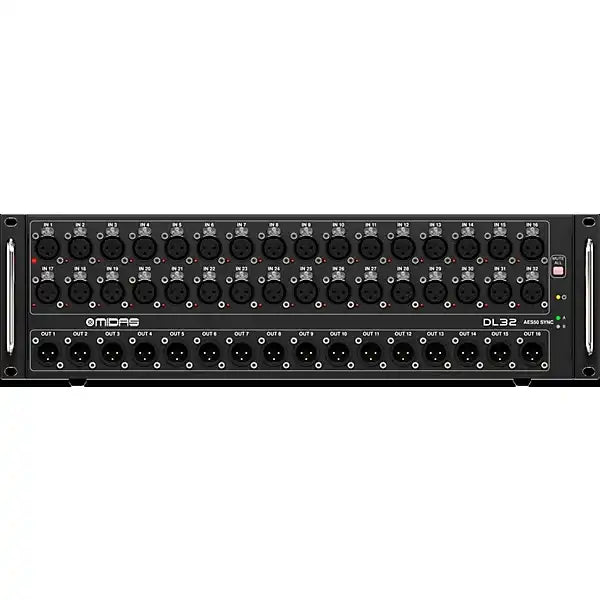

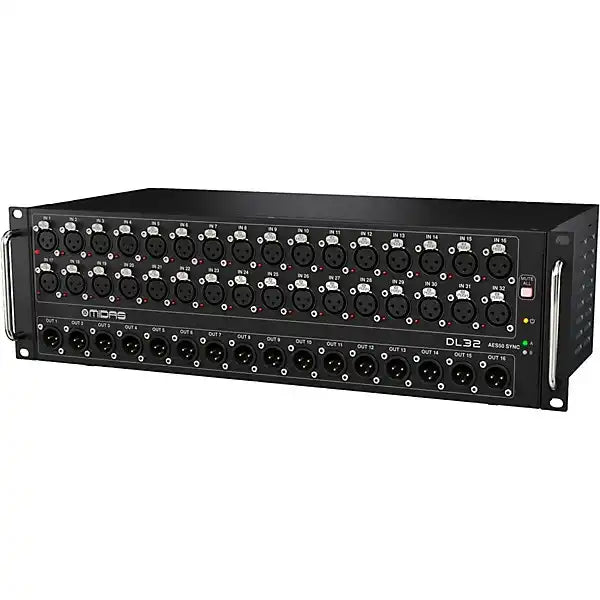

This bundle combines two purpose-built Midas products into a single turnkey digital audio system. The M32 LIVE console brings 32 onboard MIDAS PRO microphone preamplifiers — the same preamp topology found in Midas's XL4 and Heritage 3000 analog consoles — along with 40-bit floating-point signal processing, 25 phase-coherent mix buses, and 8 true-stereo built-in FX engines. The DL32 stage box adds 32 additional MIDAS PRO preamp channels at the stage, giving the combined system a substantial expansion of mic-level inputs without any compromise in preamp quality.

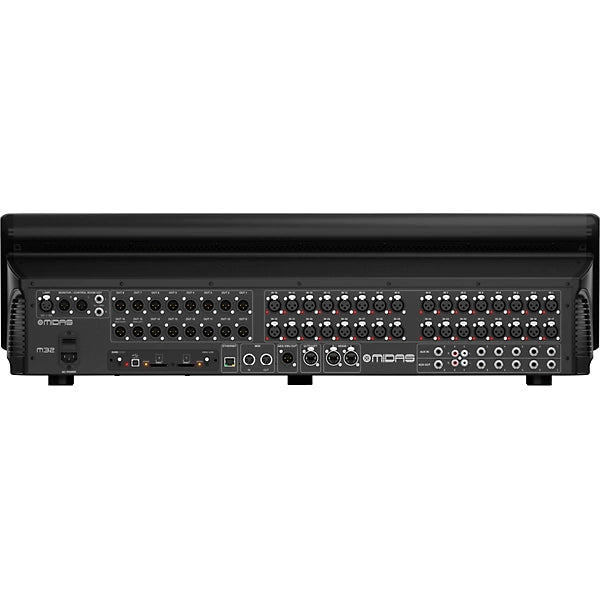

AES50 networking connects the M32 LIVE to the DL32 over shielded Cat5e or Cat6 cable at distances up to 100 meters, using Klark Teknik SuperMAC technology to maintain ultra-low latency and full clock synchronization across the link. A single cable at that distance eliminates the need for traditional copper analog snakes, simplifying stage runs and reducing setup time considerably. The M32 LIVE's dual AES50 ports mean the DL32 can occupy one port while the second remains available for a second stage box or for expansion to additional I/O.

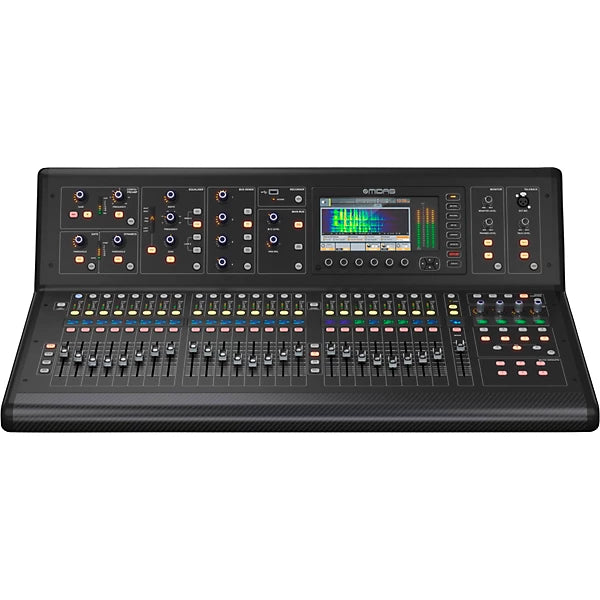

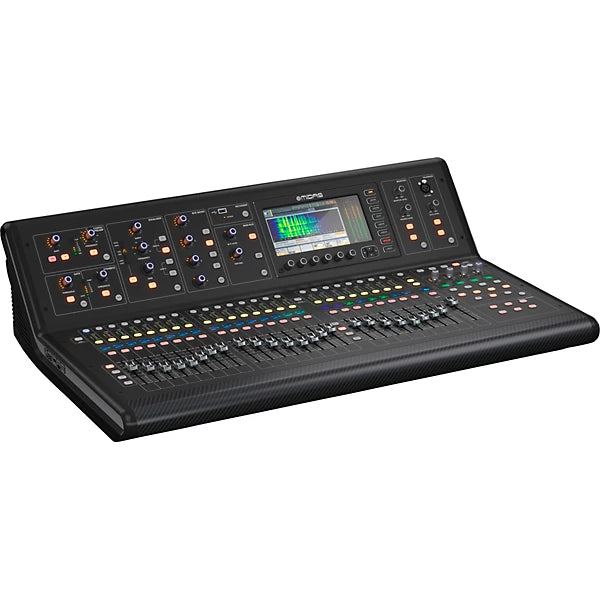

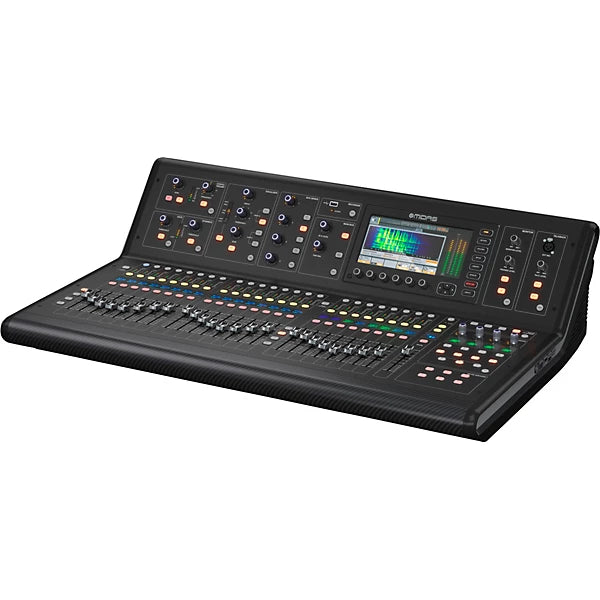

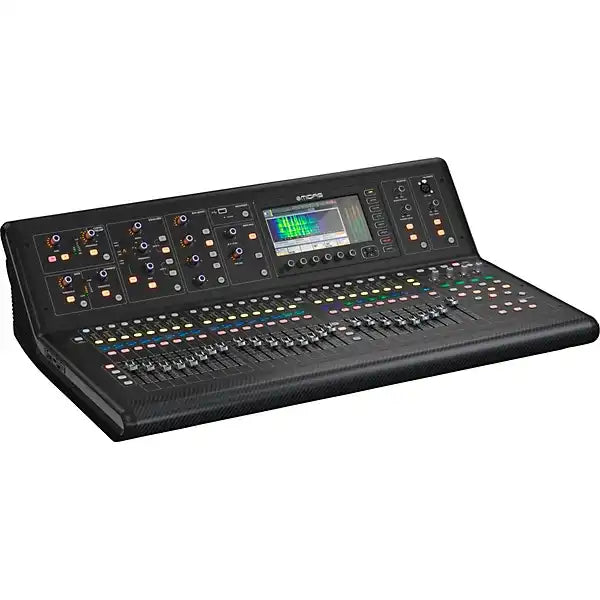

The M32 LIVE console features 25 motorized faders rated for one million life cycles, a 5-inch full-color TFT display, and full remote control capability via Midas's M32-EDIT software (Mac/PC) or the MixingStation app (iPad/Android). A dedicated ULTRANET port supports Behringer P16 personal monitor mixers, distributing up to 16 channels of digital audio to in-ear monitor systems over a single Cat5 cable. Onboard 32x32 USB audio interface capability supports multitrack recording directly to a connected computer without additional hardware. This bundle is equally suited to the main sanctuary of a house of worship, a touring production, or a fixed installation requiring clean, long-distance stage-to-console audio transport.

Key Features

• Complete Turnkey System — M32 LIVE console and DL32 stage box ship together as a matched digital audio system, ready to connect and deploy.
• 64 Combined MIDAS PRO Preamps — 32 onboard the M32 LIVE and 32 onboard the DL32, all sharing the same preamp lineage as Midas's flagship analog consoles.
• AES50 Cat5e Connection up to 100m — A single shielded Cat5e or Cat6 cable carries bidirectional digital audio between console and stage box at distances up to 100 meters.
• 40-Channel Console Architecture — The M32 LIVE processes up to 40 input channels simultaneously with full channel strip processing on every channel.
• 25 Phase-Coherent Mix Buses — 16 mix buses, 6 matrix buses, a main LR bus, and a mono/center bus provide comprehensive routing for front-of-house, monitors, and broadcast feeds.
• 8 True-Stereo FX Engines — Eight studio-grade stereo effect engines, each assignable to any input, group, or output bus, with over 50 effects available.
• 25 Motorized Faders — Motorized faders with 1-million-cycle ratings respond to scene recalls and remote control changes in real time.
• ULTRANET Personal Monitoring Port — Streams up to 16 channels of digital audio to Behringer P16 personal monitor mixers over a single Cat5 cable.
• 32x32 USB Multitrack Recording — Records and plays back 32 channels at up to 48 kHz directly to a DAW without additional audio hardware.
• 40-Bit Floating-Point Processing — Midas's floating-point audio engine provides headroom and precision that exceeds fixed-point 32-bit implementations.
• iPad and PC Remote Control — Full remote control via M32-EDIT (Mac/PC) and MixingStation app (iPad/Android tablet) over wired or wireless Ethernet.
• Dual AES50 Ports on M32 LIVE — Both ports support up to 48 inputs and 48 outputs each, allowing connection of the DL32 plus a second stage box or expansion device.

Typical Applications

• House of worship — main sanctuary, overflow rooms, and broadcast mix positions
• Auditorium and performing arts centers
• Live music venues and concert halls
• Theater and stage productions
• Broadcast studio and live broadcast production
• Multi-purpose rooms and event spaces with professional audio reinforcement requirements
• Government and municipal event facilities
• Touring live sound productions requiring remote stage I/O
