Meyer Sound USW-112P/WP 12" Compact Narrow Subwoofer, Weather Proof - 09.298.001.04

Product Overview

The Meyer Sound USW-112P/WP is a weather-protected 1x12" compact narrow subwoofer that brings substantial low-frequency output to covered outdoor and semi-exposed installed sound applications. This weather-proof analog model carries an IP54 rating with the rain hood installed and delivers discreet bass from a slim enclosure suited to houses of worship, outdoor commercial AV systems, and architectural installs. Its single 12-inch driver and compact form factor make it practical where both durability and visual discretion matter.

Product Description

The USW-112P/WP houses an open-loop Class D power amplifier rated at 1200 W peak with onboard frequency correction, phase correction, and driver protection, and adds Meyer Sound weather protection for exposed locations. Weather-protected units use 3-pin XLR TOP (Total Outdoor Protection) connectors and powerCON TRUE1 TOP power. The compact rectangular enclosure and slanted connector panel allow flush wall mounting at only 12 inches of depth including connectors, and the bass-reflex cabinet uses a low-velocity port for high efficiency and low distortion. As the low-frequency companion to the ULTRA-X20, it complements the UP-4slim and UPM-family loudspeakers. For an indoor analog configuration, compare the standard USW-112P, and browse the full Meyer Sound collection at Creation Networks.

Key Features

• Weather protection (IP54) — Rated IP54 with the rain hood properly installed for covered outdoor and semi-exposed environments.
• TOP connectors — Uses 3-pin XLR TOP audio and powerCON TRUE1 TOP power connectors for outdoor durability.
• Single 12-inch driver — One 12-inch cone driver delivers high power-to-size low-frequency output in a compact cabinet.
• Class D amplification — An open-loop Class D amplifier delivers 1200 W peak with onboard correction and driver protection.
• Low-profile installation depth — The slanted connector panel enables flush wall mounting at only 12 inches including connectors.
• Low-distortion port design — A low air-velocity port provides clean, low-distortion bass output.

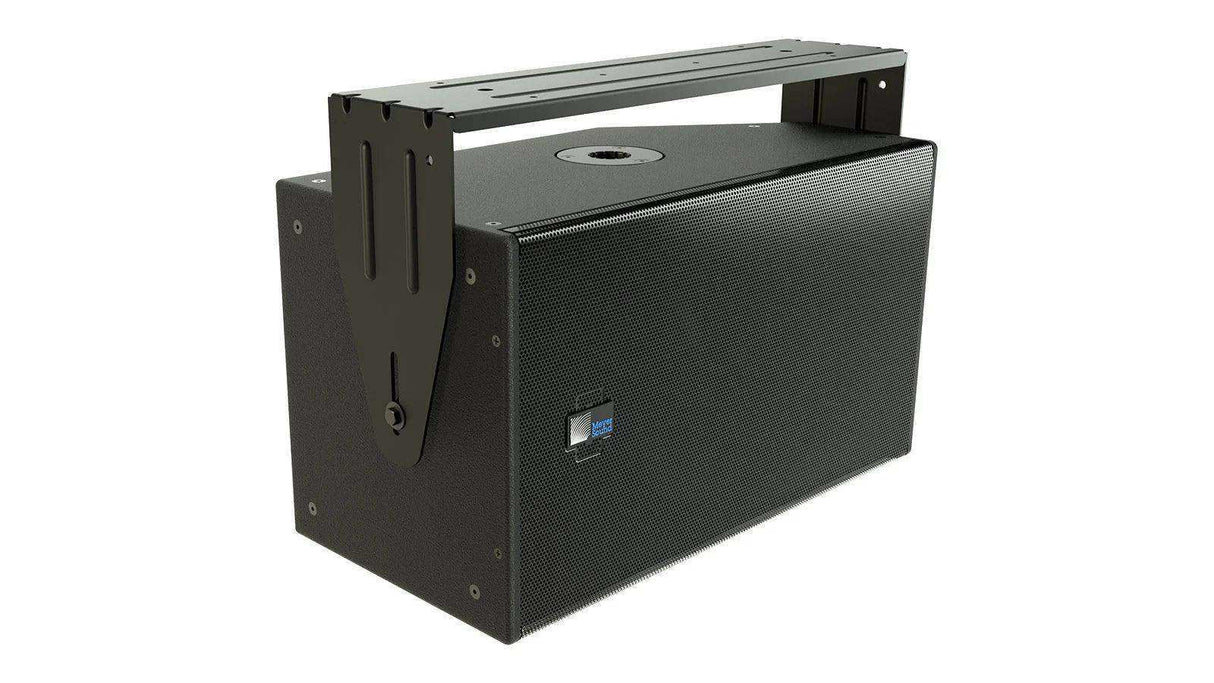

• Versatile rigging — Two M8 threaded points plus a 35 mm pole mount with M20 thread accept the optional U-bracket for wall, ceiling, or truss mounting.

Typical Applications

• House of worship — Provides discreet low-frequency reinforcement for sanctuaries and covered exterior gathering areas.
• Auditorium — Reinforces low end for speech and music in performance and assembly spaces, including exposed structures.
• Multi-purpose room — Supports flexible AV program material where weather resistance is required.
• Government space — Delivers durable low-frequency output for covered exterior briefing and assembly areas.

Technical Specifications

Specifications sourced from Meyer Sound. Subject to change without notice.

Frequently Asked Questions

What is the weather rating? The weather-protected version is rated IP54 with the rain hood properly installed, suiting it for covered outdoor and semi-exposed locations.

What connectors does this model use? Weather-protected units use 3-pin XLR TOP audio connectors and powerCON TRUE1 TOP power connectors.

How is the USW-112P/WP mounted? It includes two M8 threaded points and a 35 mm pole mount with M20 thread, and accepts the optional MUB-USW-112 U-bracket for wall, ceiling, or truss mounting.

What loudspeakers does it pair with? It is designed as the low-frequency companion to the ULTRA-X20 and complements the UP-4slim and UPM-family loudspeakers.

Is this subwoofer covered by a warranty? Yes, it is covered under Meyer Sound's standard product warranty. For details, please contact Creation Networks.
