Meyer Sound USW-112P 1x12" 2-Way Active Subwoofer - 09.298.001.03

Product Overview

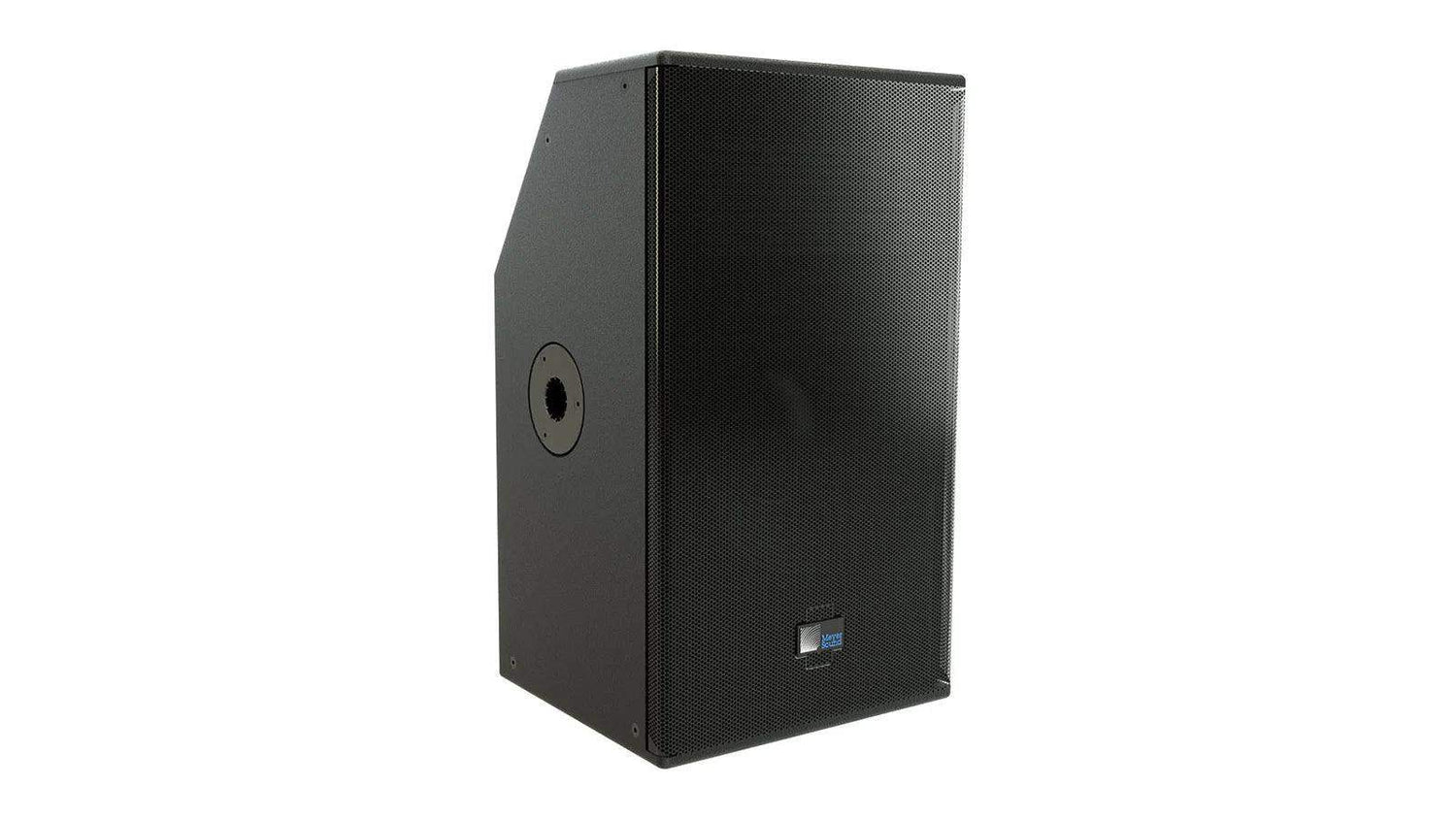

The Meyer Sound USW-112P is a self-powered 1x12" compact narrow subwoofer that delivers substantial low-frequency output from a tight, discreet footprint for installed sound applications. Designed as the ideal low-frequency companion to the ULTRA-X20 and other Meyer Sound loudspeakers, this analog model extends bass for houses of worship, conference rooms, retail and theater spaces, and multi-purpose AV systems. Its single 12-inch driver and slim enclosure make it a practical choice where space and aesthetics are constrained.

Product Description

The USW-112P houses an open-loop Class D power amplifier rated at 1200 W peak, with onboard signal processing for frequency correction, phase correction, and driver protection. Its compact rectangular enclosure and slanted connector panel allow flush wall mounting, reducing the required installation depth to 12 inches including connectors. The bass-reflex cabinet uses a low-velocity port for high efficiency and low port distortion. This analog version accepts balanced audio over a 3-pin XLR female input with male loop output and supports the optional RMS remote monitoring module. The cabinet integrates Meyer Sound's Intelligent AC power supply for automatic voltage selection and surge suppression. For a larger dual-driver subwoofer, compare the USW-210P 2x10" model, and browse the full Meyer Sound collection for matched systems at Creation Networks.

Key Features

• Single 12-inch driver — One 12-inch cone driver delivers high power-to-size low-frequency output in a compact cabinet.
• Low-profile installation depth — The slanted connector panel enables flush wall mounting with only 12 inches of depth including connectors.
• Class D amplification — An open-loop Class D amplifier delivers 1200 W peak with onboard correction and driver protection.
• Low-distortion port design — A low air-velocity port provides clean, low-distortion bass output.
• Flexible orientation — The cabinet can be placed horizontally or vertically to suit installation requirements.
• Intelligent AC power supply — Provides automatic voltage selection, EMI filtering, soft-start, and surge suppression.
• Versatile rigging — Two M8 threaded points plus a 35 mm pole mount with M20 thread accept the optional U-bracket for wall, ceiling, or truss mounting.
• Optional RMS monitoring — Supports the optional RMS remote monitoring module for parameter reporting via Compass software.

Typical Applications

• House of worship — Adds discreet low-frequency reinforcement to sanctuary sound systems.
• Conference room — Extends bass for presentation and program audio in a slim, wall-mountable enclosure.
• Multi-purpose room — Provides flexible low-frequency support for varied AV program material.
• Auditorium — Reinforces low end for speech and music in performance and assembly spaces.
• Training room — Supplies controlled bass extension for instructional AV playback.

Technical Specifications

Specifications sourced from Meyer Sound. Subject to change without notice.

Frequently Asked Questions

What audio connection does this model use? This analog USW-112P uses a 3-pin XLR female input with a male loop output, with an optional 5-pin XLR available to carry both balanced audio and RMS signals.

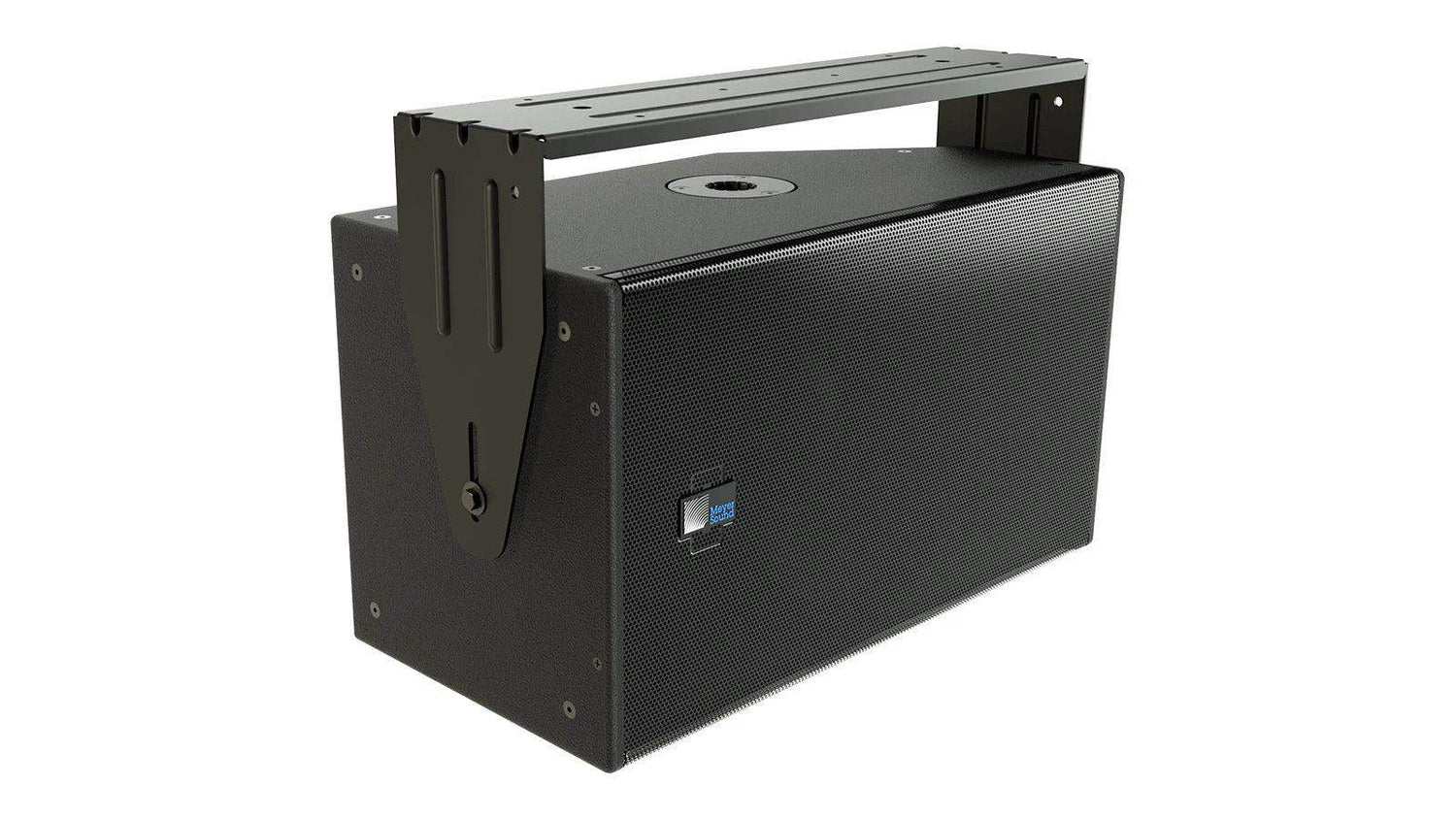

How is the USW-112P mounted? It includes two M8 threaded points and a 35 mm pole mount with M20 thread, and accepts the optional MUB-USW-112 U-bracket for wall, ceiling, or truss mounting.

What loudspeakers does it pair with? It is designed as the low-frequency companion to the ULTRA-X20 and also complements the UP-4slim and UPM-family loudspeakers.

Can its parameters be monitored remotely? Yes. The analog version supports the optional RMS remote monitoring module for reporting amplifier parameters via Compass control software.

Is this subwoofer covered by a warranty? Yes, it is covered under Meyer Sound's standard product warranty. For details, please contact Creation Networks.
