Meyer Sound MCP50-X40 Cluster Plate Kit - 40.287.100.01
Product Overview

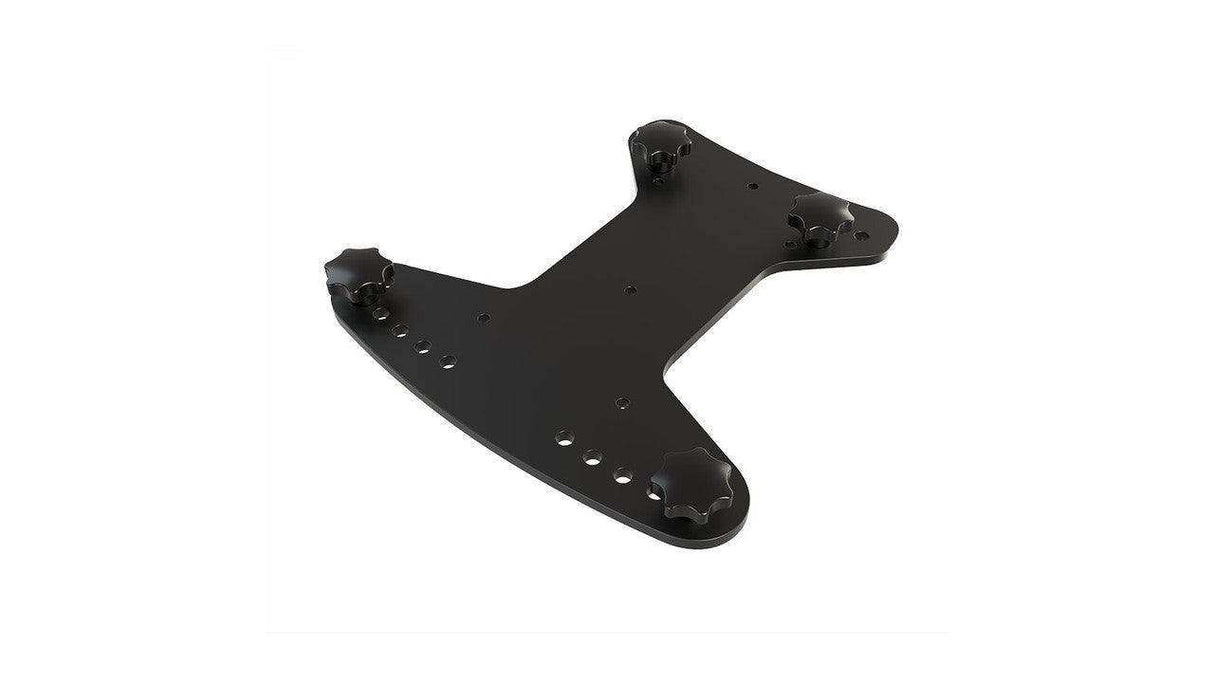

The Meyer Sound MCP50-X40 Cluster Plate Kit facilitates installation of ULTRA-X40 and ULTRA-X42 loudspeakers in horizontal and vertical clusters at splay angles between 10 and 50 degrees. The kit includes two cluster plates and the associated mounting hardware. This component is part of Meyer Sound's ULTRA-X40 rigging accessory range.
Product Description
The MCP50-X40 50-degree cluster plate kit enables clustering of multiple loudspeakers in both horizontal and vertical arrays at angles between 10 and 50 degrees in 5-degree increments. The kit includes two cluster plates, eight M8 bolts, and eight M8 knobs. The MTC-X40 Top Channel accessory, sold separately, can be attached to the MCP50-X40 to serve as a top pick-up point. It is compatible with both the ULTRA-X40 and ULTRA-X42 loudspeakers. Additional Meyer Sound products are available in the Meyer Sound collection.
Key Features
- Cluster Mounting — Supports horizontal and vertical clustering of ULTRA-X40 and ULTRA-X42 loudspeakers.
- 10 to 50 Degree Splay — Sets cluster angles between 10 and 50 degrees in 5-degree increments.
- Included Hardware — The kit includes two cluster plates, eight M8 bolts, and eight M8 knobs.
- Top Channel Compatibility — Accepts the optional MTC-X40 Top Channel as a single-point pick-up.
Technical Specifications
| Type | Cluster plate kit |
| Splay Angle Range | 10 to 50 degrees in 5-degree increments |
| Orientation | Horizontal and vertical clusters |
| Included Hardware | Two cluster plates; eight M8 bolts; eight M8 knobs |
| Compatibility | ULTRA-X40 / ULTRA-X42 loudspeakers |
Specifications sourced from Meyer Sound. Subject to change without notice.
