Meyer Sound AMB-HMS Tilt Bracket Replacement Kit - 40.198.041.01
Meyer Sound AMB-HMS Tilt Bracket Replacement Kit - 40.198.041.01 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Meyer Sound AMB-HMS Tilt Bracket Replacement Kit - 40.198.041.01
Product Overview

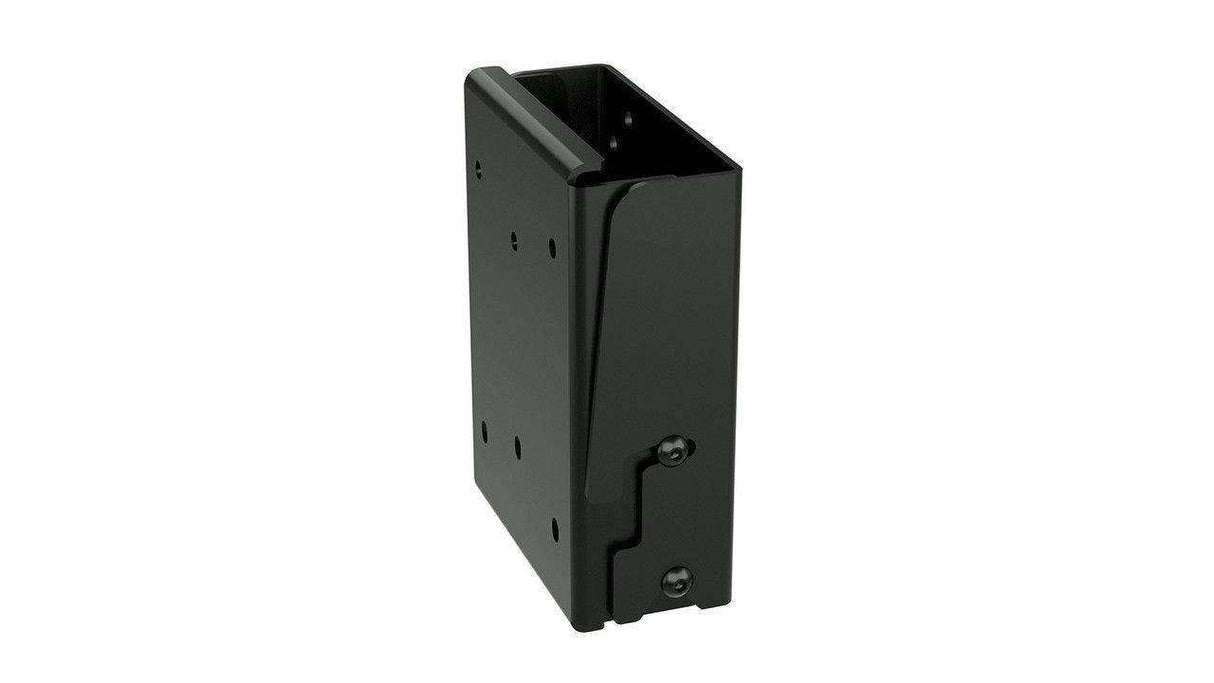

The Meyer Sound AMB-HMS Tilt Bracket Replacement Kit is an adjustable wall-mount bracket for HMS cinema surround loudspeakers. It mounts the loudspeaker on a wall with uptilt or downtilt to aim the cabinet at the listening area. When installed with no tilt, it positions the cabinet 2.24 inches (57 mm) from the wall. This replacement kit restores or adds adjustable-angle wall mounting for HMS surround installations.
Product Description
The AMB-HMS adjustable mount bracket secures an HMS cinema surround loudspeaker to a wall with uptilt or downtilt so the cabinet can be aimed at the audience. Available tilt ranges vary by model: HMS-5 and HMS-10 allow +5 to -16 degrees, HMS-12 allows +5 to -12 degrees, and HMS-15/15AC allows +5 to -10 degrees. With no tilt applied, the bracket mounts the cabinet 2.24 inches (57 mm) from the wall, and it weighs 4.2 lb (1.9 kg). For fixed forward-aimed installations that do not require tilt, the FMB-HMS fixed mount bracket is available. This kit provides the hardware needed to add or replace an adjustable wall bracket on an HMS surround loudspeaker.
Key Features
- Adjustable Tilt Mounting — Mounts HMS loudspeakers on walls with uptilt or downtilt to aim the cabinet at the listening area.
- Model-Specific Tilt Range — Provides +5 to -16 degrees for HMS-5 and HMS-10, +5 to -12 degrees for HMS-12, and +5 to -10 degrees for HMS-15/15AC.
- Defined Wall Standoff — Positions the cabinet 2.24 inches (57 mm) from the wall when installed with no tilt.
- Broad HMS Compatibility — Compatible with the HMS-5, HMS-10, HMS-12, and HMS-15/15AC cinema surround loudspeakers.
- Lightweight Hardware — Weighs 4.2 lb (1.9 kg) for straightforward wall installation.
Technical Specifications
| Type | Adjustable mount wall bracket |
| Tilt Range | HMS-5/HMS-10: +5°/-16°; HMS-12: +5°/-12°; HMS-15/15AC: +5°/-10° |
| Wall Standoff (no tilt) | 2.24 in (57 mm) |
| Weight | 4.2 lb (1.9 kg) |
| Compatibility | HMS-5, HMS-10, HMS-12, HMS-15/15AC |
Specifications sourced from Meyer Sound. Subject to change without notice.
