MaxHub MTR Kit w/ Compute, Touch Console & UC S07 - XT10-VB Kit

Product Overview

The MAXHUB XT10-VB Kit is a Microsoft Teams Rooms kit that combines a certified compute module and touch console with the MAXHUB UC S07 integrated videobar, providing camera and audio in a single bar-form-factor device. Designed for small to medium conference rooms, this MTR Teams Rooms kit with videobar simplifies installation by consolidating the camera and speaker/microphone array into one unit that mounts above or below a room display. The XT10-VB is the preferred choice for rooms where cable management and clean aesthetics matter, and for organizations that want a one-cable-to-display deployment with no separate speakerphone or camera to manage. It carries Microsoft Teams Rooms on Windows certification and ships with a 3-year advanced replacement warranty.

Product Description

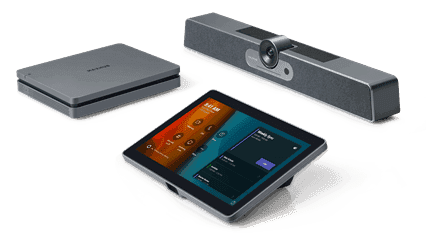

The MAXHUB XT10-VB Kit contains three components: the MAXHUB XC13T Mini-PC compute module, the MAXHUB TCP20T 10.1-inch Touch Control Panel, and the MAXHUB UC S07 all-in-one USB videobar. The XC13T runs Windows 11 IoT Enterprise with Microsoft Teams Rooms pre-loaded, driven by an Intel 12th Gen 10-core i3 processor. The TCP20T connects to the compute module via a single cable. The UC S07 videobar integrates a 12MP 4K lens with 120-degree field of view, 5x zoom, and an 8-meter voice pick-up range into one compact unit with PoE power support, eliminating the need for a separate speakerphone. A single cable deployment from compute to console, paired with the videobar connecting to the display infrastructure, results in a minimal-cable room install. Compare with the MAXHUB XT10-WS Kit for a separate camera and speakerphone bundle, or the MAXHUB XCORE KIT for a compute-only option. Browse all MAXHUB kits in the MAXHUB collection at Creation Networks.

Key Features

• MAXHUB UC S07 Integrated Videobar — Combines 4K camera (12MP, 120-degree FOV, 5x zoom) and speaker/microphone array with 8-meter voice pick-up into a single bar unit, reducing device count and cabling in the room.
• Microsoft Teams Rooms Certified — The complete XT10-VB Kit is certified for Microsoft Teams Rooms on Windows, covering the compute module, touch console, and UC S07 videobar.
• PoE Power on UC S07 — The UC S07 videobar supports Power over Ethernet, allowing flexible placement above or below a display without requiring a local power outlet near the bar.
• Intel 12th Gen 10-Core i3 Compute (XC13T) — Delivers consistent performance for Teams Rooms workloads; capable of handling simultaneous content sharing and peripheral management without performance degradation.
• 10.1-Inch Touch Console with Motion Sensor (TCP20T) — Provides certified Teams Rooms front-of-room controls with automatic room activation via motion sensor.
• Single-Cable Console Connection — One cable links the XC13T compute module to the TCP20T touch console, simplifying rack or table deployment.
• 3-Year Advanced Replacement Warranty — All components in the XT10-VB Kit are covered by MAXHUB’s 3-year hot-swap warranty, minimizing operational downtime.

Typical Applications

• Small to medium conference rooms where a videobar form factor is preferred over separate camera and speakerphone components
• Huddle rooms and focus rooms requiring a clean, low-cable installation
• Commercial meeting spaces where aesthetic cable management is a priority
• Government spaces standardizing on a certified Teams Rooms videobar-based solution
• Training rooms needing consistent audio/video coverage from a single bar-mounted device
• Multi-purpose rooms where simplified setup and teardown between different configurations is needed

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Is the MAXHUB XT10-VB Kit certified for Microsoft Teams Rooms?
Yes. The XT10-VB Kit carries Microsoft Teams Rooms on Windows certification. The XC13T compute module, TCP20T touch console, and UC S07 videobar all operate within the certified Teams Rooms ecosystem.

What is included in the XT10-VB Kit?
The kit includes the MAXHUB XC13T compute module, MAXHUB TCP20T 10.1-inch touch console, and MAXHUB UC S07 all-in-one videobar. A room display is not included.

What is the difference between the XT10-VB Kit and the XT10-WS Kit?
The XT10-VB Kit includes the UC S07 integrated videobar (camera and audio combined), while the XT10-WS Kit includes separate UC W31 camera and UC BM35 speakerphone components. The videobar approach in the XT10-VB reduces cable count; the separate-component approach in the XT10-WS provides more placement flexibility.

What room size is the XT10-VB Kit designed for?
The UC S07 videobar’s 120-degree field of view and 8-meter voice pick-up range make the XT10-VB Kit appropriate for small to medium conference rooms, typically seating up to ten participants.

Does the UC S07 videobar support PoE power?
Yes. The UC S07 supports Power over Ethernet (PoE), allowing it to be powered via a Cat cable connection without a separate power adapter near the display.

What warranty and support are included?
MAXHUB provides a 3-year advanced replacement warranty on the XT10-VB Kit. For purchasing and deployment assistance, contact Creation Networks directly.
