MaxHub V8650 XBoard V7 Series 86", 4K Flat Panel UHD Display

Product Overview

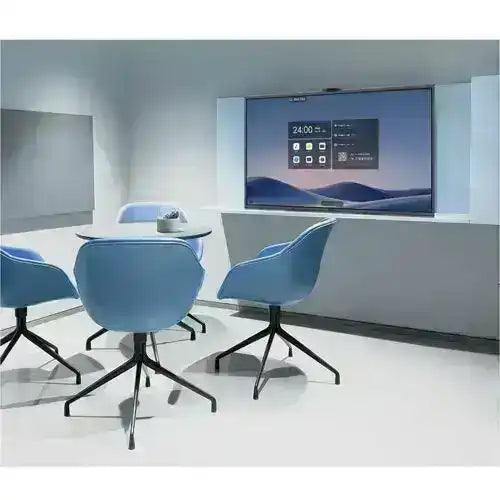

The MAXHUB V8650 XBoard V7 is an 86-inch interactive flat panel built for large conference rooms, boardrooms, all-hands spaces, and training facilities where display size and integrated AV capability are essential. Featuring 4K UHD resolution, a Trident Lens triple-camera system, a 16-microphone array with 15-meter reach, and a 50-point infrared touch surface, this 86-inch interactive meeting room display eliminates the need for external cameras, microphones, or speakers in most large-room deployments. The V8650 supports both Android-based operation via MAXHUB OS 7.0 and Windows compute through an OPS module slot, making it a flexible platform for any room configuration.

Product Description

The MAXHUB V8650 XBoard V7 delivers an 86-inch interactive 4K UHD display designed for large collaboration spaces where every participant — in-room or remote — needs clear sightlines, reliable touch, and professional audio. The ADS panel maintains 350 nits of brightness across a 90% NTSC color gamut (ΔE ≤1.5) with a non-glare 9H tempered glass surface rated for 50,000+ hours. Three 50-megapixel cameras form the Trident Lens system: one ultra-wide at 99° horizontal FOV for panoramic room coverage and two telephoto cameras with 5x hybrid zoom for focused participant framing with AI speaker tracking. The 16-microphone array covers 180° to 15 meters with AEC, ANC, and AGC, handling large-room audio without auxiliary microphones in standard configurations. The 50-point infrared touch system responds in under 2.5 ms with Windows Ink, palm rejection, and direct annotation support. An OPS module slot accepts MT71S or MT71P Windows PC modules for a self-contained Windows 11 Pro or Windows 10 IoT environment. BYOM connection uses USB-C IN (DP 1.2) or dual HDMI IN at 4K@60Hz. RS-232 and IP control ensure compatibility with installed control systems. For medium rooms, consider the MAXHUB V7550 XBoard V7 75″ or the MAXHUB V6550 XBoard V7 65″. See the full MAXHUB collection at Creation Networks.

Key Features

• 4K UHD Display — 86-inch ADS panel, 3840×2160, 350 nits brightness, 1200:1 contrast ratio, 90% NTSC color gamut, ΔE ≤1.5.
• 50-Point Infrared Touch — ≤2.5 ms response, Windows Ink, palm rejection, and direct annotation for large-room interactive use.
• Trident Lens Camera System — Three 50 MP cameras: 99° ultra-wide room view + dual telephoto with 5x hybrid zoom and AI speaker tracking.
• 16-Microphone Array — 180° pickup, 0–15 m range, with AEC, ANC, and AGC for large-room coverage without auxiliary mics.
• 2.1 Speaker System — 2 × 10W + 20W subwoofer for clear in-room audio reinforcement.
• OPS Module Slot — Accommodates MT71S/MT71P Windows PC modules (12th Gen Intel, Windows 10 IoT or Windows 11 Pro).
• BYOM and External Input — USB-C IN (DP 1.2, BYOD); HDMI IN ×2 at 4K@60Hz, HDCP 2.2; HDMI OUT ×1 from PC module.
• Wireless Screen Sharing — MAXHUB Share supports Miracast, AirPlay, Chromecast, and P2P.
• AV Control Integration — RS-232 and IP control; Crestron, Extron, Q-SYS compatible.
• Wi-Fi 6 and Bluetooth 5.2 — 802.11ax 2.4/5 GHz and BT 5.2 via PC module.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Training room
• Auditorium
• Government space
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Is the V8650 compatible with Microsoft Teams or Zoom?
Yes, with the optional Windows OPS module installed or via a BYOM laptop connected through USB-C or HDMI IN, the V8650 runs Teams, Zoom, and all standard UC platforms.

Does the V8650 include a Windows PC?
No. The OPS module slot accepts an optional MT71S or MT71P PC module (sold separately), which provides a full Windows 11 Pro or Windows 10 IoT environment.

What are the mounting requirements?
The V8650 uses a 400×200 mm VESA pattern with M8×25 mm screws. Due to the size and weight of an 86-inch display, professional wall mounting by a qualified installer is strongly recommended. Contact Creation Networks for mounting solutions.

Can the V8650 integrate with Crestron or Q-SYS?
Yes. The display supports RS-232 (baud rate 9600) and IP control with verified compatibility for Crestron, Extron, and Q-SYS AV control systems.

How is wireless screen sharing handled?
MAXHUB Share enables Miracast, AirPlay, Chromecast, and P2P connection from Windows, macOS, iOS, and Android. The WT13 wireless dongle is also supported via the USB-C IN port.

What warranty and support is available?
The V8650 carries a 3-year manufacturer warranty. Contact Creation Networks for procurement, installation support, and service inquiries.
