MaxHub- UC S15 All-in-one 4K AI USB Android Videobar with 8m Voice Pick-up, 120 FOV

Product Overview

The MAXHUB UC S15 is an all-in-one 4K AI Android videobar built for huddle rooms and small meeting spaces that require both wired and wireless BYOD capability in a single bar. Running Android 9.0 with a built-in system, the UC S15 operates independently as a room endpoint or connects a host laptop via USB-C for classic BYOM use. As a compact USB Android conference bar with AI noise reduction, it addresses the growing demand for flexible, platform-agnostic video conferencing bars in corporate huddle rooms and small conference rooms. The MAXHUB Pivot software enables wireless content sharing and collaboration without additional hardware.

Product Description

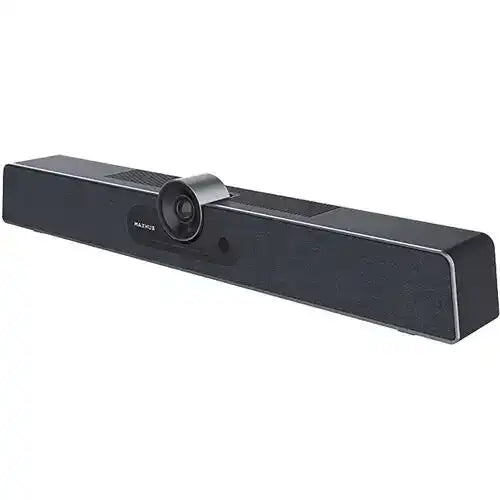

The MAXHUB UC S15 delivers a complete audio-video conference solution in a single bar, housing a 12MP Sony sensor 4K camera, 6-element beamforming microphone array, and a dual-driver speaker within a slim, wall-mountable form factor. The 120° horizontal field of view captures the full seating width of huddle and small meeting rooms without mechanical adjustment. AI-powered auto-framing dynamically adjusts the field of view based on participant count and position, while real-time speaker tracking keeps the active talker centered in the frame. The 6-microphone MEMS array provides up to 6-meter voice pickup with AI noise reduction, echo cancellation, and anti-reverberation processing, ensuring clear audio even in acoustically live spaces. An 8W + 3W tweeter/woofer configuration delivers balanced audio reinforcement for in-room participants. Wired BYOD connects via USB-C directly to a host laptop, while the built-in Android 9.0 system and MAXHUB Pivot platform enable wireless content sharing from any device over Wi-Fi. An HDMI output allows the bar to drive an external room display directly. For a comparable USB-only bar with PoE support, consider the MAXHUB UC S07, or step up to a full Teams Rooms system with the MAXHUB XBAR U50. Browse the complete line at the MaxHub collection on Creation Networks.

Key Features

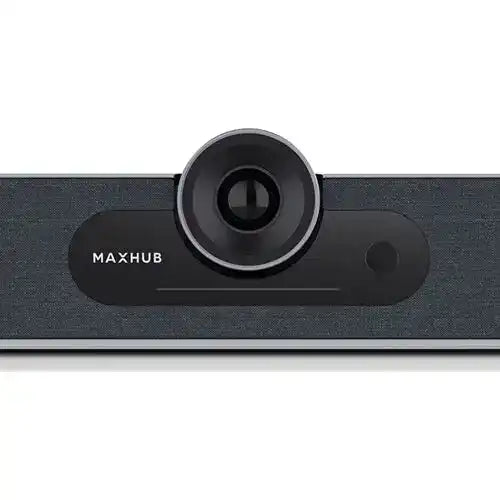

• 4K Camera with 12MP Sony Sensor — 1/2.3-inch Sony sensor delivers 3840×2160 resolution with 5× digital zoom and fixed-focus optics optimized for huddle room distances.
• 120° Ultra-Wide Field of View — Captures the full width of small and huddle rooms, eliminating the need for manual pan or tilt adjustments.
• 6-Element Beamforming Microphone Array — Six MEMS microphones with AI noise reduction, echo cancellation, and anti-reverberation provide 6-meter full-duplex voice coverage.
• 8W + 3W Tweeter/Woofer Speaker — Dual-driver audio design ensures clear, balanced audio reinforcement for all participants in the room.
• Wired & Wireless BYOD — USB-C connects a host laptop for plug-and-play operation; Wi-Fi wireless mode via MAXHUB Pivot supports device-agnostic content sharing.
• Built-in Android 9.0 System — Onboard compute runs MAXHUB Pivot and supports wireless projection without a separate room PC or compute module.
• HDMI Output — Drives an external display directly from the bar for single-cable display connectivity in small room deployments.
• AI Auto-Framing & Speaker Tracking — Real-time participant detection and active-speaker tracking keep all meeting participants visible without manual intervention.
• 3-Year Warranty — Backed by MaxHub's standard 3-year product warranty for commercial installations.

Typical Applications

• Huddle room BYOD video conferencing with wireless and wired options
• Small conference room with integrated Android compute
• Commercial meeting space requiring platform-agnostic videobar
• Multi-purpose room with wireless content sharing

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Does the UC S15 require a separate room PC or compute module?
No. The UC S15 includes a built-in Android 9.0 system and can operate standalone for wireless content sharing via MAXHUB Pivot. For full video conferencing with a specific platform, connect a host laptop via USB-C for wired BYOD operation.

What platforms are compatible with the UC S15?
The UC S15 operates as a standard USB audio/video device, making it compatible with Zoom, Microsoft Teams, Google Meet, Webex, and other software clients when connected to a host laptop via USB-C. The built-in Android system supports MAXHUB Pivot wireless projection independently of any specific UC platform.

How does wireless content sharing work?
MAXHUB Pivot enables wireless screen sharing from Windows, macOS, iOS, and Android devices over a local Wi-Fi connection. Users connect to the bar’s local network or share via the MAXHUB Pivot app without requiring a laptop cable connection.

Can the UC S15 drive an external display?
Yes. The bar includes an HDMI output port that connects directly to a room display. This allows the UC S15 to serve as both the conferencing bar and the display driver in compact room setups.

What warranty and support are available?
The UC S15 is covered by a 3-year manufacturer warranty. For purchasing, configuration assistance, and post-sale support, contact Creation Networks at creationnetworks.net.
