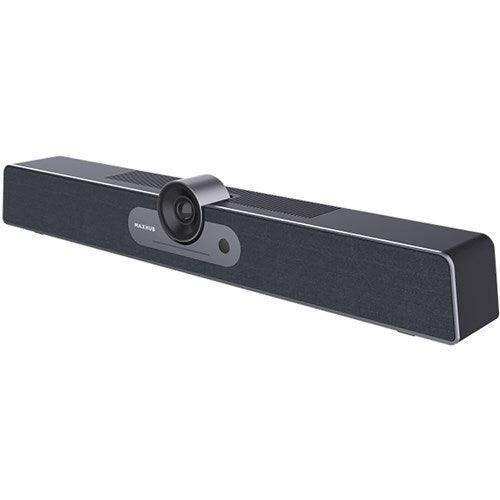

Maxhub UC S07 All-in-one 4K USB Videobar with 8m Voice Pick-up, 120 FOV, 12MP, 5X Zoom, PoE Power for Sm & Med sized Rm (Zoom Certified/Teams Certified Pending)

Product Overview

The MAXHUB UC S07 is an all-in-one 4K USB videobar engineered for small and medium conference rooms requiring a single-cable audio-video solution. Designed for BYOM (Bring Your Own Meeting) deployments, it delivers 12MP Sony-sensor imaging, 120° field of view, and a 6-microphone beamforming array in a single wall-mountable bar. As a Zoom-certified USB conference camera bar with Teams certification pending, the UC S07 suits IT teams standardizing on a USB-C plug-and-play videobar for huddle rooms and mid-size meeting spaces. Its PoE power option eliminates the need for a separate power brick, simplifying cable management in conference room AV installations.

Product Description

The MAXHUB UC S07 consolidates camera, microphone, and speaker into a single USB conference bar, removing the need for separate peripherals in a conference room AV setup. The 1/2.3-inch 12MP Sony sensor outputs up to 3840×2160 resolution at 30fps, while the 120° horizontal field of view covers the full width of a small-to-medium room without panning. Five-times digital zoom and up to 10 electronic PTZ presets allow operators to quickly reframe for different participant counts. The 6-element beamforming microphone array picks up voices across an 8-meter range and pairs with an 11W full-range speaker for natural in-room audio reinforcement. AI-powered auto-framing and direction-of-arrival (DOA) speaker tracking keep active participants centered without manual intervention. Power-over-Ethernet (IEEE 802.3af/at) means the bar can be powered entirely from the network switch, and a USB-C cable carries all audio and video data to the host laptop or room PC. A built-in PIR sensor triggers automatic wake-up when occupancy is detected within 3 meters, conserving power between meetings. For installations requiring comparable all-in-one USB videobars, consider the MAXHUB UC S15 with Android-based operation, or browse the full MaxHub collection at Creation Networks. The XBAR series — including the MAXHUB XBAR U50 — steps up to 100MP imaging and Teams Rooms compute for larger spaces.

Key Features

• 12MP Sony Sensor, 4K Resolution — 1/2.3-inch Sony image sensor captures 3840×2160 at 30fps with H.264 and MJPEG encoding for sharp, detail-rich video.
• 120° Ultra-Wide Field of View — Fixed-lens 120° FOV covers the full seating width of small and medium rooms without mechanical pan or tilt.
• 5× Digital Zoom & PTZ Presets — Electronic pan, tilt, and zoom with up to 10 configurable presets enables quick reframing for different room layouts.
• 6-Element Beamforming Microphone Array — Six MEMS microphones with beamforming DSP provide 8-meter voice pickup, echo cancellation, and noise suppression.
• 11W Integrated Speaker — Full-range 11W speaker delivers conference-grade audio reinforcement for room occupants without an external speaker system.
• PoE Power (IEEE 802.3af/at) — Power-over-Ethernet input eliminates dedicated power cabling; USB-C carries full AV data to the host device in a two-cable total installation.
• AI Auto-Framing & Speaker Tracking — Human-detection auto-framing and DOA voice tracking keep active participants in frame without manual PTZ operation.
• PIR Occupancy Sensor — Passive infrared sensor activates the bar when presence is detected within 3 meters and enters standby after 30 minutes of inactivity.
• Zoom Certified / Teams Certification Pending — Native USB class device compatibility ensures driver-free operation on Windows and macOS with Zoom, and Teams certification is in process.

Typical Applications

• Huddle room video conferencing with BYOM laptop connection
• Conference room AV with PoE-powered single-cable installation
• Commercial meeting space standardized on USB-C peripherals
• Multi-purpose room requiring a compact all-in-one videobar

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Is the UC S07 certified for Microsoft Teams?
Teams certification was pending at time of listing. It is fully Zoom certified and operates as a standard USB audio/video class device on any platform that accepts USB webcams. Verify current certification status at the Microsoft Teams devices catalog.

How does PoE power work with the UC S07?
The bar accepts IEEE 802.3af or 802.3at Power-over-Ethernet from a compatible network switch or PoE injector. A single Cat5e or Cat6 cable delivers both network connectivity and power to the bar. A USB-C cable then connects the bar to the host laptop or room PC for audio and video data.

Can the UC S07 be mounted above or below a display?
Yes. The unit ships with wall-mount hardware and can be positioned above or below a display. The 120° FOV and AI auto-framing compensate for varying mounting heights across typical small and medium room configurations.

Does the UC S07 require any drivers or software?
No. The UC S07 is a USB plug-and-play device that enumerates as a standard USB UVC camera and UAC audio device. No drivers are required on Windows 10/11 or macOS. The MAXHUB device management software is optional for fleet administration.

What support options are available for the UC S07?
The UC S07 is backed by a 3-year warranty with hot-swap replacement. For purchasing, installation support, and AV integration assistance, contact Creation Networks at creationnetworks.net.
