MaxHub UC BM45 Bluetooth Speakerphone, USB, 8-array mics, 8m pickup, (Teams Certified)

Product Overview

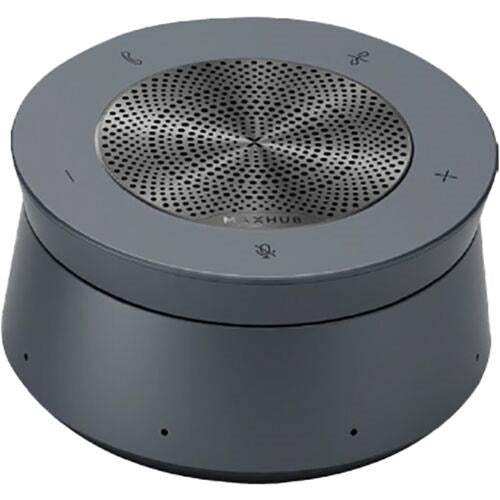

The MAXHUB UC BM45 is a Microsoft Teams-certified conference speakerphone engineered for small to large meeting rooms, incorporating an 8-beam microphone array with a full 8-meter voice pickup radius and AI-powered noise suppression. As a premium Teams-certified speakerphone with daisy-chain capability, the BM45 supports full-duplex audio, wired and wireless connectivity, and multi-unit cascading to scale coverage across any room footprint. The 8-beam array applies directional beamforming to each active speaker location, delivering measurably better voice clarity than single-pattern omnidirectional devices in acoustically challenging spaces. For AV integrators and IT managers specifying audio conferencing for boardrooms, large conference rooms, and all-hands spaces, the UC BM45 represents the top of the MAXHUB speakerphone line.

Product Description

The UC BM45 uses an 8-beam microphone array that simultaneously tracks up to eight active speaker directions, applying independent beamforming to each beam for precise voice isolation. The 8-meter pickup radius extends coverage to large conference tables and wide all-hands rooms where single-unit speakerphones often produce inconsistent audio quality at the periphery. AI noise suppression operates continuously on the microphone output, removing background noise artifacts — air handling units, laptop fans, and external ambient sounds — before the audio stream reaches the far end of the call. Full-duplex audio processing allows both sides of a call to speak simultaneously without clipping or half-duplex switching, which is essential for natural multi-party conversations. When a single unit’s 8-meter radius is insufficient for a very long table or an L-shaped room layout, multiple BM45 units can be daisy-chained to create a unified audio zone without splitting the call or requiring a separate audio DSP. MAXHUB’s Pivot remote device management tool supports the BM45, allowing IT teams to monitor device status, push firmware updates, and troubleshoot issues without being on-site. Microsoft Teams certification confirms the BM45 meets Microsoft’s stringent audio quality and integration requirements for Teams Room and soft-client deployments. The BM45 connects via USB for plug-and-play use on any laptop or room system, and also supports Bluetooth for wireless configurations. For mid-range room coverage, the MAXHUB UC BM35 provides 6-meter dual-certified coverage. For compact huddle rooms, the MAXHUB BM20 is the entry-level option. Explore the complete MAXHUB AV portfolio at the MAXHUB collection on Creation Networks.

Key Features

• 8-Beam Microphone Array — Applies independent directional beamforming to up to eight simultaneous speaker locations for precise voice isolation in large rooms.
• 8-Meter Voice Pickup Radius — Covers large conference tables, boardrooms, and all-hands spaces up to 8 meters from the device.
• Microsoft Teams Certified — Verified to meet Microsoft’s audio performance and integration requirements for Teams meetings and Teams Rooms deployments.
• AI Noise Suppression — Real-time AI processing removes background noise including HVAC, laptop fans, and ambient room sounds from the outgoing audio stream.
• Full-Duplex Audio — Allows all participants to speak simultaneously without half-duplex clipping or interruption, enabling natural multi-party conversation.
• Daisy-Chain Multi-Unit Cascading — Multiple BM45 units can be linked to extend audio coverage across very long tables or irregularly shaped rooms.
• MAXHUB Pivot Remote Management — Supports remote monitoring, firmware updates, and diagnostics via MAXHUB’s Pivot device management platform.
• USB and Bluetooth Connectivity — Plug-and-play USB connection for room systems and laptops; Bluetooth for wireless configurations.
• XBoard Interactive Display Integration — Designed for effortless pairing with MAXHUB XBoard interactive displays for a unified AV conferencing experience.

Typical Applications

• Boardroom requiring certified Teams audio with 8-meter coverage and multi-beam voice tracking
• Large conference room where a single 4–6 meter speakerphone cannot reach all participants
• All-hands room with audience seating beyond standard speakerphone pickup range
• Government meeting space where Teams certification and remote device management are procurement requirements
• Commercial meeting space with IT teams using MAXHUB Pivot for centralized speakerphone monitoring
• Multi-purpose room requiring scalable audio coverage via daisy-chained BM45 units
• House of worship AV system using the BM45 for clear participant audio in video-conferenced services

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Is the MAXHUB UC BM45 certified for Microsoft Teams?
Yes. The UC BM45 carries Microsoft Teams certification, confirming it meets Microsoft’s audio performance and integration requirements. It is suitable for both Microsoft Teams soft-client deployments and Teams Rooms configurations.

Can the BM45 be used with Zoom?
The BM45’s Teams certification is its primary platform validation. It connects via USB as a standard audio device, making it compatible with Zoom and other UC platforms that accept USB audio peripherals, though Zoom certification is held by the UC BM35 model.

How many units can be daisy-chained together?
Multiple BM45 units can be cascaded to extend coverage for long conference tables or large rooms. Contact Creation Networks to discuss the optimal configuration for your specific room dimensions.

What is MAXHUB Pivot and does it support the BM45?
MAXHUB Pivot is MAXHUB’s remote device management platform. It supports the BM45, enabling IT administrators to monitor device health, push firmware updates, and perform remote diagnostics without on-site visits.

Does the BM45 work with MAXHUB XBoard interactive displays?
Yes. The BM45 is designed for native integration with MAXHUB XBoard interactive displays, providing a unified conferencing experience when paired with the display’s built-in collaboration software.

What warranty and support does Creation Networks offer?
Contact Creation Networks for warranty terms, advanced replacement eligibility, and project support for UC BM45 deployments in your organization.
