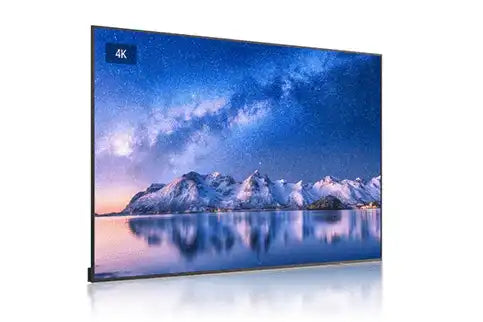

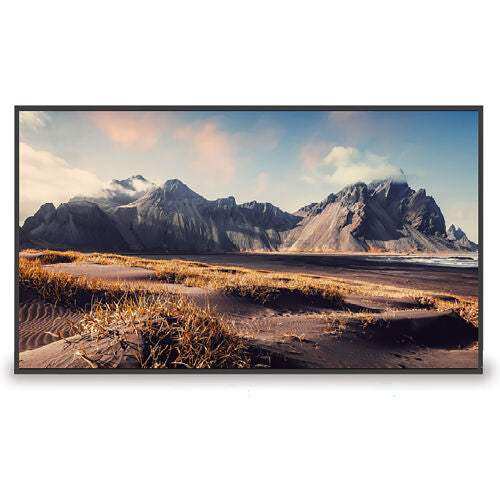

MaxHub ND86CMA 86" 4K Commercial Display

Product Overview

The MAXHUB ND86CMA is an 86" 4K UHD commercial display built for large meeting rooms, all-hands spaces, and corporate digital signage installations that require commanding screen size with enterprise-grade reliability. The ADS panel delivers 500 nits across a 178° wide-angle surface, with an 80-pin OPS slot for Windows PC module integration and 24/7 duty-cycle certification for continuous commercial deployment. Crestron Connected and NDI certified, the ND86CMA integrates into professional AV control systems and IP video workflows. MAXHUB Pivot enables cloud-based remote device management at scale.

Product Description

The MAXHUB ND86CMA 86" commercial display addresses large-room AV requirements where displays under 80" cannot fill the visual field for full rooms of attendees. The ADS panel at 4K UHD (3840×2160) maintains 178° horizontal and vertical viewing angles, keeping color and contrast consistent for attendees seated at the edges of a large boardroom or training facility. At 500 nits, the panel holds its own against the ambient light levels in daylit conference rooms and government briefing spaces. The 80-pin OPS slot accepts OPS62A-compatible Windows modules for on-display Microsoft Teams Rooms, Zoom, or Webex without an external compute device. MAXHUB Share delivers wireless BYOD screen sharing via Miracast, AirPlay, and Chromecast with picture-by-picture display of two sources simultaneously. The full-function USB Type-C port provides 65W laptop charging while handling screen and network sharing over a single cable. Conformal board coating and non-glare panel treatment provide the commercial resilience expected in always-on installations. MAXHUB Pivot cloud management supports remote firmware updates, content publishing, and diagnostic monitoring across deployed display fleets. For the next size up, see the MAXHUB ND98CMA 98". For smaller rooms, see the MAXHUB ND75CMA 75" or browse the full MAXHUB collection at Creation Networks.

Key Features

• 4K UHD ADS Panel — 3840×2160 ADS panel with full 178° H/V viewing angle for consistent color accuracy across large-room seating arrangements.
• 500 Nits Brightness — High-output backlight maintains commercial display visibility in ambient-lit boardrooms, training rooms, and government spaces.
• OPS Slot (80-pin / OPS62A) — Built-in OPS expansion slot for Windows PC module integration; supports Teams Rooms, Zoom, Webex, and digital signage applications.
• 24/7 Commercial Duty Cycle — Continuous operation rated with a minimum panel lifetime of 50,000 hours for always-on commercial deployments.
• MAXHUB Share Wireless Screen Sharing — BYOD-compatible wireless sharing via Miracast, AirPlay, and Chromecast; picture-by-picture dual-source display.
• Crestron Connected Certified — One-touch power and input control via XiO Cloud; native Crestron AirMedia integration without custom scripting or drivers.
• USB Type-C (65W Power Out) — Single-cable screen share, network share, and 65W laptop charging from the USB-C port.
• NDI Certified — Native IP video decoding over NDI protocol for broadcast, education, and IP AV production environments.
• Non-Glare & Conformal Coating — Anti-reflective surface and conformal board coating for commercial-grade durability in continuous-operation installations.
• RS232 / IP Control — Full serial and Ethernet control compatibility with Crestron, Extron, Q-SYS, and other professional AV control systems.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Training room
• Commercial meeting space
• Government space
• House of worship
• Auditorium

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

What OPS module is compatible with the ND86CMA?
The ND86CMA accepts OPS62A-compatible 80-pin slot-in Windows PC modules. Contact Creation Networks for compatible module options for Teams Rooms or digital signage deployments.

What is the VESA mount spec and weight requirement?
The ND86CMA uses a WIB9080A wall mount. Net weight is 43.15 kg (95 lbs). Ensure wall structure and mount hardware are rated for this load before installation.

How does the 24/7 rating compare to standard displays?
Consumer displays are typically rated for 8–12 hours per day. The ND86CMA's 24/7 commercial rating and 50,000-hour panel lifetime are designed for continuous digital signage and always-on meeting room applications.

What conferencing platforms can it run with an OPS module installed?
With an OPS62A Windows PC module, the ND86CMA supports Microsoft Teams Rooms, Zoom, Webex, Google Meet, and any other Windows-based conferencing or digital signage application.

Is wireless screen sharing supported without an OPS module?
Yes. The built-in Android system with Wi-Fi 6 supports MAXHUB Share, Miracast, AirPlay, and Chromecast for wireless BYOD screen sharing without a connected PC.

How do I get warranty and installation support?
Contact Creation Networks for warranty service coordination, installation guidance, and volume pricing on the ND86CMA.
