MaxHub ND55CMA 55" 4K Commercial Display

Product Overview

The MAXHUB ND55CMA is a 55" 4K UHD commercial-grade display designed for digital signage, meeting rooms, and open-plan collaboration environments where reliable long-duration performance is required. Delivering 500 nits through a non-glare VA panel with conformal board coating, it maintains clear visibility in ambient-lit commercial settings while resisting environmental contaminants. MAXHUB Share wireless BYOD screen sharing and MAXHUB Pivot remote device management simplify deployment and day-to-day IT administration. The ND55CMA is Crestron Connected and NDI certified, fitting directly into professional AV control and IP video workflows.

Product Description

The MAXHUB ND55CMA 55" commercial display targets deployments where screen size needs to scale with the room without sacrificing image precision. The VA panel at 4K UHD (3840×2160) achieves a 5000:1 native contrast ratio that keeps text and graphics sharp even at acute viewing angles across a meeting table. At 500 nits, the backlight handles lit conference rooms and lobby installations without washing out. The 24/7 duty-cycle rating and 50,000-hour minimum panel lifetime mean IT teams can schedule content around the clock with confidence. Wi-Fi 6 via the SI07B module supports simultaneous 2.4G/5G connections and the MAXHUB Share app for wireless screen sharing through Miracast, AirPlay, and Chromecast from up to four devices at once. Picture-by-picture (PBP) mode allows two source inputs to display side by side for comparison or dual-presenter scenarios. RS232 and IP control ports enable full system integration, and the Crestron Connected certification allows one-touch AV control via XiO Cloud without custom scripting. The ND55CMA ships portrait/landscape capable for flexible mounting orientations. For smaller rooms, consider the MAXHUB ND43CMA 43". For larger conference rooms, see the MAXHUB ND65CMA 65" or browse the full MAXHUB collection at Creation Networks.

Key Features

• 4K UHD Resolution — 3840×2160 VA panel with 10-bit color delivers precise, accurate imagery for conference room and digital signage applications.
• 500 Nits Brightness — Commercial-grade backlight output maintains legibility in ambient-lit environments including open offices, lobbies, and meeting rooms.
• 24/7 Duty Cycle — Rated for continuous commercial operation; minimum panel lifetime of 50,000 hours for always-on signage and display installations.
• Non-Glare & Conformal Coating — Anti-reflective panel surface and conformal board coating resist humidity, dust, and salt in commercial installations.

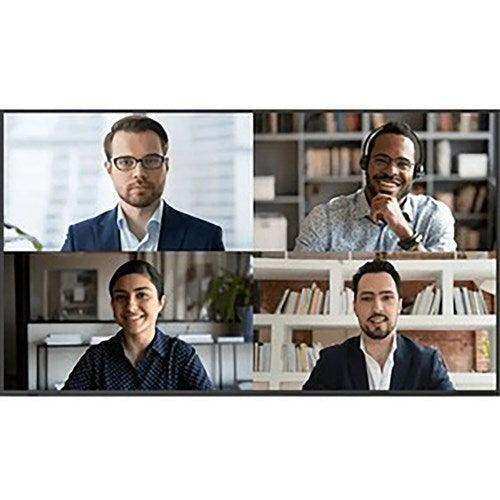

• MAXHUB Share Wireless Screen Sharing — BYOD-compatible with Miracast, AirPlay, and Chromecast; supports picture-by-picture from two simultaneous sources.
• Crestron Connected Certified — One-touch power and input control via Crestron AirMedia and XiO Cloud; integrates with enterprise AV management without custom programming.
• NDI Certified — Direct IP video decoding over NDI protocol, eliminating HDMI infrastructure in broadcast and IP video production workflows.
• RS232 / IP Control — Serial and network control ports for third-party AV control system integration including Crestron, Extron, and Q-SYS.
• Wi-Fi 6 Built-In — Dual-band 802.11ax module supports simultaneous Wi-Fi client and hotspot modes for meeting room device connectivity.
• Portrait / Landscape Orientation — Flexible mounting orientation for wall installations in both standard landscape and vertical digital signage configurations.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Commercial meeting space
• Government space
• Training room
• Multi-purpose room

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Does the ND55CMA have an OPS slot for a Windows PC module?
No. The 55" CMA model does not include an OPS expansion slot. OPS compatibility begins with the ND65CMA and extends through the 98" model.

What VESA mounting pattern does the ND55CMA use?
The ND55CMA uses a WIB4722A compatible wall mount. Standard mounting hardware ships with the unit. Contact Creation Networks to confirm bracket compatibility with your specific installation.

How many devices can share the screen simultaneously?
MAXHUB Share supports up to four devices sharing screens simultaneously, with PBP (picture-by-picture) mode for dual-source display. Latency is rated at under 90ms for near-real-time wireless sharing.

What control system protocols does it support?
The ND55CMA supports RS232 serial control and IP-based control, and is Crestron Connected certified for XiO Cloud management. It is also compatible with Q-SYS and Extron control systems.

Is the ND55CMA rated for 24/7 operation?
Yes. The ND55CMA is rated for 24/7 continuous commercial operation with a minimum panel lifetime of 50,000 hours.

Who do I contact for installation support or warranty service?
Contact Creation Networks for pre-sale configuration guidance, installation support, and warranty service coordination.
