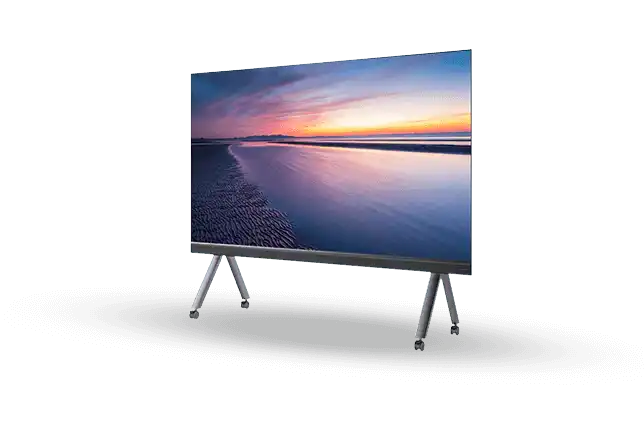

MaxHub DVLED RAPTOR SERIES V3 220" Display PLUS Full HD 1920x1080p - LX220V07

Product Overview

The MaxHub Raptor Series V3 LX220V07 is a 220-inch all-in-one direct-view LED video wall designed for large-scale commercial AV deployments in auditoriums, all-hands facilities, government operations centers, and house of worship environments where a dominant display surface is required. The 2.5 mm pixel pitch SMD panel renders full HD 1920×1080 content with a 6500:1 contrast ratio and wide 160°(H)/140°(V) viewing angles, with a recommended minimum viewing distance of 5 m (16.4 ft). The integrated Raptor V3 platform combines Android 13, an 8-core ARM processor with a 6 TOPS NPU, 8 GB RAM, and the full Raptor connectivity suite in a single wall-mounted cabinet, providing a self-contained collaboration and content delivery system at auditorium scale. As the largest SMD model in the Raptor V3 series, the LX220V07 represents a purpose-built large-format dvLED display for auditoriums and all-hands rooms that would otherwise require multiple LCD panels, blended projection, or tiled displays.

Product Description

The LX220V07 cabinet measures 4910×2869 mm overall with a 4880×2744 mm active display area, and ships at 296 kg (652 lbs), supporting wall-mounting installation. At this scale, the engineering of the wall-mount structure requires professional structural assessment and coordinated installation with the project's general contractor or structural engineer. The 28 mm screen depth allows the display to sit close to the wall surface, consistent with flush-mounted auditorium AV installations. Front-access maintenance is essential at this size: LED modules can be replaced from the front face without any requirement to access the wall cavity behind the cabinet, which is a significant practical advantage in permanent auditorium or government installations. The panel operates at 3840 Hz refresh rate, ensuring clean video capture on broadcast and conference-quality cameras used in hybrid all-hands or live-streamed events. The integrated 6-driver audio system (4 full-range + 2 low-frequency, up to 120 W) provides primary or supplemental audio; for the large rooms the LX220V07 typically serves, a distributed loudspeaker system is likely part of the overall AV design, and the 3.5 mm output feeds that infrastructure directly. Connectivity includes 4× HDMI inputs, HDMI 2.0 output, PoE (30 W), dual LAN, RS232, USB-C, Wi-Fi 6, and Bluetooth 5.3, covering the I/O demands of complex commercial AV control architectures.

For deployments requiring a smaller footprint, the MaxHub LX165V07 165" Raptor V3 and MaxHub LX150V07 150" Raptor V3 offer the same platform at more moderate scales. The optional MaxHub LMT71A Windows PC module adds an internally-mounted Intel Core i5-1240P compute unit for certified Teams Rooms or Zoom Rooms deployments. The complete MaxHub collection at Creation Networks includes cameras, UC peripherals, and mounting systems for full-room AV builds.

Key Features

• 220-inch SMD Direct-View LED — The 4880×2744 mm active display area delivers a full-scale visual presence in auditoriums and all-hands facilities, eliminating the seam lines and alignment issues associated with tiled LCD or blended-projection alternatives.
• 2.5 mm Pixel Pitch with Full HD Resolution — At a 5 m minimum recommended viewing distance, the 2.5 mm pitch renders 1920×1080 content with the clarity and color depth appropriate for corporate presentations, live event production, and government briefings.
• 3840 Hz Refresh Rate — High-frequency panel refresh eliminates visible flicker on broadcast and conference-quality video recording, supporting live-streamed all-hands meetings and production events without screen-capture artifacts.
• Android 13 with 6 TOPS NPU — The integrated platform combines an 8-core ARM processor, 6 TOPS neural processing unit, 8 GB RAM, and 64 GB storage, providing compute capability for advanced applications and AI-assisted content management.
• Front-Access Maintenance at Scale — Individual LED modules are serviceable from the front at all points across the 220-inch surface, allowing technicians to perform targeted repairs in permanent wall installations without rear access or cabinet removal.
• Comprehensive AV I/O — Four HDMI inputs, dual LAN, PoE, RS232 (RJ45), USB-C, and Wi-Fi 6 provide the connectivity range required for integration with professional AV switching, routing, and control systems at auditorium scale.
• Up to 120 W Built-In Audio — The 6-driver internal audio system provides primary or supplemental audio, with a 3.5 mm output for routing to external DSP or distributed speaker systems in large-venue configurations.
• Optional LMT71A Windows PC Module — The internally-mounted LMT71A (Intel Core i5-1240P, 16 GB RAM, 256 GB SSD, Windows 10) enables a certified Teams Rooms endpoint without external rack-mount compute hardware.

Typical Applications

• Auditorium and large-venue primary display and stage backdrop
• All-hands room and corporate town hall focal display
• Government operations center and command-and-control wall
• House of worship main sanctuary and stage program display
• Broadcast studio and live event production wall
• Large training room and multi-presenter conference environments

Technical Specifications

Specifications sourced from the MaxHub Raptor Series V3 datasheet (maxhub.com).

Frequently Asked Questions

What input sources does the LX220V07 support, and can it display multiple simultaneous sources?
The LX220V07 accepts four HDMI inputs (one HDMI 2.0 and three HDMI 1.4) plus USB-C and wireless sources via the built-in Android 13 platform. Multi-source display capabilities depend on the source-switching and content management configuration. The HDMI 2.0 output supports signal loop-through to a secondary display or recording device, which is common in broadcast and live event setups.

What structural and installation requirements apply to the LX220V07?
The LX220V07 is a wall-mount-only unit measuring 4910×2869 mm at 28 mm depth and weighing 296 kg (652 lbs). The wall structure must be engineered by a licensed structural engineer to support this load with the required safety factors under local building codes. A professional AV installation team with experience in large-format LED wall systems is required. Creation Networks can advise on certified installation partners and structural coordination requirements.

Can the LX220V07 run a certified Microsoft Teams Rooms or Zoom Rooms system?
Yes. The integrated Android 13 platform supports Teams and Zoom natively. For a certified Windows-based Teams Rooms deployment, the optional LMT71A internal PC module (Intel Core i5-1240P, 16 GB RAM, 256 GB SSD, Windows 10 IoT) provides that capability. RS232 and dual LAN ports support integration with control systems from Crestron, AMX, Q-SYS, and similar platforms.

Is the built-in audio sufficient for an auditorium, or is external audio required?
The integrated 6-driver system (4 full-range + 2 low-frequency, up to 120 W) is designed as supplemental or primary audio for the display. Most auditorium deployments will require a designed distributed audio system with ceiling or line-array speakers. The 3.5 mm audio output provides a signal feed to an external DSP or amplifier. Creation Networks can assist with full-room audio design as part of the integration project.

What warranty and support are available for the LX220V07?
For warranty terms, installation services, spare module kits, and ongoing support for the MaxHub Raptor LX220V07, please contact Creation Networks. Our team provides pre-sales consultation, structural and AV integration coordination, and post-installation support for large-format commercial LED wall deployments.
