MaxHub DVLED RAPTOR SERIES V3 138" Display PLUS Full HD 1920x1080p - LX138V07

Product Overview

The MaxHub Raptor Series V3 LX138V07 is a 138-inch all-in-one direct-view LED video wall designed for mid-to-large commercial conference rooms, training rooms, and auditorium-scale meeting environments. The 1.5 mm pixel pitch SMD panel renders full HD 1920×1080 content with a 6500:1 contrast ratio and a 160°(H)/140°(V) wide viewing angle, with a recommended minimum viewing distance of 3.2 m (10.5 ft) for pixel-level acuity. Integrated Android 13, an 8-core ARM processor, and 8 GB RAM provide a self-contained collaboration platform compatible with Zoom, Teams, and other UC conferencing applications, while the optional LMT71A Windows PC module enables certified Microsoft Teams Rooms deployments without external compute hardware. The LX138V07 is a large-format dvLED conference room display that combines a commercial-grade SMD LED panel with full-featured AV connectivity in a single cabinet.

Product Description

The LX138V07 has an overall cabinet size of 3080×1840 mm with a 3050×1715 mm active display area, and the unit ships at 122 kg (269 lbs), supporting mobile stand or wall-mounting installation. At 28 mm screen thickness, the panel profile is appropriate for both permanent wall installations and mobile stand deployments in multi-purpose rooms. Front-access maintenance allows LED module replacement from the front face of the display, eliminating the need for rear-access clearance in finished interior spaces. The 3840 Hz refresh rate ensures the display reads cleanly on camera, an important factor in hybrid meeting environments and broadcast studios where screen capture is routine. The integrated audio system (4 full-range + 2 low-frequency drivers, up to 120 W) handles voice reinforcement and content audio without a supplemental amplifier in most commercial room configurations. The LX138V07 connects via four HDMI inputs (1× HDMI 2.0 + 3× HDMI 1.4), dual LAN, PoE, Wi-Fi 6, Bluetooth 5.3, and RS232 for comprehensive AV system integration.

For facilities evaluating adjacent sizes, the MaxHub LX120V07 120" Raptor V3 offers the same platform at a smaller footprint, and the MaxHub LX150V07 150" Raptor V3 provides additional screen area for larger rooms. The optional MaxHub LMT71A Windows PC module installs internally and supports certified Teams Rooms and Zoom Rooms configurations. See the full MaxHub collection at Creation Networks for the complete Raptor V3 lineup and AV accessories.

Key Features

• 1.5 mm Pixel Pitch SMD LED — Delivers full HD 1920×1080 resolution at 138 inches diagonal, providing sharp image quality at commercial conference room viewing distances of 3.2 m and greater.
• 3840 Hz Refresh Rate — The high-frequency panel refresh eliminates visible flicker on camera, making the display appropriate for hybrid meeting rooms, broadcast studios, and spaces with frequent video capture.
• Android 13 with 8-Core ARM Processor — The integrated compute platform runs Android 13 with 8 GB RAM and 64 GB storage, supporting native conferencing applications and eliminating the need for external media players in standard configurations.
• 6-Driver Audio System up to 120 W — Four full-range and two low-frequency built-in drivers deliver up to 120 W, providing adequate room-fill audio for conference and training room use without an external amplifier.
• Front-Access Maintenance — LED modules are serviceable from the front of the display, reducing installation space requirements and simplifying on-site repairs in finished wall configurations.
• Wide Viewing Angle — The 160° horizontal and 140° vertical viewing angles ensure consistent image quality across a wide seating range, appropriate for conference tables with multiple participants at varying positions.
• Wi-Fi 6 and Bluetooth 5.3 — Dual-band 2.4/5 GHz Wi-Fi 6 and Bluetooth 5.3 support wireless content sharing and peripheral connectivity in commercial network environments.
• Optional LMT71A Windows PC Module — The internally-mounted LMT71A PC module (Intel Core i5-1240P, 16 GB, 256 GB SSD, Windows 10) enables certified Teams Rooms deployment with no external rack-mount compute hardware required.

Typical Applications

• Large conference room and boardroom focal display installations
• Training room presentation and multi-source content display
• All-hands room and town hall meeting environments
• Government briefing and command-and-control spaces
• Broadcast studio background and stage display

Technical Specifications

Specifications sourced from the MaxHub Raptor Series V3 datasheet (maxhub.com).

Frequently Asked Questions

What input sources does the LX138V07 support?

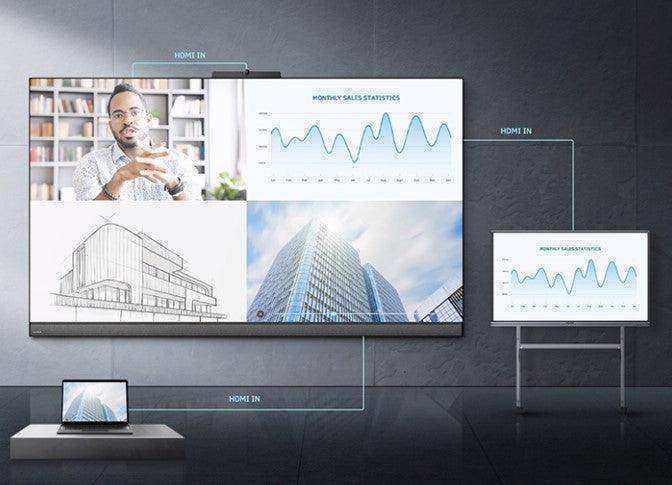

The LX138V07 includes four HDMI inputs (one HDMI 2.0 and three HDMI 1.4), USB-C, and wireless screen sharing via the built-in Android 13 platform. This covers laptops, dedicated media players, AV switchers, and wireless presentation devices commonly used in commercial conference room environments. The one HDMI 2.0 output allows daisy-chaining to a secondary display or recording device.

What are the installation options and maintenance requirements for the LX138V07?
The LX138V07 supports wall-mounting and mobile stand configurations. At 28 mm screen thickness and 122 kg, the wall-mount structure must be engineered accordingly. Front-access maintenance allows module-level service from the front face without rear clearance, which is practical for installations in tightly fitted wall niches or finished AV millwork.

Can the LX138V07 run Microsoft Teams Rooms or Zoom Rooms natively?
The built-in Android 13 platform runs Teams and Zoom applications directly. For a certified Microsoft Teams Rooms or Zoom Rooms deployment with Windows-based management and device policies, the optional LMT71A internal PC module (Intel Core i5-1240P, 16 GB RAM, 256 GB SSD, Windows 10 IoT) provides that capability without external rack compute.

Is the built-in audio sufficient for a mid-size conference room?
The integrated 6-driver system (4 full-range + 2 low-frequency) is rated at up to 120 W and is suitable for rooms up to approximately the dimensions that an 138-inch display serves. The 3.5 mm audio output accommodates connection to an external DSP or amplifier for larger rooms requiring distributed audio or ceiling-speaker integration.

Where can I get warranty and support information for the LX138V07?
For warranty terms, spare parts, and service support on the MaxHub Raptor LX138V07, please contact Creation Networks. Our AV specialists can advise on installation services, extended support agreements, and certified integrator resources for commercial deployments.
