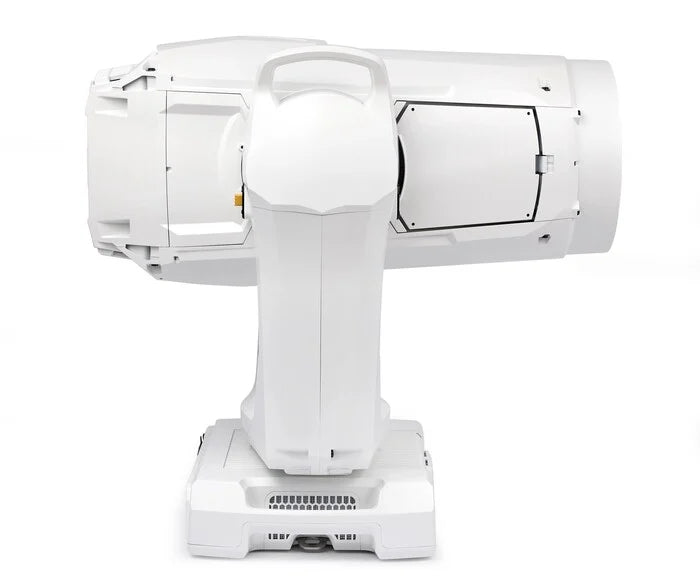

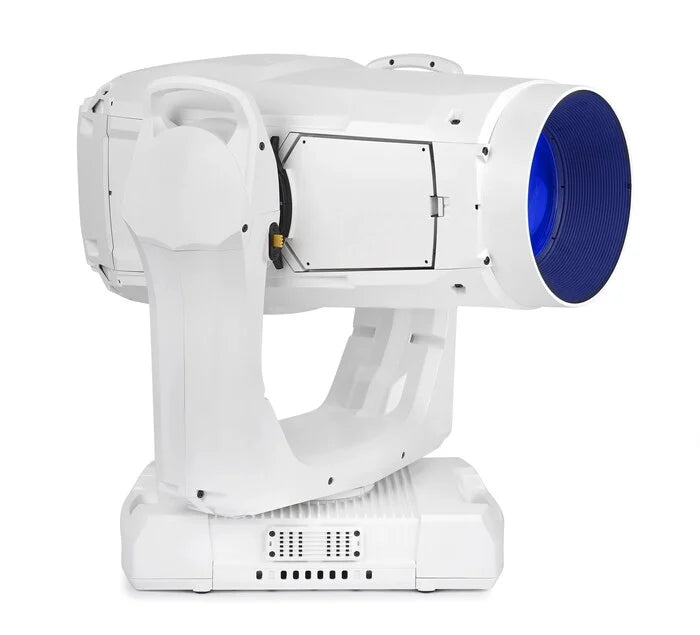

Martin MAC Viper XIP White – IP65 Outdoor Moving Head

Product Overview

The Martin MAC Viper XIP is a high-output IP65 outdoor moving head built for rental, touring, and permanent installations where fixtures are exposed to rain, dust, and temperature swings. A 760 W white LED engine produces 28,000 lumens through a 1:9 zoom, giving system designers framing-grade output without the size, noise, and weight penalties typical of weatherproof moving heads. For integrators specifying a weatherproof moving head light for stages, houses of worship, or architectural entertainment spaces, the Viper XIP delivers full-feature control with year-round environmental protection.

Product Description

The MAC Viper XIP brings the performance of a full-size profile moving head into an IP65-rated chassis rated for continuous outdoor use. Its custom Martin engine of 55 x 22 W white LEDs is tuned to 5800 K and rated beyond 50,000 hours, providing consistent color temperature across long production runs and fixture inventories. The 5.7°–54.0° zoom covers tight aerial beams through broad washes from a single high-output LED moving head, reducing the number of fixture types an integrator must specify and stock.

Martin's XIP water and dust ingress system seals the optics and electronics so the fixture can stay rigged through rain, snow, and dust without external domes or covers. Control is handled over standard 5-pin DMX with RDM, and an optional plug-in Wireless DMX module simplifies cabling for temporary rigs and hard-to-reach installation positions. At 37 kg the fixture is engineered to be lighter than comparable IP65 framing fixtures, easing rigging loads in touring trusses and fixed architectural mounts. This unit is the white-finish version and ships in carton packaging.

Key Features

• IP65 Weather Protection — Martin's XIP water and dust ingress system allows year-round outdoor operation in rain, snow, and dust.
• 28,000-Lumen Output — A 760 W white LED engine delivers high-output projection for long throws and large stages.
• 1:9 Zoom Range — A 5.7°–54.0° field-angle zoom covers narrow aerial beams through wide washes from one fixture.
• Custom White LED Engine — 55 x 22 W white LEDs at 5800 K provide consistent color temperature and a rated life beyond 50,000 hours.
• Flexible DMX Control — Wired 5-pin DMX with RDM plus optional plug-in Wireless DMX simplify cabling in temporary and permanent rigs.
• Touring-Grade Build — A 37 kg weatherproof chassis is engineered to reduce rigging load versus comparable IP65 framing fixtures.

Typical Applications

• House of Worship — Weatherproof output for outdoor campuses, courtyards, and covered stages.
• Auditorium — High-output framing and zoom for large performance venues.
• Broadcast Studio — Consistent 5800 K white output for on-camera lighting.
• Multi-Purpose Room — A single fixture covering beam-to-wash needs in flexible event spaces.

Technical Specifications

Frequently Asked Questions

Is the MAC Viper XIP rated for permanent outdoor installation? Yes. It carries an IP65 rating via Martin's XIP ingress protection, making it suitable for temporary and year-round outdoor use without external enclosures.

What control protocols does it support? The fixture is controlled over 5-pin DMX with RDM, and supports Wireless DMX through an optional plug-in module for installations where cabling is impractical.

How does it integrate into an existing lighting system? As a standard DMX/RDM moving head it integrates with any DMX console or lighting network; consult the Martin fixture profile for your console during commissioning.

What power and rigging should integrators plan for? The fixture uses a 760 W LED engine and weighs 37 kg (81.5 lb); plan truss capacity, safety bonds, and power distribution accordingly.

Is this the white or black version? This listing is the white-finish MAC Viper XIP supplied in carton packaging.

What warranty and support apply? The MAC Viper XIP is covered by Martin by HARMAN's manufacturer warranty. Contact Creation Networks for current warranty terms, registration, and commercial support.
