Martin MAC Aura XIP White – IP54 LED Wash Moving Head
Product Overview

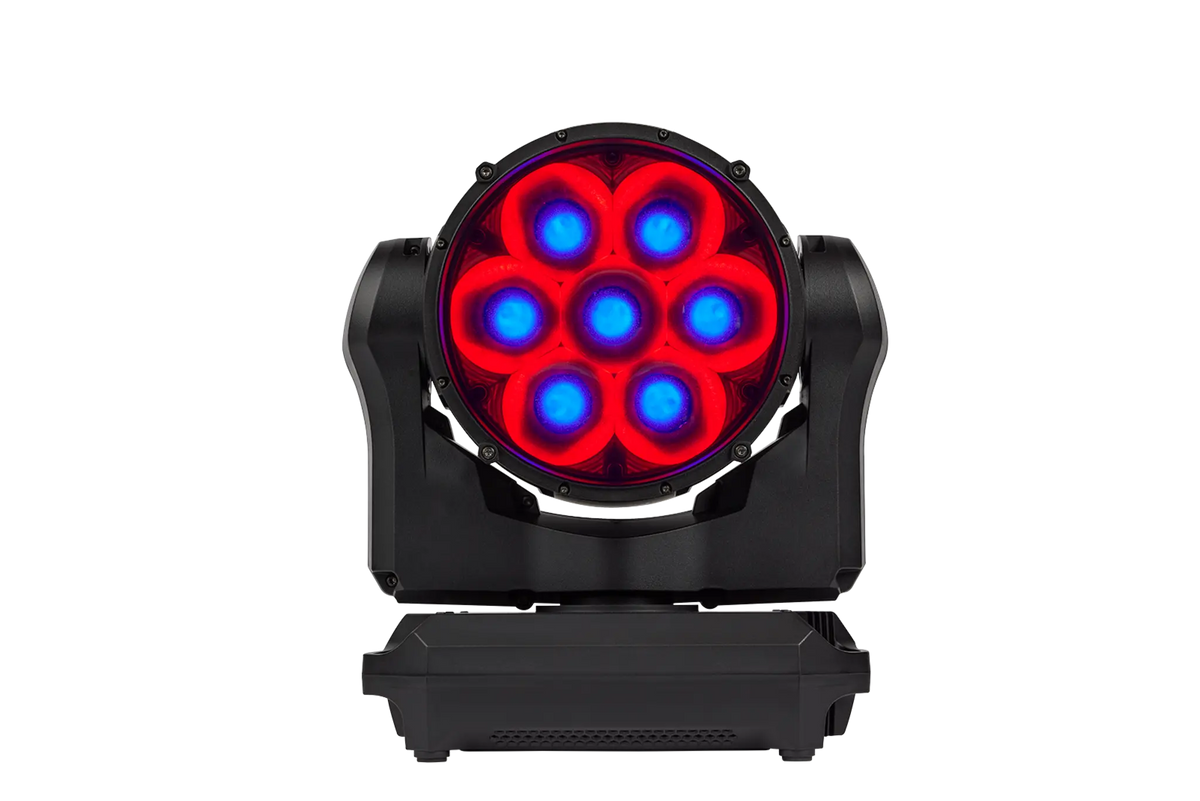

The Martin MAC Aura XIP is an IP54-rated LED wash moving head that brings smart outdoor protection, a pixelated RGBW beam, and a radical new Aura filament effect to touring and installation. A 7 x 60W RGBW beam delivers 6,000 lumens with individually controllable beam pixels, while 12 RGBW Aura filaments create a brighter, iconic backlight. With Art-Net, sACN, and Martin P3 video mapping over Ethernet, this IP-rated wash moving head integrates into advanced networked control and video systems.
Product Description
The MAC Aura XIP reinvents the Aura concept for outdoor-protected and pixel-driven production. Its IP54 rating provides smart outdoor protection without a separate dome, and a pixelated 7 x 60W RGBW beam produces 6,000 lumens with individually addressable beam pixels for dynamic effects. The standout feature is a radical Aura filament effect: 12 individually controllable 4W RGBW filaments deliver a brighter, iconic backlight that can be pixel-mapped. RGBW color mixing covers saturated colors, pastels, and white tones, with Aura color temperature variable from 2,000 K to 12,850 K and green-magenta tint control for precise matching. More than 200 built-in FX macros provide foreground color, background color, speed, and direction control to accelerate programming, while Martin P3 video mapping addresses both beam pixels and Aura filaments with variable crossfade between DMX and video. Connectivity is comprehensive, with Ethernet in and thru supporting Art-Net, sACN, and Martin P3, plus RDM over both DMX and Art-Net. A battery-powered base panel allows addressing and configuration without power, and the 8.95 kg head measures 338 x 380 x 226 mm for manageable rigging. This unit ships in a white finish to blend into light-colored trusses, ceilings, and architectural environments.
Key Features
- IP54 Smart Outdoor Protection — Rated for demanding indoor and protected outdoor use without a separate dome.
- Pixelated 7 x 60W RGBW Beam — Individually controllable beam pixels enable dynamic eye-candy and video effects.

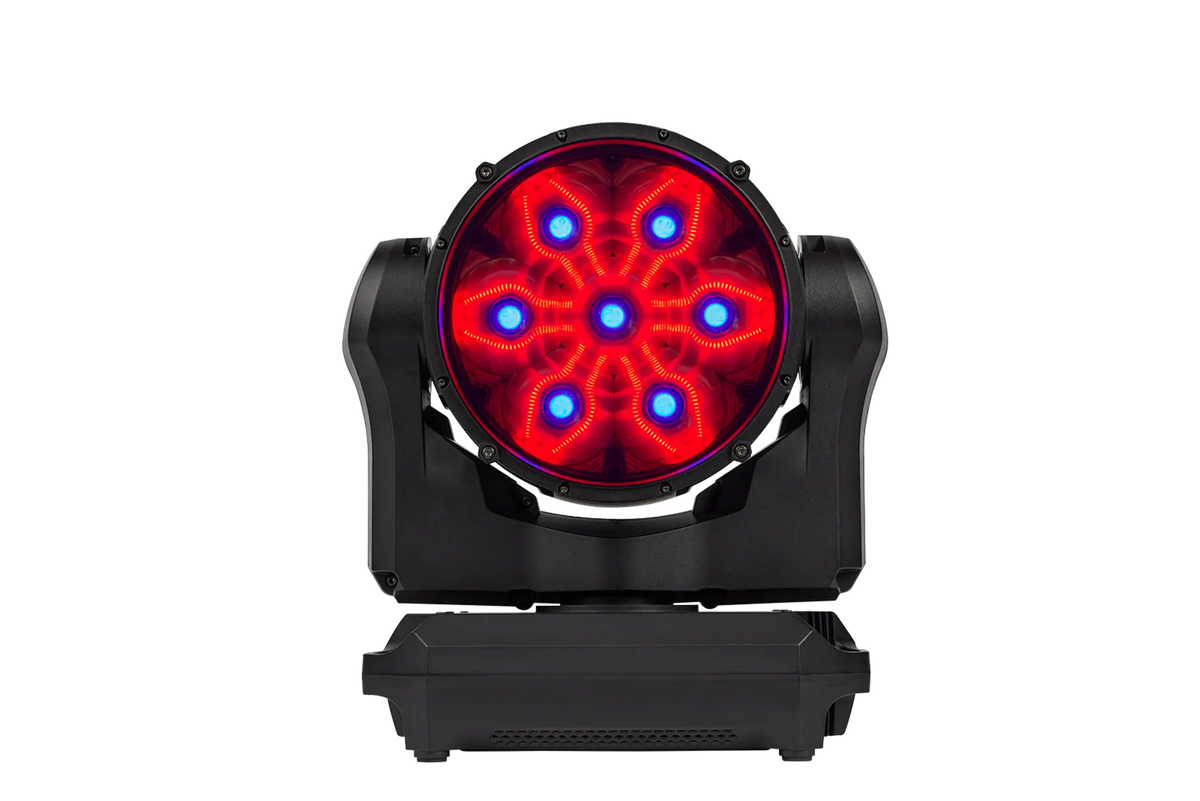

- Radical Aura Filament Effect — 12 individually controllable 4W RGBW filaments create a brighter, iconic Aura backlight.
- P3 Video Mapping — Map video directly to beam pixels and Aura filaments with crossfade between DMX and video control.
- Networked Control — Ethernet in and thru with Art-Net, sACN, and Martin P3, plus RDM over DMX and Art-Net.
- 200+ Built-In FX Macros — Foreground/background color, speed, and direction control speed up programming.
- White Housing Finish — White chassis blends into light-colored trusses, ceilings, and architectural environments.
Typical Applications
- Outdoor and Protected Installations — IP54 rating suits covered exterior stages and architainment.
- Touring and Rental — Networked control and rugged protection for demanding road use.
- Broadcast and Live Events — Pixel beam and Aura effects deliver dynamic on-camera looks.
- House of Worship — High-impact wash and eye-candy with accurate color.
- Auditorium and Arena — Bright, networkable wash coverage for large venues.
Technical Specifications
| Housing color | White |
| Ingress protection | IP54 (smart outdoor protection) |
| Beam light source | 7 x 60 W RGBW LED (pixelated) |
| Aura light source | 12 x 4 W RGBW filament LEDs (individually controllable) |
| Fixture luminous output | 6,000 lumens RGBW |
| Zoom range | 6.3° – 50.4° |
| Aura color temperature | Variable 2,000 – 12,850 K |
| Color mixing | RGBW with full-gamut calibration; green-magenta tint control |
| Effects | 200+ FX macros; beam pixel control; 12-filament Aura pixel mapping; P3 video mapping |
| Control / protocols | DMX/RDM, Art-Net, sACN, Martin P3; RDM over DMX and Art-Net; Ethernet in & thru |
| Pan / Tilt | 16-bit control |
| Dimensions | 338 x 380 x 226 mm |
| Weight | 8.95 kg (19.73 lbs) |
Specifications sourced from Martin (Harman Professional).
Frequently Asked Questions
How does the White version differ from the standard MAC Aura XIP?
It is functionally identical and shares all specifications; only the housing color differs, with a white finish to blend into light-colored trusses and ceilings.
Is the MAC Aura XIP weatherproof?
It carries an IP54 rating for smart outdoor protection, suitable for protected outdoor and demanding indoor environments; follow Martin's guidance for full exposure.
What control protocols does it support?
DMX and RDM plus Art-Net, sACN, and Martin P3 over Ethernet (in and thru), including RDM over Art-Net.
Can it be used for video mapping?
Yes. Martin P3 video mapping addresses both beam pixels and Aura filaments, with variable crossfade between DMX and video control.
What is the Aura filament effect?
Twelve individually controllable 4W RGBW filaments produce a brighter, iconic Aura backlight that can be pixel-mapped for dynamic looks.
What warranty and support are available?
Martin fixtures carry the manufacturer's limited warranty, and Creation Networks supports integrators with specification and procurement.
