Martin Exterior Projection Pro Compact – IP66 Outdoor Image Projector, White

Product Overview

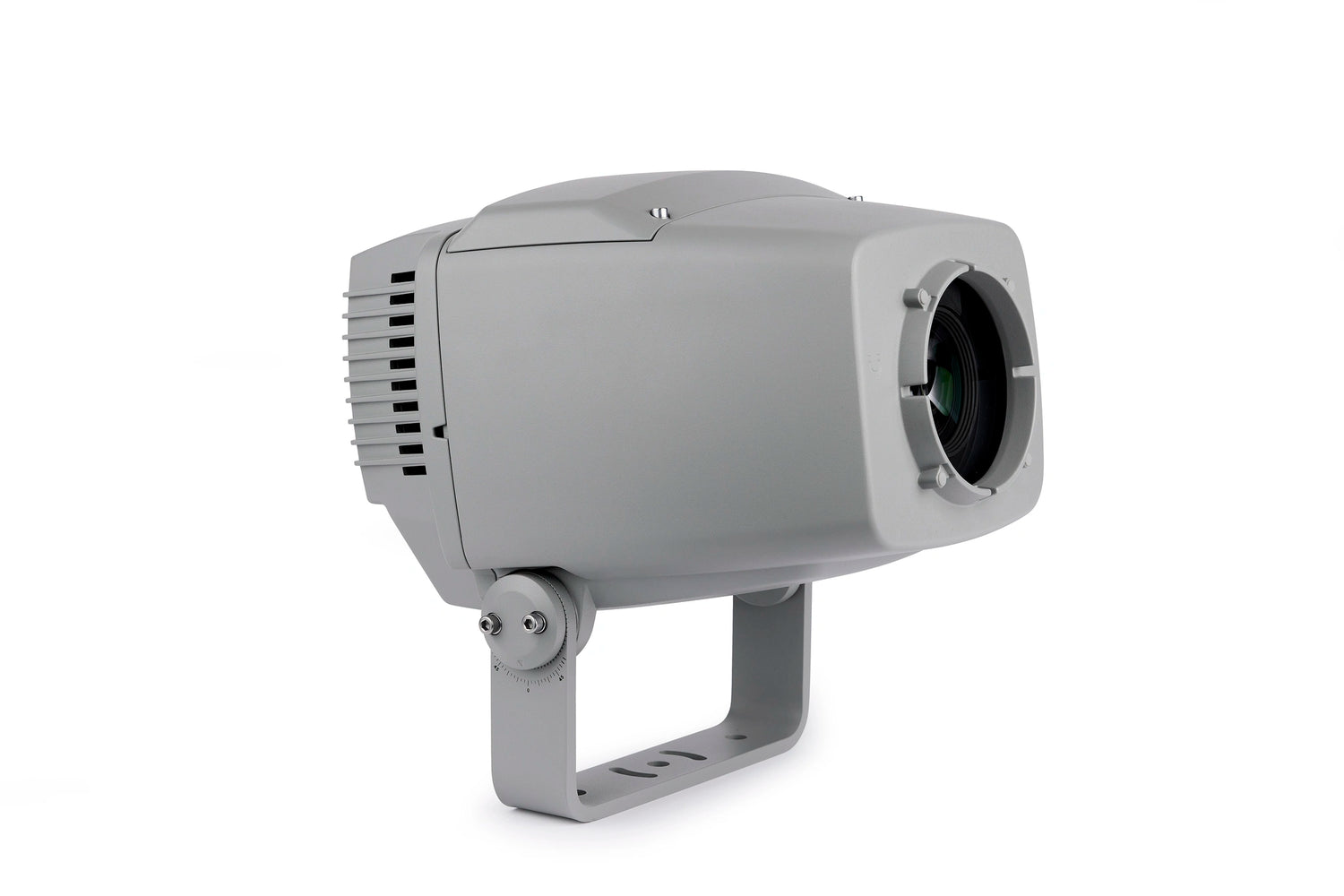

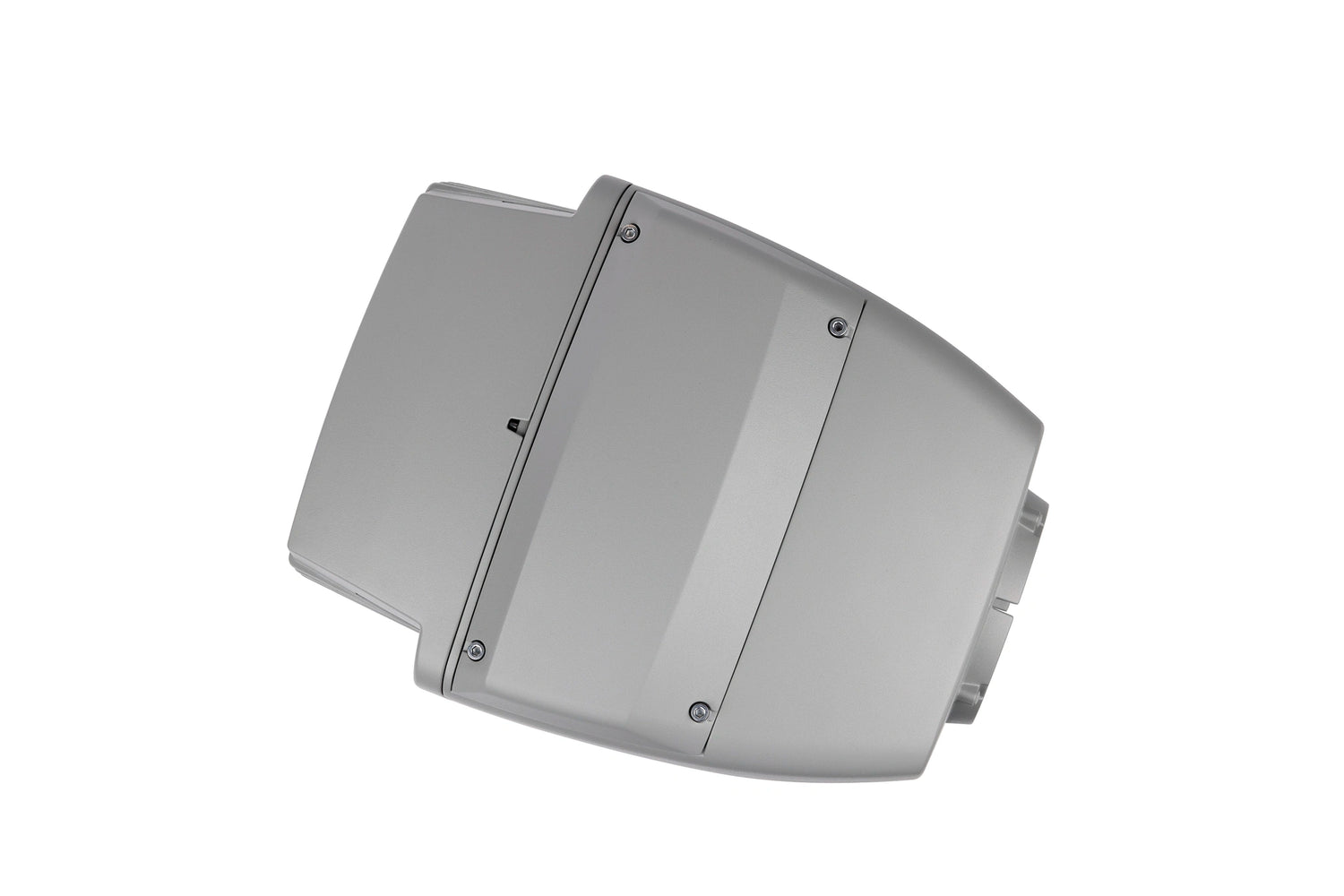

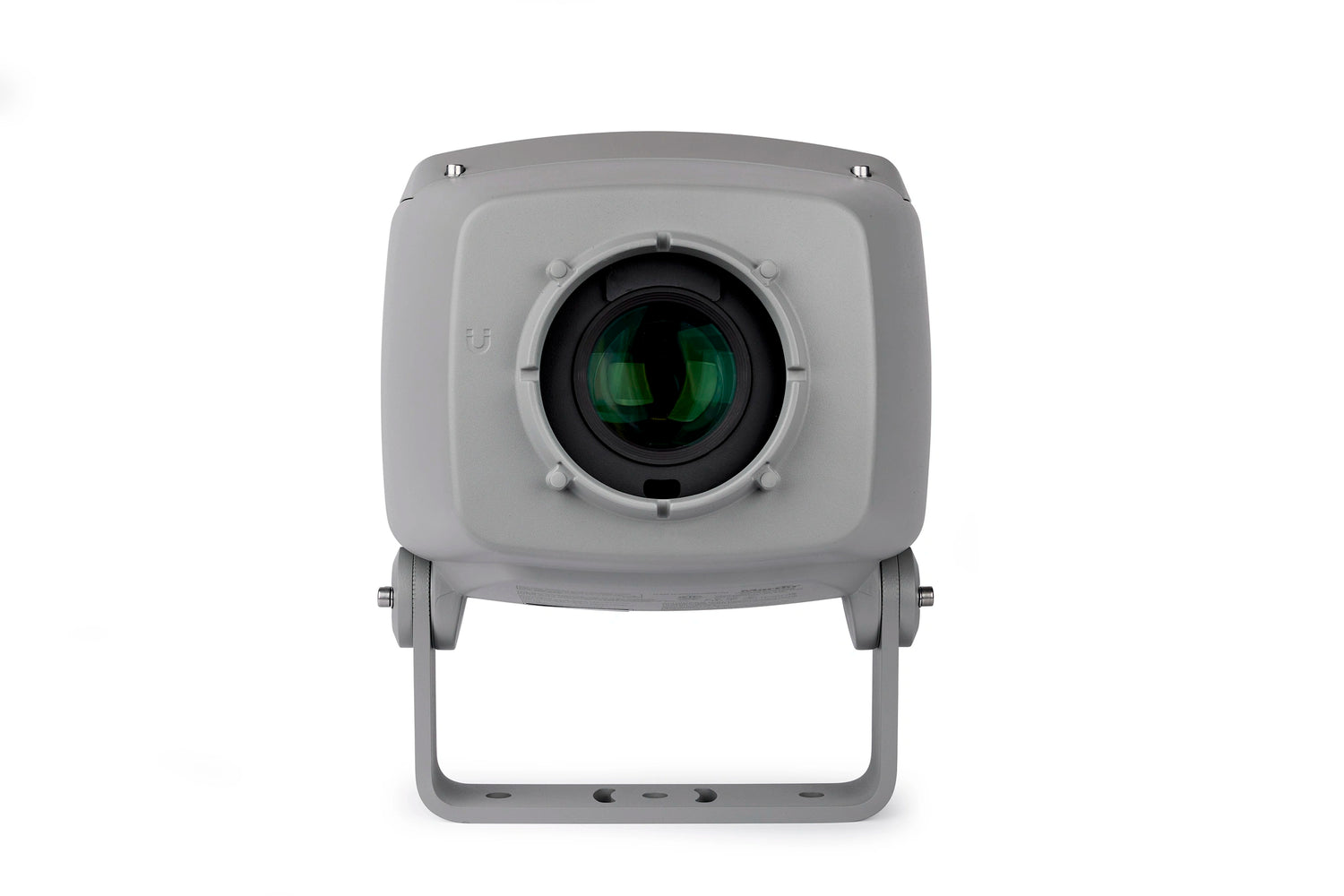

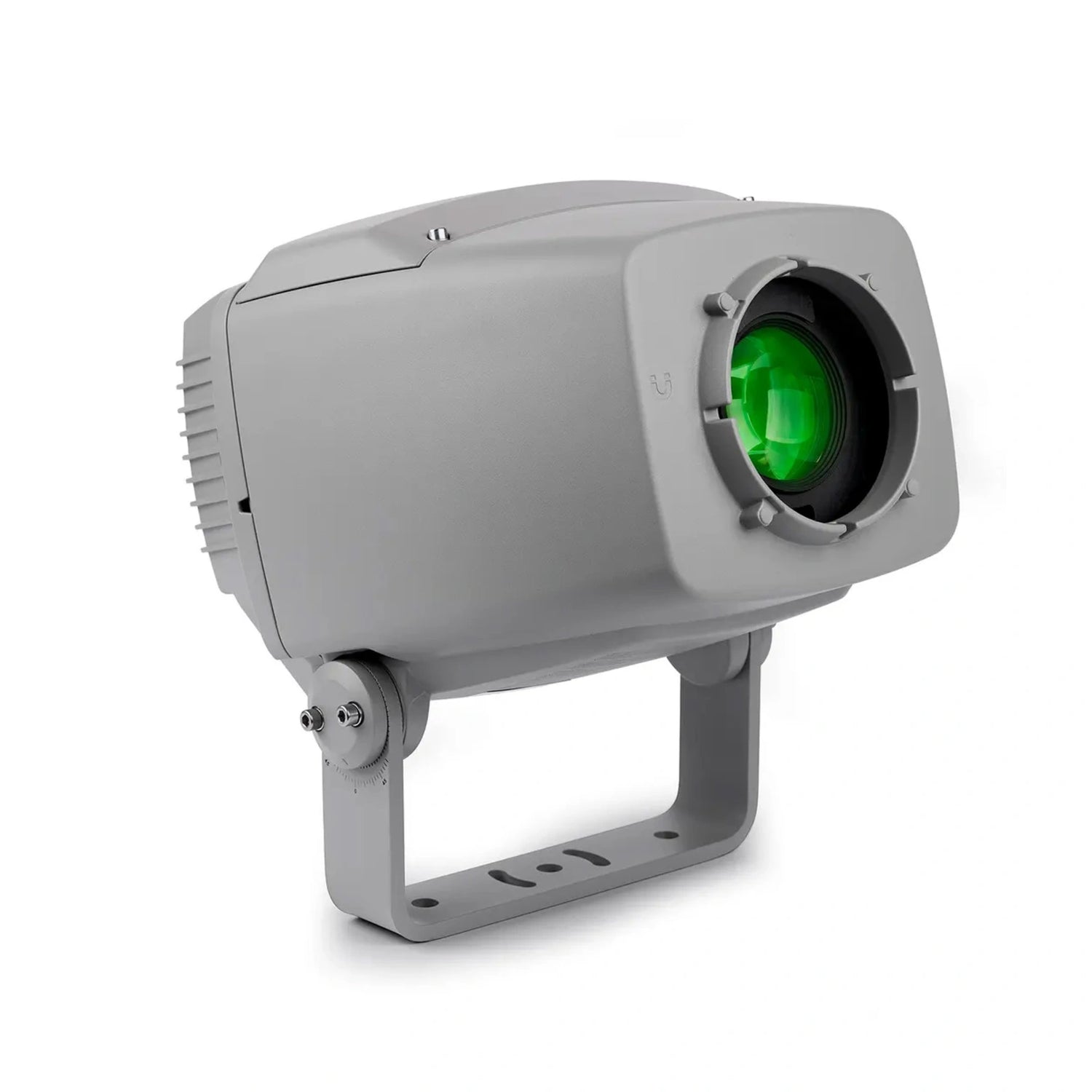

The Martin Exterior Projection Pro Compact (Traffic White RAL 9016) is a next-generation outdoor image projector designed for architectural, façade, and landscape applications requiring precise, high-output gobo projection. Rated IP66, IK08, and C5 corrosion resistance, it is engineered for permanent outdoor installation in the most demanding environments. Delivering 5,200 lumens across the full 15°–45° motorized zoom range, the fixture provides consistent flat-field, high-contrast imagery at any projection angle. The white finish integrates discreetly into light-colored architectural surfaces and structures.

Product Description

The Exterior Projection Pro Compact features a modular design with 11 configurable options and up to four layers of effects — including zoom, focus, color, gobos, and animation — making it one of the most versatile permanent outdoor projectors available. The built-in motorized zoom adjusts the field angle from 15° to 45° without any optical compromise, maintaining full lumen output throughout the range. A dedicated hibernation power mode, activated via DMX, reduces consumption to just 3W when the fixture is not in active use, significantly lowering the operational energy footprint across multi-fixture installations.

Optional modules include a manual framing module with four independently adjustable blades for precise façade masking, a four-gobo wheel module for ABCD selection with indexing and variable rotation, a single gobo holder with indexing and rotation, and an animation module with continuous variable-speed rotation. Control is via DMX-512A and RDM (ANSI E1.20), with stand-alone capability for up to 20 scenes. A magnetic sensor allows local diagnostics and focus adjustment without a controller. Power and data connections are housed in a dedicated weatherproof compartment with IP68 cable glands. The cast aluminum housing features a 5mm anti-reflection coated tempered front glass and is backed by Martin's 5-year warranty.

Key Features

• 5,200 Lumens Across Full Zoom Range — Consistent flat-field high-contrast output from 15° to 45° without lumen drop.
• IP66 / IK08 / C5 Rated Housing — Fully weatherized cast aluminum construction for permanent outdoor and coastal installation.
• Modular Effect System — Up to four layers of effects; choose from manual framing, animation, single gobo, or four-gobo modules.
• Motorized Zoom and Focus — 15°–45° field angle with motorized focus from 3m to infinity, controllable via DMX.
• Hibernation Power Mode — 3W standby consumption via DMX command reduces operational energy costs across large installations.
• 5-Color Wheel + Open — Dichroic red, green, blue, yellow, and CTO filters plus open position for full-color architectural effects.
• DMX / RDM / Stand-Alone — Supports DMX-512A, ANSI E1.20 RDM, and 20-scene stand-alone programming via Martin Companion.
• 5-Year Warranty — Full manufacturer warranty on all Exterior Range fixtures for permanent installation confidence.

Typical Applications

• Building façade gobo projection
• Architectural landscape feature lighting
• Permanent outdoor entertainment venue projection
• Hotel, resort, and hospitality exterior branding
• Public art installations and civic landmark illumination
• Retail and commercial exterior displays

Technical Specifications

FAQs

What is the IP rating of the Exterior Projection Pro Compact?

The fixture is rated IP66, meaning it is fully protected against powerful water jets from any direction. It also carries IK08 impact resistance and C5 (marine-grade) corrosion resistance, making it suitable for coastal and harsh-environment permanent installations.

Can the fixture be pole-mounted or surface-mounted?

Yes. The adjustable yoke allows mounting in any orientation except horizontal angles above 70°. Its compact footprint and lightweight design facilitate pole mounting and integration into diverse architectural setups.

What optional accessory modules are available?

Four optional modules are available: Manual Framing Module (MAR-90560260), Animation Module (MAR-90560261), One Gobo Holder Module (MAR-90560262), and Four Gobo Wheel Module (MAR-90560263). All are field-installable via the service lid.

What gobo size does this fixture accept?

It accepts D19 gobos: 19.0mm outer diameter (+0/-0.3mm), maximum 15mm image diameter. Suitable materials include borosilicate glass and aluminum gobos within specified thickness ranges.

Does the fixture support RDM?

Yes. Full RDM (ANSI/ESTA E1.20) support is included for remote addressing, configuration, and status reporting over the DMX line.

What is the warranty coverage?

Martin provides a full 5-year warranty on the Exterior Projection Pro Compact for permanent outdoor installation use.

What power wiring is required?

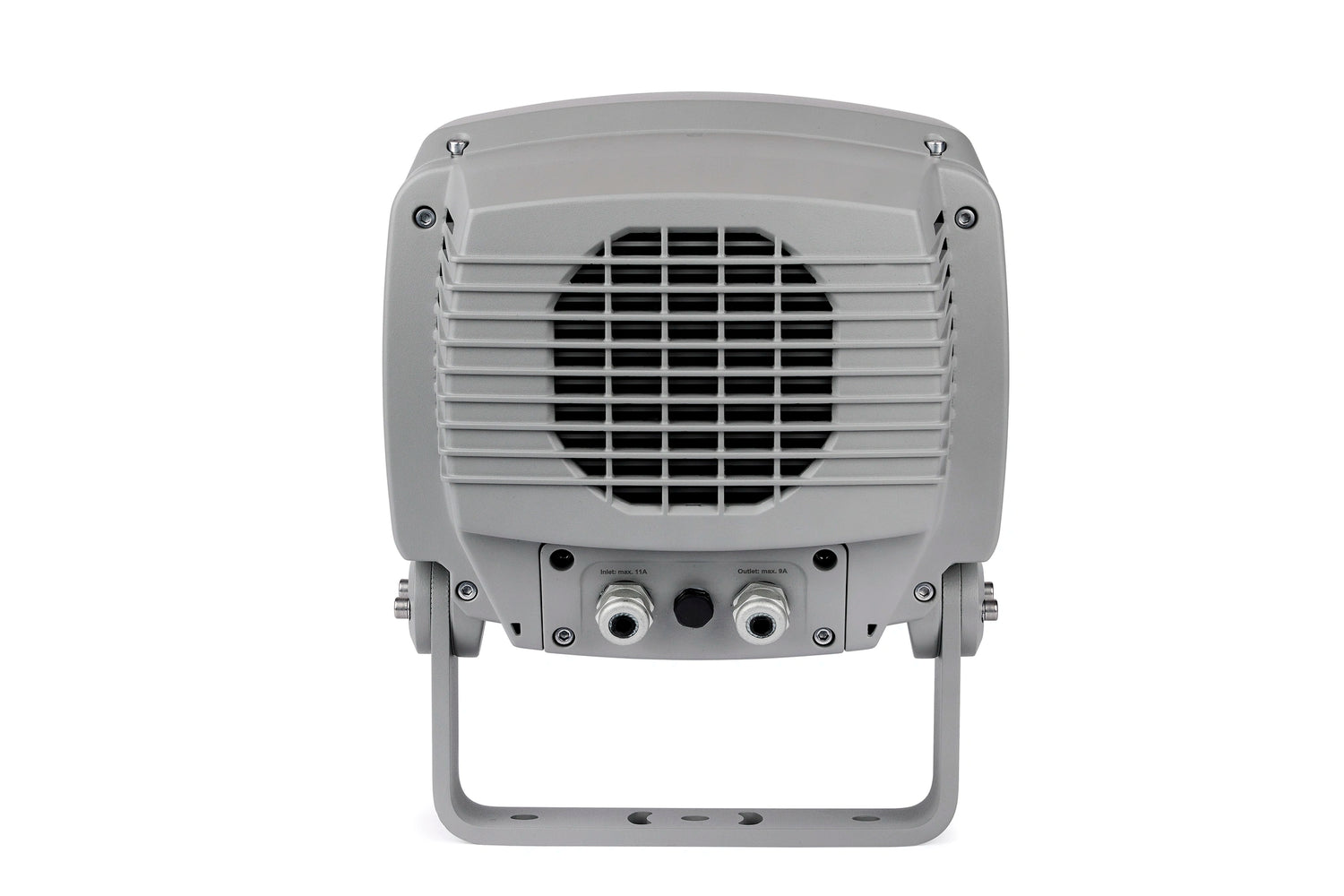

Power connects via terminal block in a dedicated weatherproof compartment with an IP68 cable gland accepting 8–12mm cable diameter. The fixture accepts 100–240/277V AC, 50/60Hz auto-ranging with no configuration required.

Can multiple fixtures be daisy-chained for DMX?

Yes. Data connections use terminal blocks in the dedicated weatherproof compartment. An optional PD Hybrid cable solution (MAR-91700019/20/22) enables easy power and DMX daisy-chaining for large installations.
