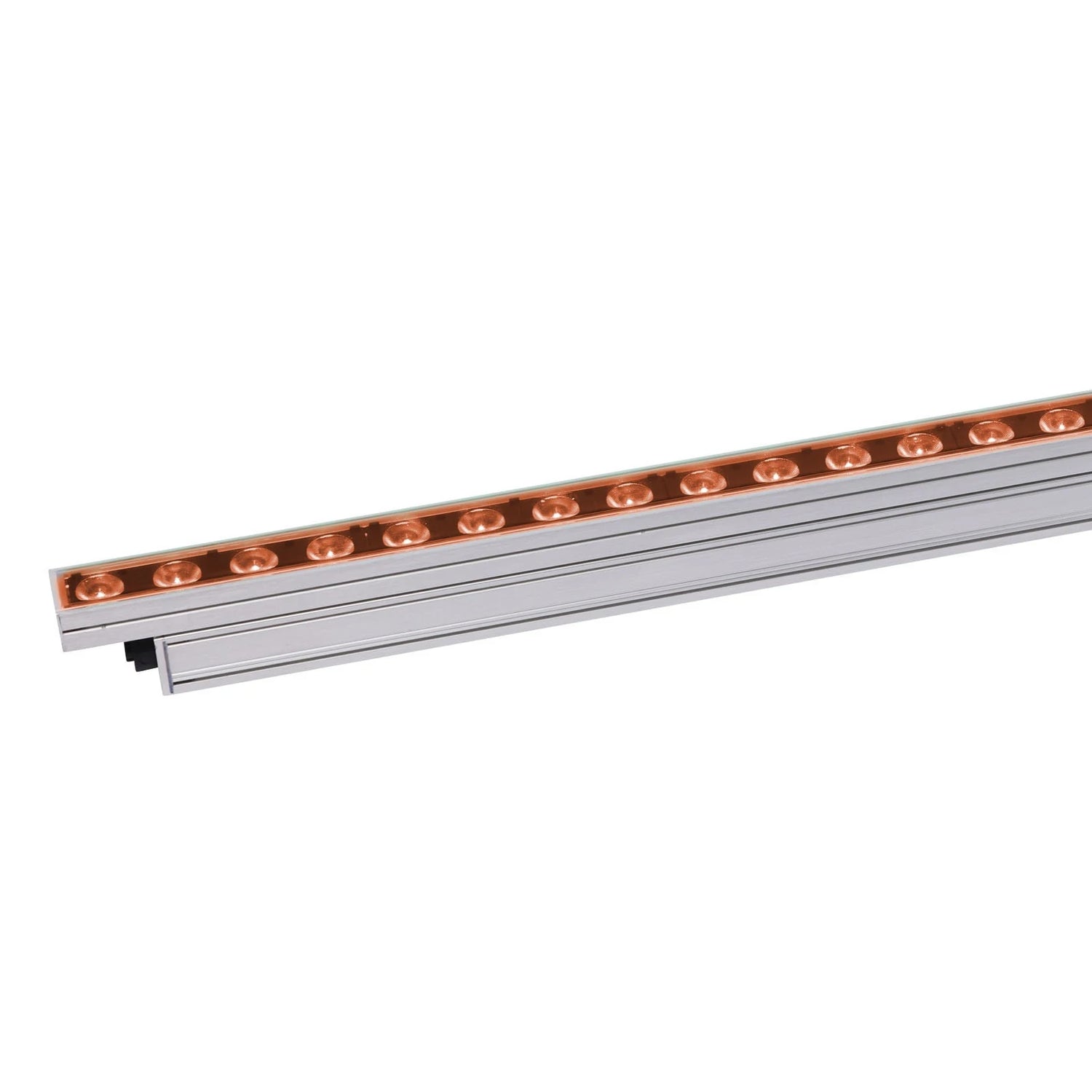

Martin Exterior Linear Pro-Graze QUAD 4ft – IP66 Outdoor Linear Graze Fixture

Product Overview

The Martin Exterior Linear Pro-Graze QUAD 4ft is a permanent outdoor architectural linear wash fixture designed for grazing illumination of walls, columns, textured stone, and building facades. Featuring RGBW color-calibrated QUAD LEDs at 8 LEDs per foot with a 15° narrow beam angle, it delivers precision directional output for facade wash and texture-highlighting applications. Rated IP66, IK08, and C5 corrosion resistance, it operates across the full -30°C to +45°C temperature range and is backed by a 5-year Martin warranty. With an efficacy of 54 lm/W and ASHRAE-compliant 5W/ft power mode, it serves both high-performance and energy-constrained architectural LED installations.

Product Description

The Exterior Linear Pro-Graze QUAD features RGBW QUAD LEDs with Full Gamut Color Calibration (1-step MacAdam ellipse) for consistent color reproduction across all fixtures in a system. A dedicated color temperature control channel provides tunable white output from 1,800K to 12,000K, enabling the fixture to serve both warm accent and cool daylight applications from a single SKU. Selectable segment control modes divide the 4ft fixture into 1, 4, or 8 independently addressable segments for fine pixel mapping and creative effects.

Power is selectable at 12W, 10W, or 5W per foot, with the 5W/ft mode qualifying for ASHRAE compliance on linear facade lighting projects. An integrated multi-range PSU accepts 100–277V AC for global deployment. The hybrid 8-pin power and data connector allows daisy-chained strings up to 42 fixtures (52m) at 230–277V. DMX-512A and RDM control are standard, and up to 20 scenes can be stored for stand-alone operation. Optional accessories include glare shields, louvres, asymmetric diffuser films, and multiple bracket types for flush, adjustable, and quick-mount installation configurations.

Key Features

• RGBW QUAD LEDs, 8/ft — Color-calibrated 1-step MacAdam ellipse binning for uniform color across multi-fixture runs.
• Dedicated CCT Channel — Tunable white from 1,800K to 12,000K via dedicated DMX channel without sacrificing color output.
• Selectable Segment Control — 0.5 ft, 1 ft, or full 4 ft fixture addressing for pixel mapping and effects.
• Three Power Modes — 12W/10W/5W per foot; 5W mode meets ASHRAE facade lighting standards.
• IP66 / IK08 / C5 — Fully weatherized, marine-grade corrosion resistant housing for permanent coastal installation.
• Compact 40mm Width — Low-profile form factor integrates discreetly into coves, extrusions, and mounting channels.
• DMX / RDM / Stand-Alone — Full DMX-512A and ANSI E1.20 RDM control with 20-scene stand-alone capability.
• 5-Year Warranty — Martin's full exterior-rated warranty for permanent architectural lighting installations.

Typical Applications

• Building facade graze and wash lighting
• Column, pillar, and architectural surface accent
• Outdoor commercial and retail exterior illumination
• Permanent architectural installation in hotels, airports, and civic buildings
• Landscape wall and feature lighting
• Bridge and infrastructure architectural accent

Technical Specifications

FAQs

What is the IP rating of the Exterior Linear Pro-Graze QUAD?

The fixture is rated IP66 (protection against powerful water jets from any direction), IK08 (impact resistance), and C5 marine-grade corrosion resistance per ISO 12944-6, making it suitable for permanent coastal and marine environment installations.

How does segment control work on the 4ft version?

The 4ft fixture can be operated as a single channel, split into 4 segments (each ~1 ft), or split into 8 segments (each ~0.5 ft) for pixel mapping. DMX channel count scales accordingly: 6 channels (standard), up to 24 channels (8-segment mode).

Can this fixture meet ASHRAE energy standards?

Yes. When operated in the 5W/ft power mode, the Exterior Linear Pro-Graze QUAD meets ASHRAE facade lighting energy standards. This mode is selectable via DMX without hardware modification.

How many fixtures can be daisy-chained?

Up to 42 4ft fixtures (52m / 169ft total) can be daisy-chained from a single supply at 230–277V using the hybrid 8-pin PD connectors. Maximum total string length including cable is 150m / 328ft.

What accessories are available for beam control?

Optional accessories include glare shields (1ft/4ft), louvres for QUAD, and asymmetric diffuser films (wide and narrow) that modify the 15° beam to 15°×30° or 15°×60° for asymmetric wash coverage.

What mounting options are available?

Three bracket types are available: adjustable bracket (MAR-90570025), flange bracket (MAR-90570026), and quick-mount bracket (MAR-90570027), each sold in sets of 10.

What is the warranty?

Martin provides a 5-year warranty on all Exterior Linear Pro fixtures for permanent architectural installation use.
