Product Overview

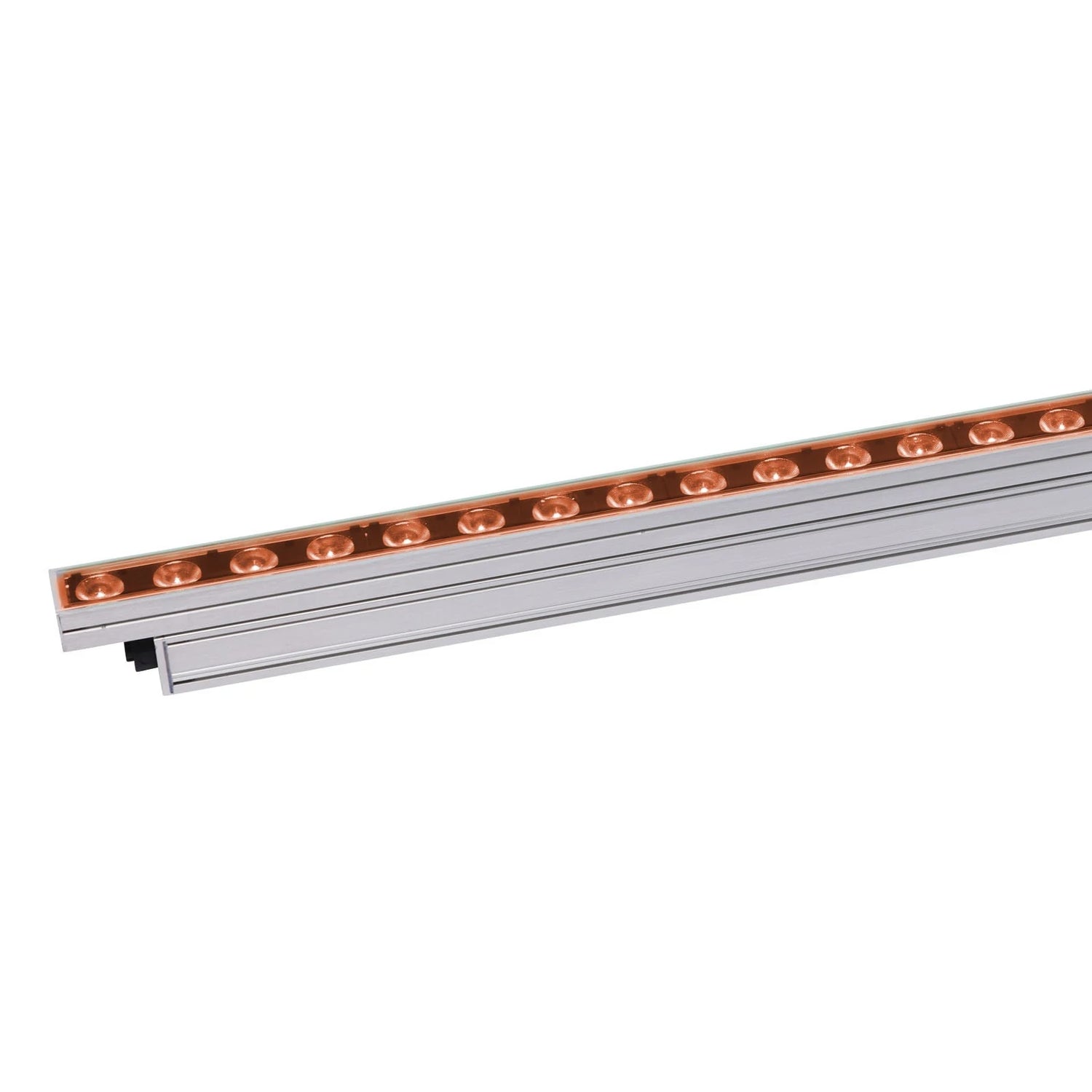

The Martin Exterior Linear Pro-Graze QUAD 1ft is the compact 1-foot version of the Exterior Linear Pro-Graze QUAD family — a permanent outdoor architectural linear fixture for grazing illumination of walls, facades, columns, and textured surfaces. It features the same RGBW QUAD LED engine (8 LEDs/ft) and 15° narrow beam angle as the 4ft version, in a short-run segment suitable for tight installations, fill lighting, and modular configurations. Rated IP66, IK08, and C5 corrosion resistance, and backed by Martin's 5-year warranty.
Product Description
The 1ft Graze QUAD shares all platform specs with the 4ft version: RGBW QUAD LEDs with Full Gamut Color Calibration (1-step MacAdam ellipse), dedicated CCT channel (1,800K–12,000K), and selectable power modes (12W/10W/5W per foot). Segment control on the 1ft version provides 1 or 2 segment addressing. The hybrid 8-pin PD connector enables daisy-chaining within long fixture runs. DMX-512A and RDM are standard with 20-scene stand-alone capability.
Key Features
- RGBW QUAD LEDs, 8/ft, 15° Beam — Narrow graze output in a 1ft format for tight and modular installations.
- Dedicated CCT Channel — Tunable white from 1,800K to 12,000K via dedicated DMX channel.
- IP66 / IK08 / C5 — Full weatherization and marine-grade corrosion resistance.
- Daisy-Chainable — Hybrid 8-pin PD connector for integration into longer EL Pro fixture runs.
- DMX / RDM / Stand-Alone — Full control compatibility with the EL Pro ecosystem.
- Compact Form Factor — 312mm (1.02 ft) length for tight coves, steps, and fill positions.
Technical Specifications
| Light Source | 8 × RGBW LEDs per foot (QUAD) |
| LED Lifetime | Min. 50,000 hours |
| CCT Range | 1,800K – 12,000K |
| Luminous Output (1ft @ 12W) | 700 lm @ 6000K | 670 lm @ 4000K | 620 lm @ 2700K |
| Beam Angle | 15° (standard); 15°×30°, 15°×60° (with asymm. diffuser) |
| Segment Modes | 1 ft / 0.5 ft (1seg/2seg) |
| DMX Channels (1ft) | 6 / 4 / 3 / 6 (standard/RAW/1seg/2seg) |
| Power Consumption (1ft) | Max: 12W / 10W / 5W |
| AC Input | 100–277V AC, 50/60Hz |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 |
| Corrosion Resistance | C5 (ISO 12944-6) |
| Dimensions | 312 × 40 × 68 mm (1.02 ft × 1.57 in. × 2.67 in.) |
| Weight | 0.85 kg (1.9 lbs) |
| Warranty | 5 years |
