Product Overview

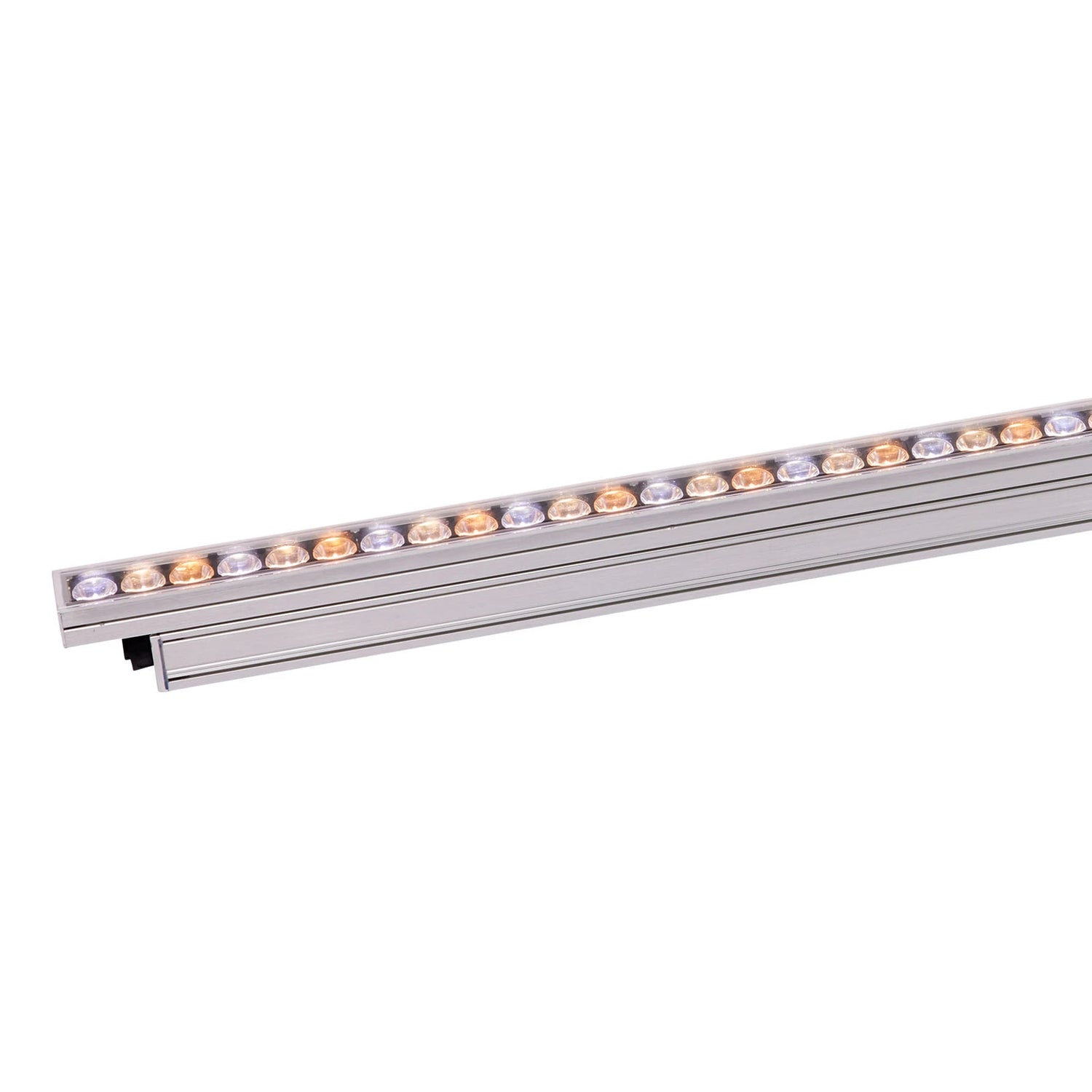

The Martin Exterior Linear Pro-Graze CTC 1ft is the compact 1-foot color temperature control graze fixture in the Exterior Linear Pro family. Using 12 warm, neutral, and cool white LEDs per foot (2700K, 4000K, 6500K) with a 9° ultra-narrow beam, it delivers the highest per-foot lumen output (up to 900 lm @ 4000K) in a short-segment format for modular architectural graze installations. Rated IP66, IK08, C5, and backed by Martin's 5-year warranty.
Key Features
- 12 LEDs/ft, 9° Beam, 3-Channel White — Highest lumen output in EL Pro, in a 1ft fill/modular format.
- CCT Range 2700K–6500K — Precise tunable white graze control.
- ASHRAE-Compatible 5W/ft Mode — DMX-selectable for energy compliance.
- IP66 / IK08 / C5 — Permanent outdoor and coastal installation.
- Compact 312mm Length — For fill and modular configurations.
Technical Specifications
| Light Source | 12 LEDs per foot (2700K, 4000K, 6500K) |
| LED Lifetime | Min. 50,000 hours |
| CCT Range | 2,700K – 6,500K |
| Luminous Output (1ft @ 12W) | 900 lm @ 4000K | 850 lm @ 6500K | 790 lm @ 2700K |
| Beam Angle | 9° (standard); 9°×30°, 9°×60° (with lens film) |
| DMX Channels (1ft) | 3 / 6 / 3 (standard/1seg/2seg) |
| Power Consumption (1ft) | Max: 12W / 10W / 5W |
| AC Input | 100–277V AC, 50/60Hz |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 |
| Corrosion Resistance | C5 (ISO 12944-6) |
| Dimensions | 312 × 40 × 68 mm (1.02 ft × 1.57 in. × 2.67 in.) |
| Weight | 0.85 kg (1.9 lbs) |
| Warranty | 5 years |
