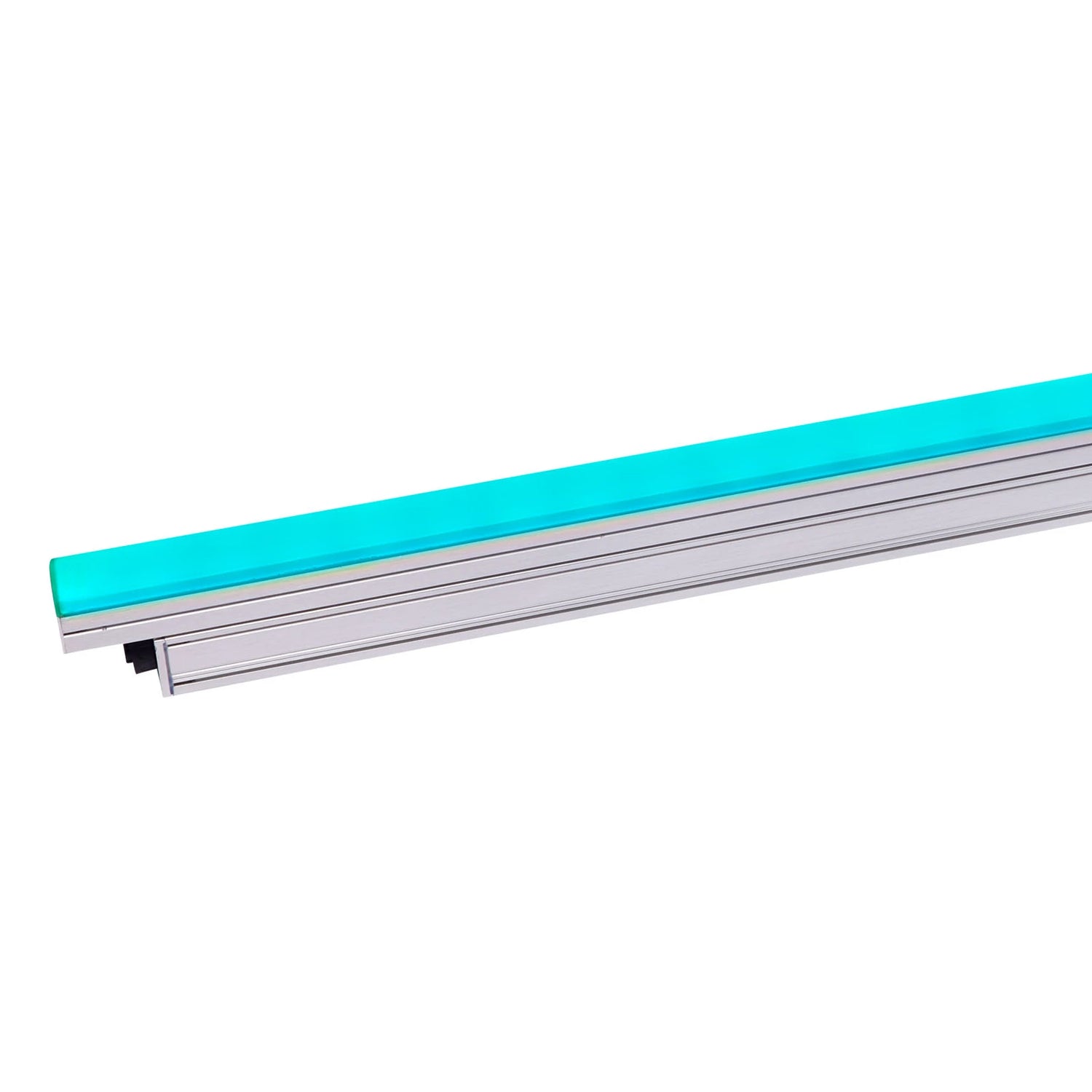

Martin Exterior Linear Pro-DV QUAD 1ft – IP66 Outdoor Direct View Linear Fixture
Martin Exterior Linear Pro-DV QUAD 1ft – IP66 Outdoor Direct View Linear Fixture is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Martin Exterior Linear Pro-DV QUAD 1ft – IP66 Outdoor Direct View L...
Product Overview
The Martin Exterior Linear Pro-DV QUAD 1ft is the compact 1-foot direct-view format of the Exterior Linear Pro family, delivering RGBW color output with a 180° wide beam and round diffuser for applications where the light source is visible as a design element. Shares the same IP66, IK08, and C5-rated housing platform as all EL Pro fixtures, with selectable power modes (12W/10W/5W per foot) and Full Gamut Color Calibration. Backed by Martin's 5-year warranty.
Key Features
- 180° Direct View Beam, Round Diffuser — Wide soft output in a 1ft format for edge lighting, stair markers, and feature accents.
- RGBW QUAD LEDs, 8/ft — Color-calibrated for consistent appearance across fixture runs.
- Dedicated CCT Channel — Tunable white from 1,800K to 12,000K.
- IP66 / IK08 / C5 — Full weatherization for permanent outdoor architectural installation.
- Compact 312mm Length — For tight fills, modular configurations, and architectural edges.
Technical Specifications
| Light Source | 8 × RGBW LEDs per foot (QUAD) |
| LED Lifetime | Min. 50,000 hours |
| CCT Range | 1,800K – 12,000K |
| Luminous Output (1ft @ 12W) | 440 lm @ 6000K | 400 lm @ 4000K | 350 lm @ 2700K |
| Beam Angle | 180° |
| Segment Modes | 1 ft / 0.5 ft (1seg/2seg) |
| DMX Channels (1ft) | 6 / 4 / 3 / 6 (standard/RAW/1seg/2seg) |
| Power Consumption (1ft) | Max: 12W / 10W / 5W |
| AC Input | 100–277V AC, 50/60Hz |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 |
| Corrosion Resistance | C5 (ISO 12944-6) |
| Dimensions | 312 × 40 × 84 mm (1.02 ft × 1.57 in. × 3.31 in.) |
| Weight | 0.85 kg (1.9 lbs) |
| Warranty | 5 years |
